| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7914G-1-024SWITCH TACTILE SPST-NO 0.1A 16V |
2,767 |
|
Datasheet |
7914 | Tube | Active | SPST-NO | Off-Mom | Flush | Surface Mount | 2.62mm | 0.1A @ 16VAC/DC | - | Top Actuated | Gull Wing | 5.00mm x 5.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | - | -55°C ~ 125°C |
|
|
7914G-1-032SWITCH TACTILE SPST-NO 0.1A 16V |
1,768 |
|
Datasheet |
7914 | Tube | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.43mm | 0.1A @ 16VAC/DC | - | Top Actuated | Gull Wing | 5.00mm x 5.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | - | -55°C ~ 125°C |
|

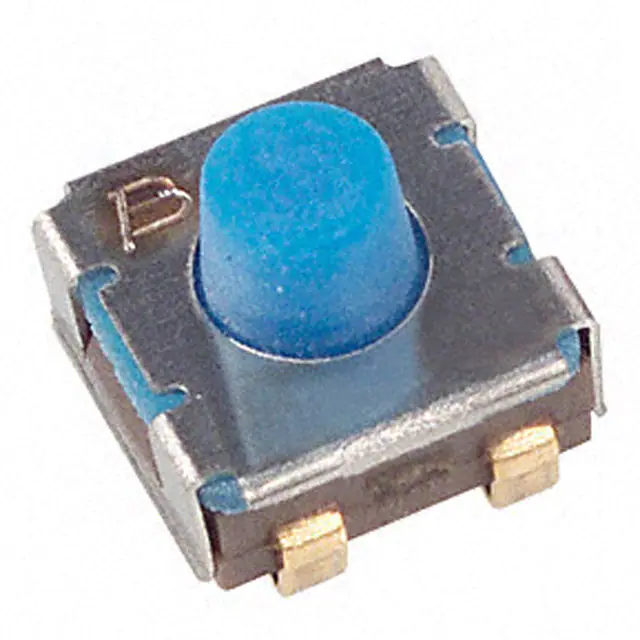

7914J-1-024SWITCH TACTILE SPST-NO 0.1A 16V |
3,540 |
|
Datasheet |
7914 | Tube | Active | SPST-NO | Off-Mom | Flush | Surface Mount | 2.62mm | 0.1A @ 16VAC/DC | - | Top Actuated | J Lead | 5.00mm x 5.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | - | -55°C ~ 125°C |
|
TL1015BF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
3,395 |
|
Datasheet |
TL1015 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | Standard | Surface Mount | 2.00mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 3.90mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | Board Guide | -20°C ~ 70°C |
|

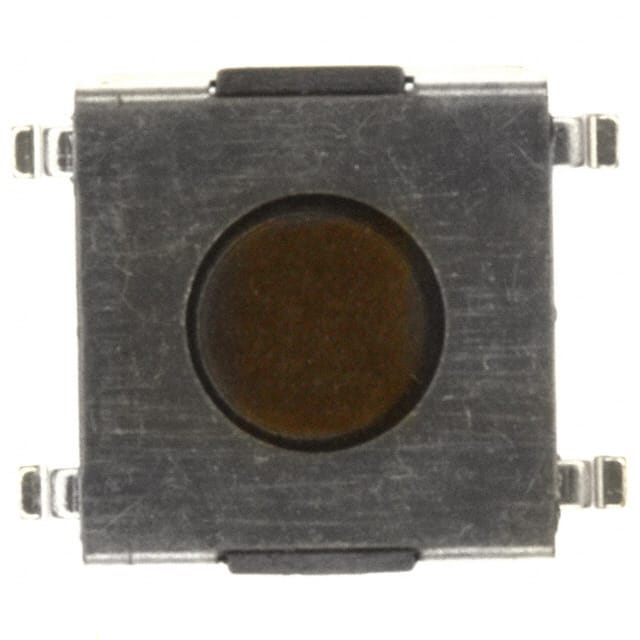

TL3303F100QGSWITCH TACTILE SPST-NO 0.05A 12V |
1,356 |
|
Datasheet |
TL3303 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.10mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.20mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
TL3301BF160RJSWITCH TACTILE SPST-NO 0.05A 12V |
3,597 |
|
Datasheet |
TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 9.50mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
ADTSM24RVTRSWITCH TACTILE SPST-NO 0.05A 12V |
4,915 |
|
Datasheet |
ADTS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 7.30mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -25°C ~ 70°C |
|

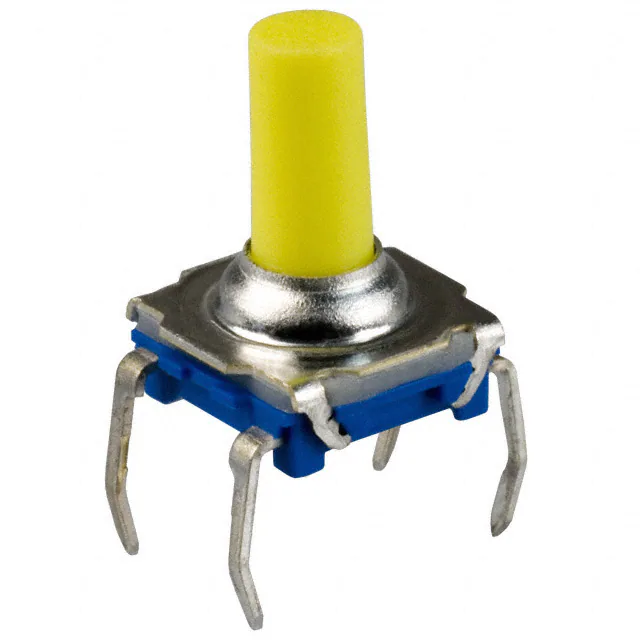

KSL0M511LFTSWITCH TACTILE SPST-NO 0.05A 32V |
3,890 |
|
Datasheet |
KSL | Bulk | Obsolete | SPST-NO | Off-Mom | Standard | Through Hole | 9.90mm | 0.05A @ 32VDC | - | Top Actuated | PC Pin | 7.40mm x 7.40mm | Non-Illuminated | IP60 - Dust Tight | - | 500gf | - | - | -40°C ~ 90°C |
|
EVQ-P4203MSWITCH TACTILE SPST-NO 0.02A 15V |
4,784 |
|
Datasheet |
EVQP4 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | Rectangular Button | Edge Mount, Right Angle | - | 0.02A @ 15VDC | 2.10mm | Side Actuated | SMD (SMT) Tab | 6.20mm x 2.55mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
EVQ-P4403MSWITCH TACTILE SPST-NO 0.02A 15V |
4,177 |
|
Datasheet |
EVQP4 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | Rectangular Button | Edge Mount, Right Angle | - | 0.02A @ 15VDC | 2.10mm | Side Actuated | SMD (SMT) Tab | 6.20mm x 2.55mm | Non-Illuminated | - | - | 240gf | - | - | -40°C ~ 85°C |
|
|
EVQ-P4603MSWITCH TACTILE SPST-NO 0.02A 15V |
1,533 |
|
Datasheet |
EVQP4 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | Rectangular Button | Edge Mount, Right Angle | - | 0.02A @ 15VDC | 2.10mm | Side Actuated | SMD (SMT) Tab | 6.20mm x 2.55mm | Non-Illuminated | - | - | 350gf | - | - | -40°C ~ 85°C |
|
TL6700AF260QJSWITCH TACTILE SPST-NO 0.05A 12V |
2,136 |
|
Datasheet |
TL6700 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.40mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 6.90mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Process Sealed | -20°C ~ 70°C |
|
TL6700NF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
1,082 |
|
Datasheet |
TL6700 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Flush | Surface Mount | 2.60mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.90mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Process Sealed | -20°C ~ 70°C |
|
TL6700NF260QGSWITCH TACTILE SPST-NO 0.05A 12V |
2,001 |
|
Datasheet |
TL6700 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Flush | Surface Mount | 2.60mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.90mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Process Sealed | -20°C ~ 70°C |
|
|
KSJ0V211 80SH CONN 3.3 LFTRSWITCH TACTILE SPST-NO |
1,760 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
95C06A6GWTSWITCH TACTILE SPST-NO 0.05A 12V |
1,797 |
|
Datasheet |
95C | Tube | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.30mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 520gf | - | Tactile Feedback | -25°C ~ 70°C |
|
|
95C06E3GWTSWITCH TACTILE SPST-NO 0.05A 12V |
2,706 |
|
Datasheet |
95C | Tube | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 13.00mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -25°C ~ 70°C |
|
SMTE3-01E-ZSWITCH TACTILE SPST-NO 0.03A 24V |
3,139 |
|
Datasheet |
SMTE3 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.50mm | 0.03A @ 24VDC | - | Top Actuated | J Lead | 7.00mm x 6.80mm | Non-Illuminated | - | - | 200gf | - | Washable | -25°C ~ 70°C |
|
|
TL1105QF160RSWITCH TACTILE SPST-NO 0.05A 50V |
2,577 |
|
Datasheet |
TL1105 | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 50VDC | 15.85mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|

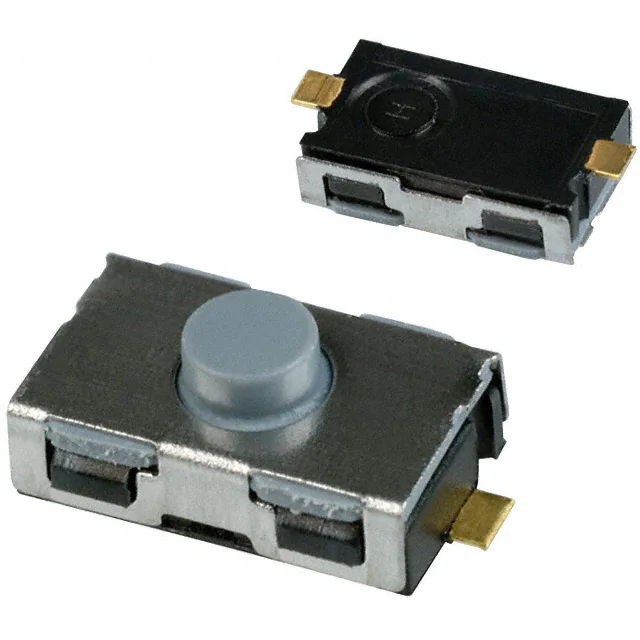

KSR223GNCSWITCH TACTILE SPST-NC 0.01A 32V |
2,470 |
|
Datasheet |
KSR | Tape & Reel (TR) | Obsolete | SPST-NC | On-Mom | Standard | Surface Mount | 2.50mm | 0.01A @ 32VDC | - | Top Actuated | Gull Wing | 6.00mm x 3.80mm | Non-Illuminated | IP50 - Dust Protected | - | 200gf | - | - | -40°C ~ 125°C |
