| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ITS13FV1STSWITCH TACTILE SPST-NO 0.05A 12V |
1,397 |
|
Datasheet |
ITS | Tray | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | - | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.20mm x 6.80mm | Illuminated | - | LED, Green/Red | 160gf | 2.5 VDC | - | -25°C ~ 70°C |
|
JB15KP-2ASWITCH TACTILE SPST-NO 0.05A 24V |
1,078 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 176gf | - | Process Sealed | -25°C ~ 70°C |
|
95CW06B3RARTSWITCH TACTILE SPST-NO 0.05A 12V |
9,175 |
|
Datasheet |
95C | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 0.05A @ 12VDC | - | Side Actuated | SMD (SMT) Tab | 7.55mm x 4.61mm | Non-Illuminated | - | - | 260gf | - | Washable | -25°C ~ 70°C |
|
1.14.205.111/0000SWITCH TACT DPST-NO/NC 0.1A 35V |
1,326 |
|
Datasheet |
MICON 5 | Tape & Reel (TR) | Active | DPST-NO/NC | On-Mom, Off-Mom | Standard | Surface Mount | 3.85mm | 0.1A @ 35VAC/DC | - | Top Actuated | J Lead | 6.40mm x 5.10mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 816gf | - | - | -40°C ~ 125°C |
|

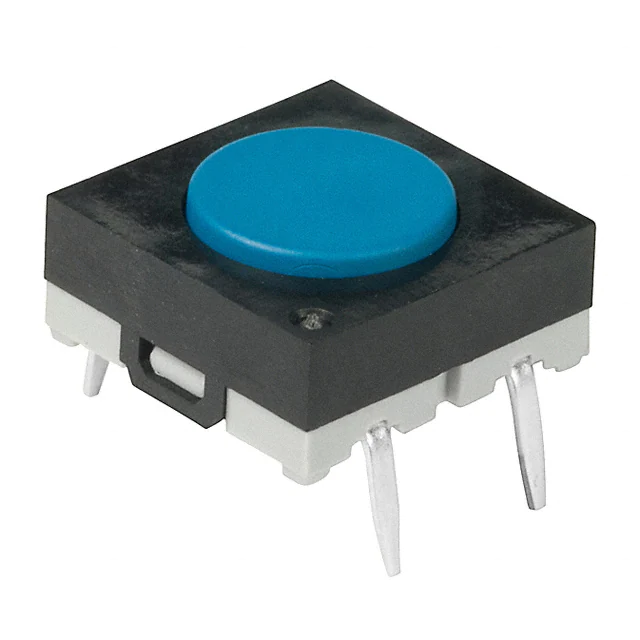

JB15HFPSWITCH TACT SPST-NO 0.125A 24V |
2,513 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 4.90mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|
TL1220R1BBBBHALOSWITCH TACTILE SPST-NO 0.05A 12V |
2,038 |
|
Datasheet |
TL1220 | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 9.90mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | - | LED, Blue | 180gf | 3.5 VDC | Tactile Feedback | -40°C ~ 85°C |
|

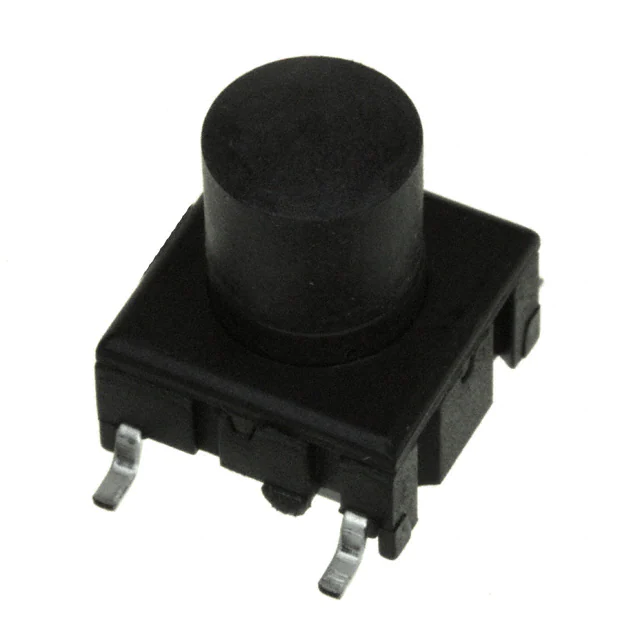

3ESH9-12.0SWITCH TACTILE SPST-NO 0.05A 24V |
4,044 |
|
Datasheet |
Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 12.00mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | Sealed - Flux Protection | -40°C ~ 160°C |
|
ITS13FR2STSWITCH TACTILE SPST-NO 0.05A 12V |
224 |
|
Datasheet |
ITS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole, Right Angle | - | 0.05A @ 12VDC | - | Side Actuated | PC Pin | 8.30mm x 9.70mm | Illuminated | - | LED, Green/Red | 160gf | 2.5 VDC | - | -25°C ~ 70°C |
|
3.14.100.501/0000SWITCH TACTILE SPST-NO 0.1A 35V |
236 |
|
Datasheet |
RF15R | Tube | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 9.70mm | 0.1A @ 35VAC/DC | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Non-Illuminated | - | - | 296gf | - | - | -25°C ~ 70°C |
|

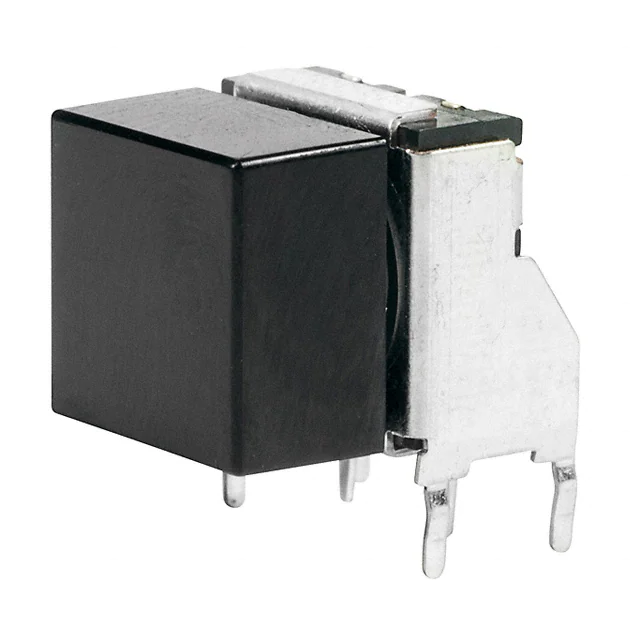

JB15KH-6ASWITCH TACTILE SPST-NO 0.05A 24V |
8,168 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole, Right Angle | - | 0.05A @ 24VDC | 7.76mm | Side Actuated | PC Pin | 10.80mm x 6.54mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 176gf | - | Process Sealed | -25°C ~ 70°C |
|
JB15KH-6HSWITCH TACTILE SPST-NO 0.05A 24V |
568 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole, Right Angle | - | 0.05A @ 24VDC | 7.76mm | Side Actuated | PC Pin | 10.80mm x 6.54mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 176gf | - | Process Sealed | -25°C ~ 70°C |
|

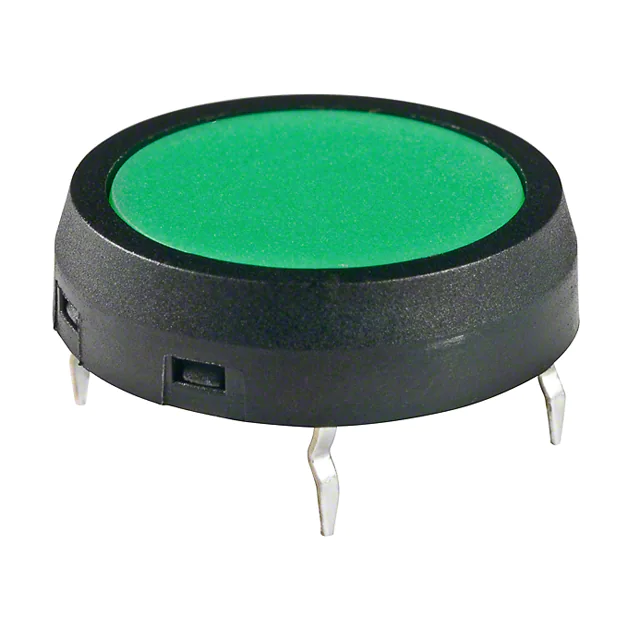

JF15CP2FSWITCH TACTILE SPST-NO 0.05A 24V |
3,152 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 5.08mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 17.70mm Dia | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
|

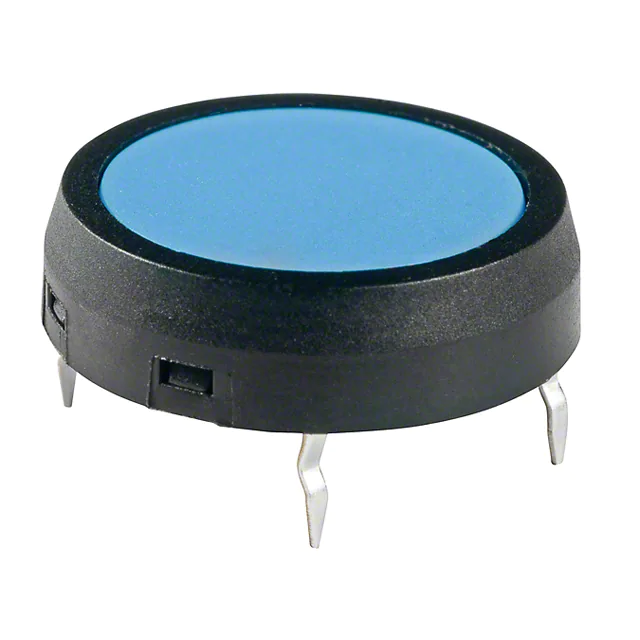

JF15CP2GSWITCH TACTILE SPST-NO 0.05A 24V |
547 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 5.08mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 17.70mm Dia | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
|

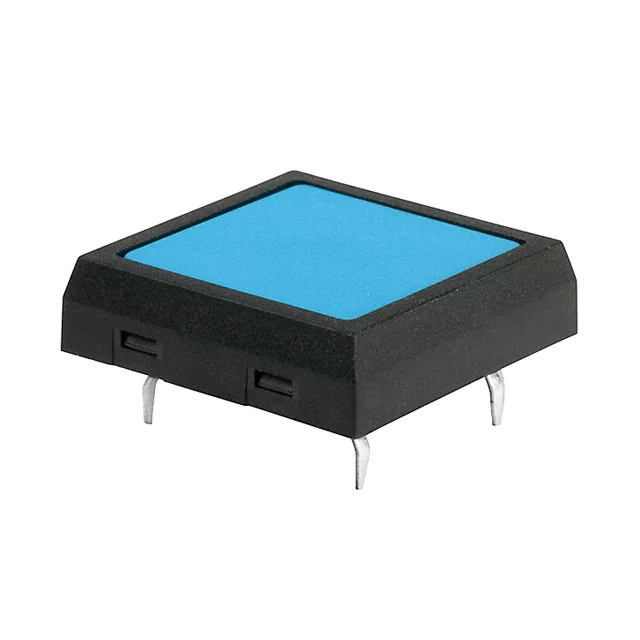

JF15SP1GSWITCH TACTILE SPST-NO 0.05A 24V |
131 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 5.08mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
|
|
1.14.205.101/0000SWITCH TACT DPST-NO/NC 0.1A 35V |
481 |
|
Datasheet |
MICON 5 | Tape & Reel (TR) | Active | DPST-NO/NC | On-Mom, Off-Mom | Standard | Surface Mount | 3.85mm | 0.1A @ 35VAC/DC | - | Top Actuated | J Lead | 6.40mm x 5.10mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 408gf | - | - | -40°C ~ 125°C |
|
TL1265BQSCLRSWITCH TACTILE SPST-NO 0.05A 12V |
3,798 |
|
Datasheet |
TL1265 | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 12.00mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | - | LED, Blue | 160gf | 3.5 VDC | Clear Cap | -20°C ~ 70°C |
|

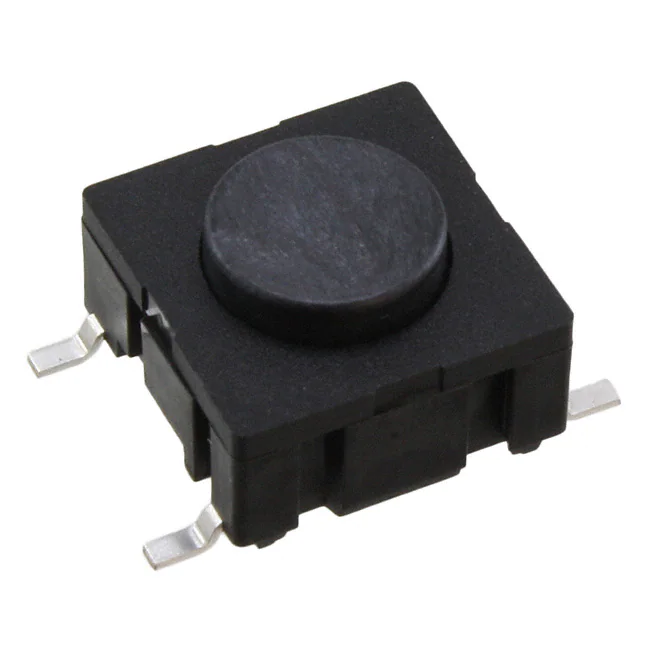

TL6200ABF300QGSWITCH TACTILE SPST-NO 0.05A 24V |
661 |
|
Datasheet |
TL6200 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Round Button | Surface Mount | 6.40mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | Black Cap | -40°C ~ 85°C |
|
KT11P2SA3M35LFGSWITCH TACTILE SPST-NO 1VA 32V |
2,007 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 1VA @ 32VAC/DC | - | Side Actuated | Gull Wing | 7.77mm x 4.61mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|
KT11P4SA2M35LFGSWITCH TACTILE SPST-NO 1VA 32V |
587 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 1VA @ 32VAC/DC | - | Side Actuated | Gull Wing | 7.77mm x 6.41mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|
5GTH93582SWITCH TACTILE SPST-NO 0.05A 24V |
22,565 |
|
Datasheet |
Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 6.40mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 350gf | 2 VDC | Sealed - Flux Protection | -40°C ~ 160°C |
