| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Capacitance | Tolerance | Type | ESR (Equivalent Series Resistance) | Operating Temperature | Voltage - Rated | Lifetime @ Temp. | Mounting Style | Size / Dimension | Height - Seated (Max) | Lead Spacing | Manufacturer Size Code | Features | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCNZ476M035R0100ECAP TANT POLY 47UF 35V 2917 |
2,328 |
|
Datasheet |
TCN | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 35 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | - | - | General Purpose | - |
|
|
T521V226M035ATE065CAP TANT POLY 22UF 35V SMD |
7,506 |
|
Datasheet |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | Molded | 65mOhm @ 100kHz | -55°C ~ 105°C | 35 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | General Purpose | - |
|
|
T591D687M2R5ATE006CAP TANT POLY 680UF 2.5V 7343 |
4,549 |
|
Datasheet |
KO-CAP® T591 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | Molded | 6mOhm @ 100kHz | -55°C ~ 125°C | 2.5 V | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | General Purpose | - |
|
|
T521D476M035ATE060CAP TANT POLY 47UF 35V 7343 |
6,225 |
|
Datasheet |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | Molded | 60mOhm @ 100kHz | -55°C ~ 125°C | 35 V | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | General Purpose | - |
|
|
T521D157M025ATE040CAP TANT POLY 150UF 25V 7343 |
7,478 |
|
Datasheet |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | Molded | 40mOhm @ 100kHz | -55°C ~ 125°C | 25 V | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | General Purpose | - |
|
|
T520V227M006ZTE045220.UF 6.0V |
8,719 |
|
Datasheet |
T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | Molded | 45mOhm @ 100kHz | -55°C ~ 105°C | 6.3 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | - | - |
|
TCJE106M050R0070ECAP TANT POLY 10UF 50V 2917 |
2,974 |
|
Datasheet |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 50 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | General Purpose | - |
|
|
T55D108M2R5C0006T55D108M2R5C0006 |
3,158 |
|
Datasheet |
vPolyTan™ T55 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 1 mF | ±20% | Molded | 6mOhm @ 100kHz | -55°C ~ 105°C | 2.5 V | 1000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | General Purpose | - |
|
|
TCQE157M016R0025ECAP TANT POLY 150UF 16V 2917 |
3,637 |
|
Datasheet |
TCQ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | Molded | 25mOhm @ 100kHz | -55°C ~ 125°C | 16 V | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | Automotive | AEC-Q200 |
|
|
T598X156M075ATE075CAP TANTALUM POLYMER AUTOMOTIVE |
6,709 |
|
Datasheet |
KO-CAP® T598 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 15 µF | ±20% | Molded | 75mOhm @ 100kHz | -55°C ~ 125°C | 75 V | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | Automotive | AEC-Q200 |
|
|
T598D476M025ATW060CAP TAN POLY 47UF 25V AUTO |
4,636 |
|
Datasheet |
T598 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | Molded | 60mOhm @ 100kHz | -55°C ~ 125°C | 25 V | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | Automotive | AEC-Q200 |
|
|
T521X477M016ATI020CAP TANT SMD POLYMER |
9,052 |
|
Datasheet |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | Molded | 20mOhm @ 100kHz | -55°C ~ 125°C | 16 V | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | General Purpose | - |
|
TCME337M010R0010ECAP TANT POLY 330UF 10V 2917 |
5,354 |
|
Datasheet |
TCM | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | Molded | 10mOhm @ 100kHz | -55°C ~ 105°C | 10 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | General Purpose | - |
|
T54EE156M063LZA100CAP TANT POLY 15UF 63V 2917 |
5,614 |
|
Datasheet |
vPolyTan™ T54 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 15 µF | ±20% | Molded | 100mOhm @ 100kHz | -55°C ~ 125°C | 63 V | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | EE | High Reliability | COTS |
|
|
T543X107M030AHW035CAP TANT SMD POLYMER HI-REL |
2,009 |
|
Datasheet |
KO-CAP® T543 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | Molded | 35mOhm @ 100kHz | -55°C ~ 105°C | 30 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | High Reliability | COTS |
|
|
TCH9476M050W0070UCAP TANT POLY 47UF 50V SMD |
4,561 |
|
Datasheet |
TCH | Nonstandard | Bulk | Active | 47 µF | ±20% | Hermetically Sealed | 70mOhm @ 100kHz | -55°C ~ 125°C | 50 V | 10000 Hrs @ 85°C | Surface Mount | 0.492" L x 0.433" W (12.50mm x 11.00mm) | 0.234" (5.95mm) | - | 9 | High Reliability | - |
|

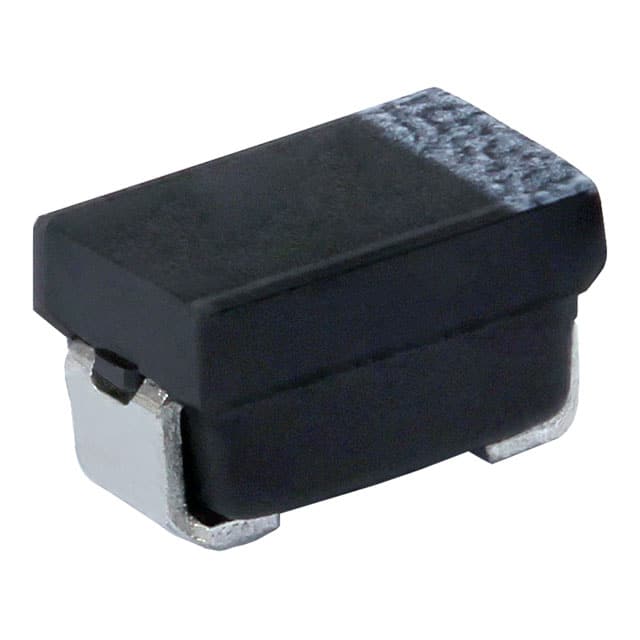

T55P106M004C0300CAP TANT POLY 10UF 4V 0805 |
7,205 |
|
Datasheet |
vPolyTan™ T55 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | Molded | 300mOhm @ 100kHz | -55°C ~ 105°C | 4 V | 1000 Hrs @ 105°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.047" (1.20mm) | - | P | General Purpose | - |
|
|
TCJG107M004R0300ECAP TANT POLY 100UF 4V 1206 |
3,996 |
|
Datasheet |
TCJ | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | Molded | 300mOhm @ 100kHz | -55°C ~ 105°C | 4 V | 2000 Hrs @ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) | - | G | General Purpose | - |
|
T55A156M004C0300CAP TANT POLY 15UF 4V 1206 |
4,366 |
|
Datasheet |
vPolyTan™ T55 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 15 µF | ±20% | Molded | 300mOhm @ 100kHz | -55°C ~ 105°C | 4 V | 1000 Hrs @ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) | - | A | General Purpose | - |
|
|
T55A226M2R5C0200CAP TANT POLY 22UF 2.5V 1206 |
7,842 |
|
Datasheet |
vPolyTan™ T55 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | 2.5 V | 1000 Hrs @ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) | - | A | General Purpose | - |
