| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Capacitance | Tolerance | Type | ESR (Equivalent Series Resistance) | Operating Temperature | Voltage - Rated | Lifetime @ Temp. | Mounting Style | Size / Dimension | Height - Seated (Max) | Lead Spacing | Manufacturer Size Code | Features | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T520V337M004ATE0097706330.UF 4.0V |
8,216 |
|
Datasheet |
KO-CAP® T520 | 2917 (7343 Metric) | Box | Active | 330 µF | ±20% | Molded | 9mOhm @ 100kHz | -55°C ~ 105°C | 4 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | General Purpose | - |
|
|
T523V157M016APE070150.UF 16.0V |
9,664 |
|
Datasheet |
KO-CAP® T523 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 16 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | General Purpose | - |
|
|
T523V157M016APE100150.UF 16.0V |
5,672 |
|
Datasheet |
KO-CAP® T523 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 16 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | General Purpose | - |
|
|
T520V337M004AHE009CAP TANT SMD POLYMER |
5,368 |
|
Datasheet |
T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | Molded | 9mOhm @ 100kHz | -55°C ~ 105°C | 4 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | General Purpose | - |
|
|
T520C157M010ANE0557706150.UF 10.0V |
7,824 |
|
Datasheet |
T520 | 2312 (6032 Metric) | Box | Active | 150 µF | ±20% | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | 10 V | 2000 Hrs @ 105°C | Surface Mount | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.110" (2.80mm) | - | C | - | - |
|
|
T591V227M004ATE0257706220.UF 4.0V |
5,018 |
|
Datasheet |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T591V157M006ATE0257706150.UF 6.0V |
7,618 |
|
Datasheet |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

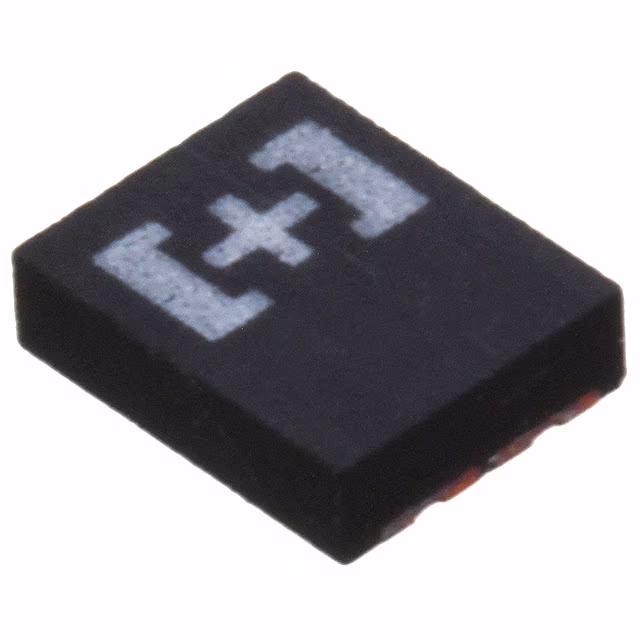

6TPU150MBICAP TANT POLY 150UF 6.3V 1411 |
5,035 |
|
Datasheet |
POSCAP™ TPU | 1411 (3528 Metric) | Tape & Reel (TR) | Obsolete | 150 µF | ±20% | Molded | 100mOhm @ 100kHz | -55°C ~ 85°C | 6.3 V | 1000 Hrs @ 85°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.039" (1.00mm) | - | - | General Purpose | - |
|
|
T520W337M2R5ATE0257706330.UF 2.5V |
8,324 |
|
Datasheet |
T520 | 2917 (7343 Metric) | Box | Active | 330 µF | ±20% | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2.5 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | - | W | - | - |
|
|
T520V157M008ATE0408000150.UF 8.0V |
8,516 |
|
Datasheet |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | Molded | 40mOhm @ 100kHz | -55°C ~ 105°C | 8 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | General Purpose | - |
|
TCJY337M004R0025ECAP TANT POLY 330UF 4V 2917 |
7,606 |
|
Datasheet |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 4 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | General Purpose | - |
|
|
TCJY227M006R0025ECAP TANT POLY 220UF 6.3V 2917 |
2,484 |
|
Datasheet |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 6.3 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | General Purpose | - |
|
|
T521D107M016ATE0507706100.UF 16.0V |
3,604 |
|
Datasheet |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T521D107M016ATE05077NT100.UF 16.0V |
8,567 |
|
Datasheet |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T591D476M020ATE050770647.0UF 20.0V |
6,022 |
|
Datasheet |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T520D477M006ATE0357706470.UF 6.0V |
2,411 |
|
Datasheet |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TCJ5337M010R0100CAP TANT POLY 330UF 10V 2917 |
7,989 |
|
Datasheet |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 10 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.157" (4.00mm) | - | 5 | General Purpose | - |
|
|
T523W107K020APE050100.UF 20.0V |
6,714 |
|
Datasheet |
KO-CAP® T523 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±10% | Molded | 50mOhm @ 100kHz | -55°C ~ 105°C | 20 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | - | W | General Purpose | - |
|
|
T520V107M010AHE025CAP TANT SMD POLYMER |
7,601 |
|
Datasheet |
T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 10 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | General Purpose | - |
|
|
T520D108M2R5ATE01077061000UF 2.5V |
7,864 |
|
Datasheet |
T520 | 2917 (7343 Metric) | Box | Active | 1000 µF | ±20% | Molded | 10mOhm @ 100kHz | -55°C ~ 105°C | 2.5 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | D | - | - |
