Tantalum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Capacitance | Tolerance | Type | ESR (Equivalent Series Resistance) | Operating Temperature | Voltage - Rated | Lifetime @ Temp. | Mounting Style | Size / Dimension | Height - Seated (Max) | Lead Spacing | Manufacturer Size Code | Features | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2R5TPE330MICAP TANT POLY 330UF 2.5V 2917 |
1,836 |
|
Datasheet |
POSCAP™ TPE | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | Molded | 18mOhm @ 100kHz | -55°C ~ 105°C | 2.5 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | D2E | General Purpose | - |
|
T55D337M010C0025CAP TANT POLY 330UF 10V 2917 |
315 |
|
Datasheet |
vPolyTan™ T55 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 10 V | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | General Purpose | - |
|
20TQC47MYFTCAP TANT POLY 47UF 20V 2917 |
9,282 |
|
Datasheet |
POSCAP™ TQC | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | 20 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | - | D15 | General Purpose | - |
|
TCJC335M050R0200CAP TANT POLY 3.3UF 50V 2312 |
1,629 |
|
Datasheet |
TCJ | 2312 (6032 Metric) | Tape & Reel (TR) | Active | 3.3 µF | ±20% | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | 50 V | 2000 Hrs @ 105°C | Surface Mount | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.110" (2.80mm) | - | C | General Purpose | - |
V.JPG)
|
T520V337M2R5ATE006CAP TANT POLY 330UF 2.5V 2917 |
1,251 |
|
Datasheet |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | Molded | 6mOhm @ 100kHz | -55°C ~ 105°C | 2.5 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | General Purpose | - |
|
|
TCJY337M006R0025CAP TANT POLY 330UF 6.3V 2917 |
5,354 |
|
Datasheet |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 6.3 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | General Purpose | - |
Y.JPG)
|
T520Y477M006ATE018CAP TANT POLY 470UF 6.3V 2917 |
2,143 |
|
Datasheet |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | Molded | 18mOhm @ 100kHz | -55°C ~ 105°C | 6.3 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.157" (4.00mm) | - | Y | General Purpose | - |
|
T521T685M035APE090CAP TANT POLY 6.8UF 35V 1411 |
8,178 |
|
Datasheet |
KO-CAP® T521 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 6.8 µF | ±20% | Molded | 90mOhm @ 100kHz | -55°C ~ 125°C | 35 V | 2000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.047" (1.20mm) | - | T | General Purpose | - |
|

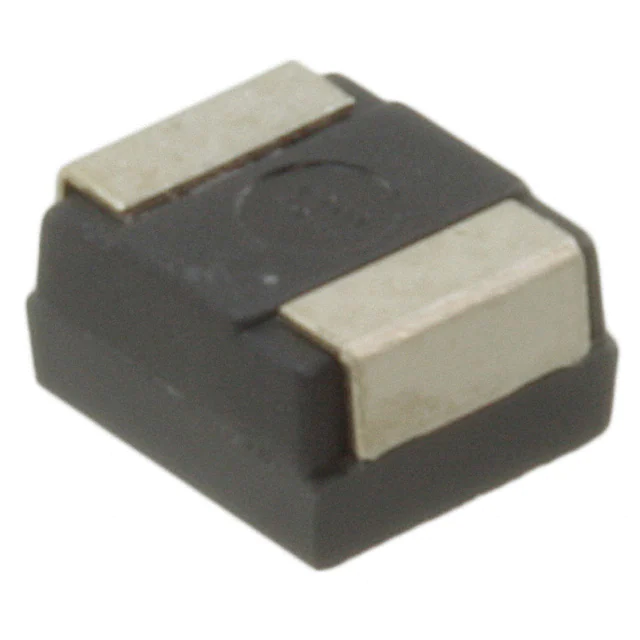

ETPE330MFBCAP TANT POLY 330UF 2.5V 1411 |
3,437 |
|
Datasheet |
POSCAP™ TPE | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | Molded | 15mOhm @ 100kHz | -55°C ~ 105°C | 2.5 V | 1000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.079" (2.00mm) | - | B2 | General Purpose | - |
|
|
TCJD337M010R0025CAP TANT POLY 330UF 10V 2917 |
280 |
|
Datasheet |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 10 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | General Purpose | - |
|
|
TCJD476M025R0100ECAP TANT POLY 47UF 25V 2917 |
157 |
|
Datasheet |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 25 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | General Purpose | - |
|
|
T521V226M025ATE060CAP TANT POLY 22UF 25V 2917 |
6,601 |
|
Datasheet |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | Molded | 60mOhm @ 100kHz | -55°C ~ 105°C | 25 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | General Purpose | - |
|
|
T55V226M035C0070CAP TANT POLY 22UF 35V 2917 |
510 |
|
Datasheet |
vPolyTan™ T55 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 35 V | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | General Purpose | - |
|
T55D226M035C0120CAP TANT POLY 22UF 35V 2917 |
7,568 |
|
Datasheet |
vPolyTan™ T55 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | Molded | 120mOhm @ 100kHz | -55°C ~ 105°C | 35 V | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | General Purpose | - |
D.JPG)
|
T520D687M004ATE025CAP TANT POLY 680UF 4V 2917 |
1,205 |
|
Datasheet |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 4 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | General Purpose | - |
|
|
TCJC475M050R0200CAP TANT POLY 4.7UF 50V 2312 |
175 |
|
Datasheet |
TCJ | 2312 (6032 Metric) | Tape & Reel (TR) | Active | 4.7 µF | ±20% | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | 50 V | 2000 Hrs @ 105°C | Surface Mount | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.110" (2.80mm) | - | C | General Purpose | - |
|
TCNT476M016R0150CAP TANT POLY 47UF 16V 1411 |
16,045 |
|
Datasheet |
TCN J-CAP | 1411 (3528 Metric), 1210 | Tape & Reel (TR) | Active | 47 µF | ±20% | Molded | 150mOhm @ 100kHz | -55°C ~ 105°C | 16 V | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.047" (1.20mm) | - | T | General Purpose | - |
|
|
6TPE330MA9ELCAP TANT POLY 330UF 6.3V 2917 |
10,216 |
|
Datasheet |
POSCAP™ TPE | 2917 (7343 Metric) | Tape & Reel (TR) | Not For New Designs | 330 µF | ±20% | Molded | 9mOhm @ 100kHz | -55°C ~ 105°C | 6.3 V | 1000 Hrs @ 85°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | - | D3L | General Purpose | - |
|
|
TCJB475M035R0200ECAP TANT POLY 4.7UF 35V 1210 |
9,307 |
|
Datasheet |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 4.7 µF | ±20% | Molded | 200mOhm @ 100kHz | -55°C ~ 125°C | 35 V | 2000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | General Purpose | - |
|
|
TCJY157M016R0040CAP TANT POLY 150UF 16V 2917 |
1,615 |
|
Datasheet |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | Molded | 40mOhm @ 100kHz | -55°C ~ 105°C | 16 V | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | General Purpose | - |
