Thermostats - Mechanical
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Circuit | Switching Temperature | Current Rating - AC | Current Rating - DC | Tolerance | Reset Temperature | Switching Cycles | Termination Style | Mounting Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
310000560067HERMETIC THERMOSTAT |
2,489 |
|
Datasheet |
3100 | - | Bulk | Obsolete | - | - | 3A (240V), 7A (30V) | 7A (30V) | - | - | 5K | - | - |
|
M3 35XBTHERMOSTAT 35DEG C 5A HOLE |
2,403 |
|
Datasheet |
M3 | Rectangular Case | Bulk | Active | - | 95°F (35°C) | 3A (250V), 5A (125V) | 3A (24V), 5A (12V) | ±37°F (±3°C) | - | 100K | Wire Leads | Screw Holes |
|
|
M3 40XBTHERMOSTAT 40DEG C 5A HOLE |
4,397 |
|
Datasheet |
M3 | Rectangular Case | Bulk | Active | - | 104°F (40°C) | 3A (250V), 5A (125V) | 3A (24V), 5A (12V) | ±37°F (±3°C) | - | 100K | Wire Leads | Screw Holes |
|
|
M3 50XBTHERMOSTAT 50DEG C 5A HOLE |
1,578 |
|
Datasheet |
M3 | Rectangular Case | Bulk | Active | - | 122°F (50°C) | 3A (250V), 5A (125V) | 3A (24V), 5A (12V) | ±37°F (±3°C) | - | 100K | Wire Leads | Screw Holes |
|
|
M3-10XBTHERMOSTAT +10 DEG C 5A HOLE |
1,686 |
|
Datasheet |
M3 | Rectangular Case | Bulk | Active | - | 50°F (10°C) | 3A (250V), 5A (125V) | 3A (24V), 5A (12V) | ±37°F (±3°C) | - | 100K | Wire Leads | Screw Holes |
|
|
M3 0XBTHERMOSTAT 0DEG C 5A HOLE |
3,314 |
|
Datasheet |
M3 | Rectangular Case | Bulk | Active | - | 32°F (0°C) | 3A (250V), 5A (125V) | 3A (24V), 5A (12V) | ±37°F (±3°C) | - | 100K | Wire Leads | Screw Holes |
|
M2H 200XTHERMOSTAT 200DEG C 2WRS NOMOUNT |
3,208 |
|
Datasheet |
M2H | Rectangular Case | Bulk | Active | - | 392°F (200°C) | 2A (250V), 3A (125V) | 2A (24V), 3A (12V) | ±45°F (±7°C) | - | 100K | Wire Leads | Free Hanging |
|
M2HA 400XTHERMOSTAT 400DEG C 2A HOLE |
4,386 |
|
Datasheet |
M2HA | Rectangular Case | Bulk | Active | - | 752°F (400°C) | 2A (250V), 3A (125V) | 2A (24V), 3A (12V) | ±59°F (±15°C) | - | 100K | Wire Leads | Screw Holes |
|
|
M2HA 350XTHERMOSTAT 350DEG C 2A HOLE |
3,414 |
|
Datasheet |
M2HA | Rectangular Case | Bulk | Active | - | 662°F (350°C) | 2A (250V), 3A (125V) | 2A (24V), 3A (12V) | ±59°F (±15°C) | - | 100K | Wire Leads | Screw Holes |
|
|
315300200040LOW HERMETIC THERMOSTAT |
3,831 |
|
Datasheet |
3153 | - | Bulk | Obsolete | - | - | 2A (115V), 5A (28V) | 5A (28V) | - | - | 100K | - | - |
|
|
M2HA 320XTHERMOSTAT 320DEG C 2A HOLE |
3,980 |
|
Datasheet |
M2HA | Rectangular Case | Bulk | Active | - | 608°F (320°C) | 2A (250V), 3A (125V) | 2A (24V), 3A (12V) | ±59°F (±15°C) | - | 100K | Wire Leads | Screw Holes |
|
|
350000430001MILITARY THERMOSTAT |
1,530 |
|
Datasheet |
3500 | - | Bulk | Obsolete | - | - | 2A (115V), 5A (28V) | 5A (28V) | - | - | 100K | - | - |
|
SE-F1803/4" DISC THERMOSTAT, 25AMP |
100 |
|
Datasheet |
SE T10 | Cylinder with Mounting Flange | Bulk | Active | - | 180°F (82°C) | 25A (120V), 25A (240V) | - | ±5.4°F (±3°C) | - | 100K | Quick Connect | Chassis Mount |
|
|
SE-F1103/4" DISC THERMOSTAT, 25AMP |
100 |
|
Datasheet |
SE T10 | Cylinder with Mounting Flange | Bulk | Active | - | 109°F (43°C) | 25A (120V), 25A (240V) | - | ±5.4°F (±3°C) | - | 100K | Quick Connect | Chassis Mount |
|
|
SE-L195-1753/4" DISC THERMOSTAT, 25AMP |
100 |
|
Datasheet |
SE T10 | Cylinder with Mounting Flange | Bulk | Active | - | - | 25A (120V), 25A (240V) | - | ±7.2°F (±4°C) | - | 100K | Quick Connect | Chassis Mount |
|
CAP-40-105-RBULB AND CAPILLARY THERMOSTAT |
100 |
|
Datasheet |
CAP | Module | Bulk | Active | SPST-NC | 104°F (40°C) | 2.9A (240V), 5A (120V), 20A (120V), 20A (240V) | - | ±36°F (±2°C) | - | 100K | Quick Connect | Chassis Mount |
|

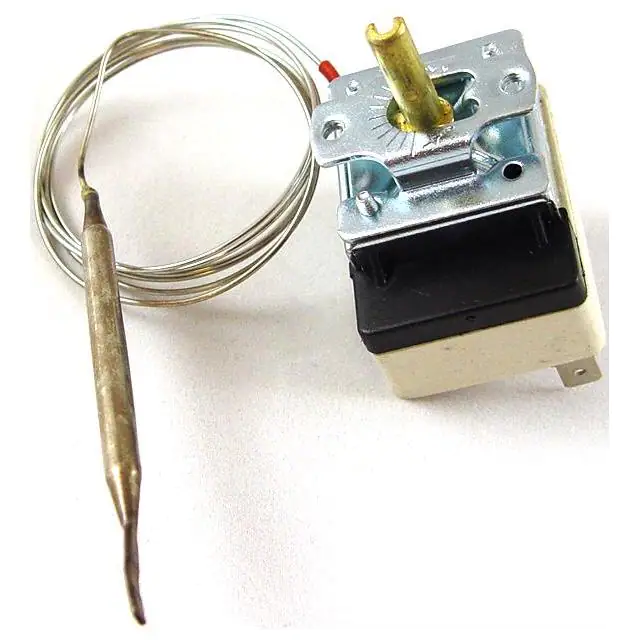

CAP-60-450BULB AND CAPILLARY THERMOSTAT |
3,365 |
|
Datasheet |
CAP | Module | Bulk | Active | SPST-NC | 450°F (232°C) | 2.9A (240V), 5A (120V), 20A (120V), 20A (240V) | - | ±48°F (±9°C) | - | 100K | Quick Connect | Chassis Mount |
|
CAP-57-104BULB AND CAPILLARY THERMOSTAT |
1,929 |
|
Datasheet |
CAP | Module | Bulk | Active | SPST-NC | 104°F (40°C) | 2.9A (240V), 5A (120V), 20A (120V), 20A (240V) | - | ±36°F (±2°C) | - | 100K | Quick Connect | Chassis Mount |
|
CAP-120-392-1BULB AND CAPILLARY THERMOSTAT |
4,589 |
|
Datasheet |
CAP | Module | Bulk | Active | SPST-NC | 392°F (200°C) | 2.9A (240V), 5A (120V), 20A (120V), 20A (240V) | - | ±43°F (±6°C) | - | 100K | Quick Connect | Chassis Mount |
|

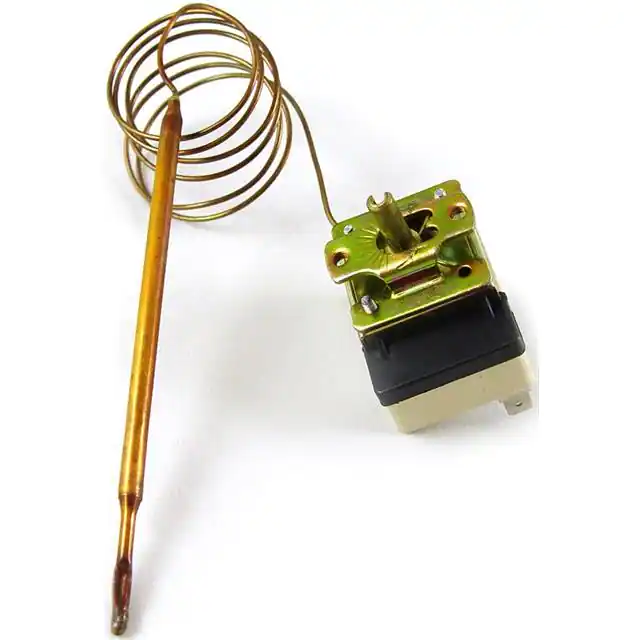

CAP-120-428BULB AND CAPILLARY THERMOSTAT |
1,612 |
|
Datasheet |
CAP | Module | Bulk | Active | SPST-NC | 428°F (220°C) | 2.9A (240V), 5A (120V), 20A (120V), 20A (240V) | - | ±46°F (±8°C) | - | 100K | Quick Connect | Chassis Mount |
