Oscilloscope Probes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Attenuation Value | Resistance - Input | Voltage - Max | Capacitance - Input | Bandwidth | Cable Length | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HVD3206-6MOSCOPE PROBE X50/X500 120MHZ 10M |
2,541 |
|
Datasheet |
HVD3000 | Box | Obsolete | Voltage Probe, Differential | 50:1, 500:1 | 10M | CAT I 2000V, CAT III 1500V | 2.5pF | 120MHz | 88.583" (2250.00mm) | Black and Red |
|
HVD3102AOSCOPE PROBE X100/X1K 25MHZ 10M |
1,683 |
|
Datasheet |
HVD3000A | Bulk | Active | Voltage Probe, Differential | 100:1, 1000:1 | 10M | CAT III 1000V | 2.5pF | 25MHz | 88.583" (2250.00mm) | Black and Red |
|
|
HVD3106A-6MOSCOPE PROBE 1KV 80MHZ |
3,794 |
|
Datasheet |
HVD3000A | Bulk | Active | Voltage Probe, Differential | 50:1, 500:1 | 10M | CAT III 1000V | 2.5pF | 80MHz | 236.220" (6000.00mm) | Black and Red |
|
RP4030OSCOPE PROBE X1.2 4000MHZ 50K |
4,920 |
|
Datasheet |
RP | Box | Obsolete | Voltage Probe | 1.2:1 | 50k | 30V | 0.1µF | 4000MHz | - | Brown, Gray, Green |
|

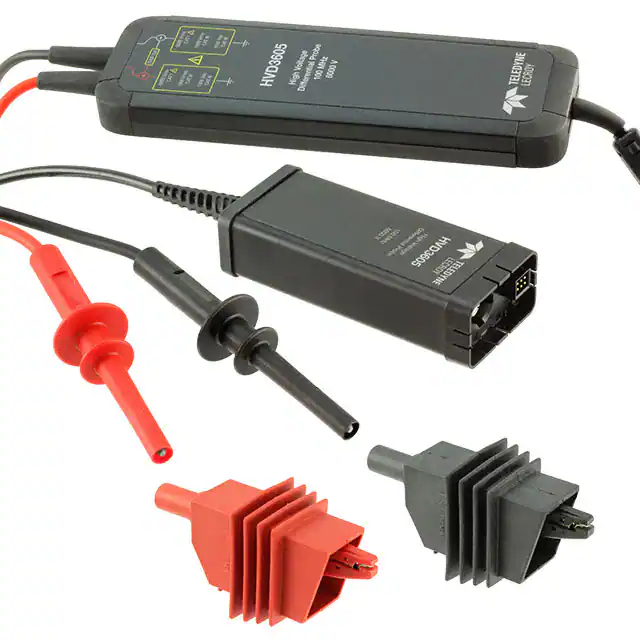

HVD3605OSCOPE PROBE X200/X2K 100MHZ 48M |
4,218 |
|
Datasheet |
HVD3000 | Box | Obsolete | Voltage Probe, Differential | 200:1, 2000:1 | 48M | CAT I 8485V, CAT III 1500V | 2.5pF | 100MHz | 267.716" (6800.00mm) | Black and Red |
|
T3DP7000DIFF PROBE 100MHZ 7000V(DC+PEAK |
1,332 |
|
Datasheet |
- | Box | Obsolete | Differential | 100:1, 1000:1 | - | 7000V (7kV) | - | 100MHz | - | - |
|

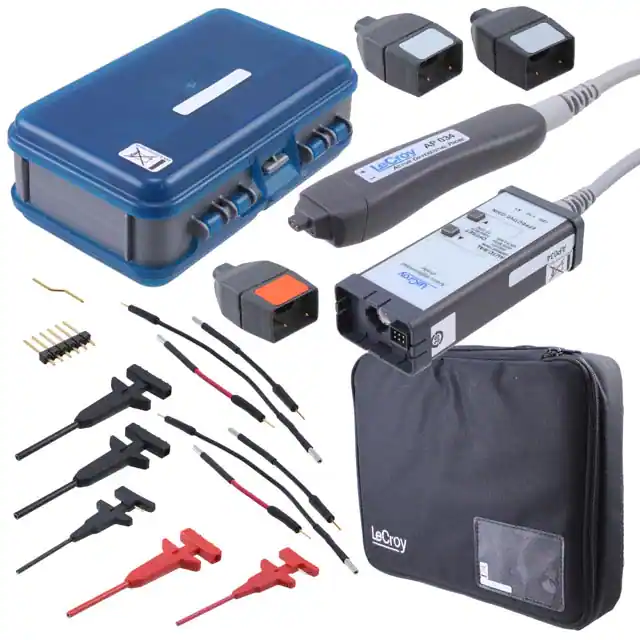

AP034OSCOPE PROBE X1/X10/X20 1GHZ 1M |
1,006 |
|
Datasheet |
AP | Box | Obsolete | Active Differential | 1:1, 10:1, 20:1 | 1M | CAT I 42.4V | 0.85pF | 1GHz | 42.000" (1066.80mm) | Gray |
|
HVD3206A-6M2KV 80 MHZ HIGH VOLTAGE DIFFEREN |
4,036 |
|
Datasheet |
HVD3000 | Box | Active | Voltage Probe, Differential | 50:1, 500:1 | 1M | CAT I 2000V, CAT III 1500V | 2.5pF | 80MHz | 236.220" (6000.00mm) | Black and Red |
|

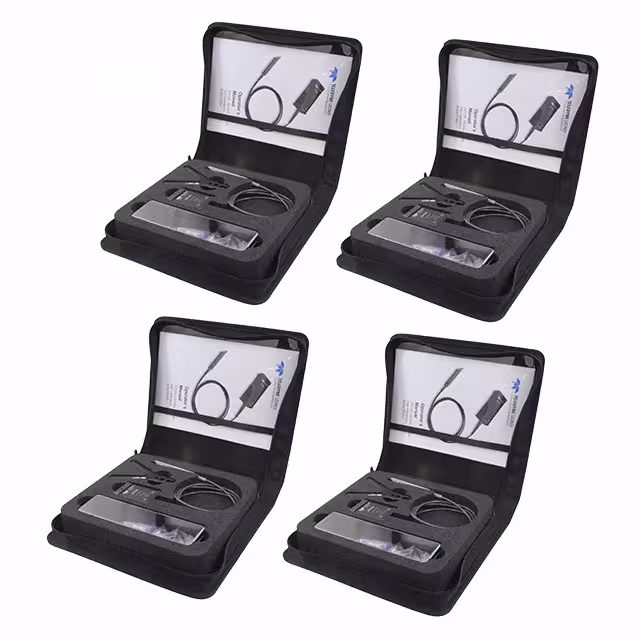

ZS1000-QUADPAKOSCOPE PROBE X10 1GHZ 1M |
4,159 |
|
Datasheet |
ZS | Bulk | Obsolete | Voltage Probe | 10:1 | 1M | 20V | 0.9pF | 1GHz | 51.181" (1300.00mm) | Black |
|
|
ZS2500OSCOPE PROBE X10 2.5GHZ 1M |
3,691 |
|
Datasheet |
ZS | Bulk | Active | Voltage Probe | 10:1 | 1M | 20V | 0.9pF | 2.5GHz | 51.181" (1300.00mm) | Black |
|
|
784256-01SA1500X SINGLE-ENDED ACTIVE PROB |
4,978 |
|
Datasheet |
- | Box | Active | Active, Single Ended | 10:1 | 50 | 8V | - | 1.5GHz | - | - |
|
|
786846-01CC0550X HIOKI CURRENT PROBE, 5 A |
4,818 |
|
Datasheet |
- | Box | Active | Passive | - | - | - | - | 50MHz | - | - |
|
|
784257-01SA2500X SINGLE-ENDED ACTIVE PROB |
4,154 |
|
Datasheet |
- | Box | Active | Active, Single Ended | 10:1 | 50 | - | - | 250GHz | - | - |
|
|
ZS4000OSCOPE PROBE X10 4GHZ 1M |
1,317 |
|
Datasheet |
ZS | Bulk | Active | Voltage Probe | 10:1 | 1M | 20V | 0.6pF | 4GHz | 51.181" (1300.00mm) | Black |
|

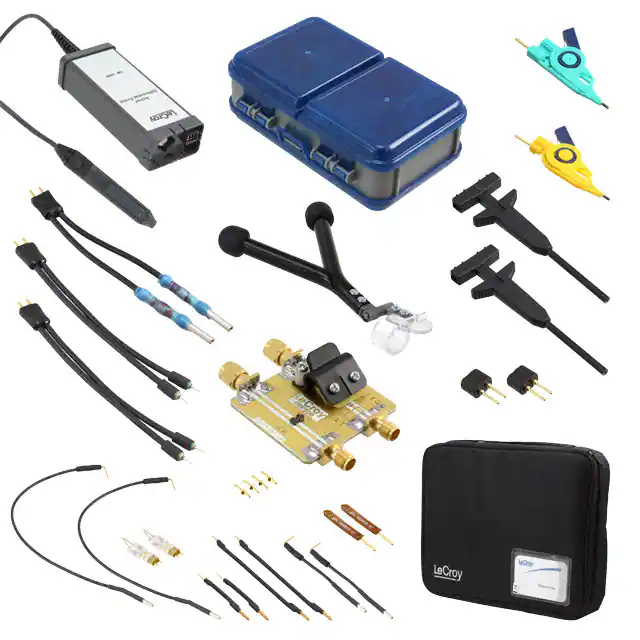

ZD1500OSCOPE PROBE X10 1.5GHZ 1M |
1,126 |
|
Datasheet |
ZD | Bulk | Active | Active Differential | 10:1 | 1M | 8V | 1pF | 1.5GHz | - | Black |
|
ZS1500-QUADPAKOSCOPE PROBE X10 1.5GHZ 1M |
4,678 |
|
Datasheet |
ZS | Bulk | Obsolete | Voltage Probe | 10:1 | 1M | 20V | 0.9pF | 1.5GHz | 51.181" (1300.00mm) | Black |
|
|
ZS2500-QUADPAKOSCOPE PROBE X10 2.5GHZ 1M |
3,012 |
|
Datasheet |
ZS | Bulk | Obsolete | Voltage Probe | 10:1 | 1M | 20V | 0.9pF | 2.5GHz | 51.181" (1300.00mm) | Black |
|
IP060OSCOPE PROBE X1/X10 60MHZ 1M/10M |
4,029 |
|
Datasheet |
IP | Bulk | Obsolete | Passive | 1:1, 10:1 | 1M, 10M | CAT II 150V, 300V | 200pF, 22pF | 60MHz | 59.055" (1500.00mm) | - |
|
|
PR 2000OSCOPE PROBE X100 200MHZ 50M |
2,108 |
|
Datasheet |
PR | Box | Obsolete | General Purpose | 100:1 | 50M | 2000V (DC + ACmax) | 5pF | 200MHz | 48.000" (1219.20mm) | Red |
|

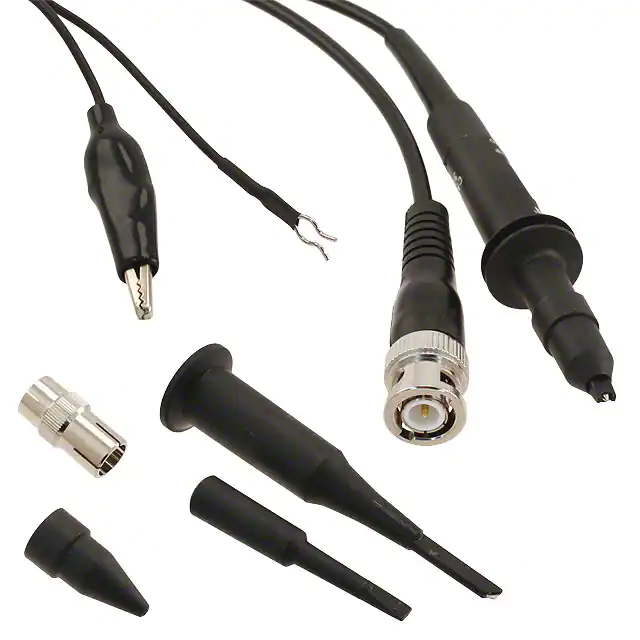

4550BOSCOPE P X1/X10 15/100MHZ 1M/10M |
1,453 |
|
Datasheet |
4550 | Bulk | Obsolete | Passive | 1:1, 10:1 | 1M, 10M | CAT I 300V | 64pF + Scope, 10.5pF | 15MHz, 100MHz (System) | 47.244" (1200.00mm) | Black |
