Thermal Cutoffs (Thermal Fuses)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Part Status | Type | Holding Temperature | Reset Temperature | Voltage Rating - AC | Voltage Rating - DC | Rated Functioning Temperature | Current Rating (Amps) | Approval Agency | Maximum Temperature Limit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NX85ABBTCO HIGH CURRENT 85C 28V 35A |
795 |
|
Datasheet |
Nonstandard | NX | Bag | Active | Breaker | - | 40°C (104°F) | - | 28.0 | 185°F (85°C) | 35 A | cUL, TUV, UL | - |
|
|
SD85WBBTCO HC SMD 85C NON SELF HOLD |
3,816 |
|
Datasheet |
Nonstandard | SD | Tape & Reel (TR) | Active | Breaker | - | 40°C (104°F) | - | 14.0 | 185°F (85°C) | 8 A | - | - |
|
|
SD90ABBTCO HC SMD 90C SELF HOLD |
3,564 |
|
Datasheet |
4-SMD, Gull Wing | SD | Tape & Reel (TR) | Active | Breaker | - | 40°C (104°F) | - | 28.0 | 90°C (194°F) | 8 A | - | - |
|
|
SD55ABBTCO HC SMD 55C SELF HOLD |
3,734 |
|
Datasheet |
Nonstandard | SD | Tape & Reel (TR) | Active | Breaker | - | 20°C (68°F) | - | 28.0 | 55°C (131°F) | 8 A | - | - |
|
AA85AB0THERMOSTAT 85DEG C NC STRAP SLDR |
5,191 |
|
Datasheet |
Nonstandard | Komatsulite™, AA | Bulk | Obsolete | Breaker | - | 40°C (104°F) | - | 28.0 | 85°C (185°F) | 35 A | cUL, TUV, UL | - |
|
|
AA72AB0THERMOSTAT 72DEG C NC STRAP SLDR |
4,249 |
|
Datasheet |
Nonstandard | Komatsulite™, AA | Bulk | Obsolete | Breaker | - | 40°C (104°F) | - | 28.0 | 72°C (162°F) | 35 A | cUL, TUV, UL | - |
|
|
AA77AB0THERMOSTAT 77DEG C NC STRAP SLDR |
3,672 |
|
Datasheet |
Nonstandard | Komatsulite™, AA | Bulk | Obsolete | Breaker | - | 40°C (104°F) | - | 28.0 | 77°C (171°F) | 35 A | cUL, TUV, UL | - |
|

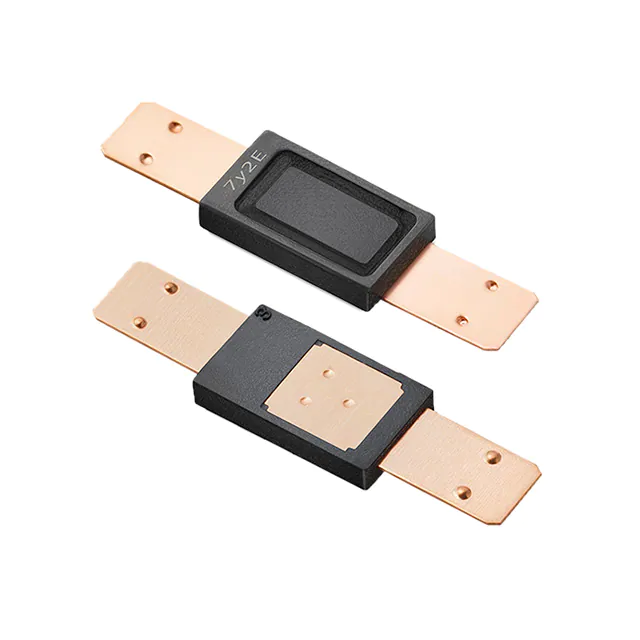

MHP-TAC6-12-85THERMOSTAT 85DEG C SPST-NC STRAP |
1,068 |
|
Datasheet |
Nonstandard | MHP-TAC | Bulk | Not For New Designs | Breaker | - | 40°C (104°F) | - | 12.0 | 85°C (185°F) | 25 A | - | - |
|
|
MHP-TAC15-12-82THERMOSTAT 82DEG C SPST-NC STRAP |
1,067 |
|
Datasheet |
Nonstandard | MHP-TAC | Bulk | Not For New Designs | Breaker | - | 40°C (104°F) | - | 12.0 | 82°C (180°F) | 25 A | - | - |
|
|
MHP-TAC15-12-90THERMOSTAT 90DEG C SPST-NC STRAP |
1,007 |
|
Datasheet |
Nonstandard | MHP-TAC | Bulk | Not For New Designs | Breaker | - | 40°C (104°F) | - | 12.0 | 90°C (194°F) | 25 A | - | - |
|
K10B-184THERMAL FUSE 10A 250V-184C 363F |
427 |
|
Datasheet |
Axial | K10B | Bulk | Active | Fuse | 160°C (320°F) | - | 250.0 | - | 184°C (363°F) | 10 A | CCC, VDE | 214°C (417°F) |
|
K10B-072THERMAL FUSE 10A 250V - 72C 162F |
418 |
|
Datasheet |
Axial | K10B | Bulk | Active | Fuse | 45°C (113°F) | - | 250.0 | - | 72°C (162°F) | 10 A | cURus, VDE | - |
|
K10B-077THERMAL FUSE 10A 250V - 77C 171F |
360 |
|
Datasheet |
Axial | K10B | Bulk | Active | Fuse | 55°C (131°F) | - | 250.0 | - | 77°C (171°F) | 10 A | CCC, cURus, VDE | 120°C (248°F) |
|
K10B-084THERMAL FUSE 10A 250V - 84C 183F |
263 |
|
Datasheet |
Axial | K10B | Bulk | Active | Fuse | 60°C (140°F) | - | 250.0 | - | 84°C (183°F) | 10 A | CCC | 150°C (302°F) |
|
|
K10B-121THERMAL FUSE 10A 250V-121C 250F |
250 |
|
Datasheet |
Axial | K10B | Bulk | Active | Fuse | 94°C (201°F) | - | 250.0 | - | 121°C (250°F) | 10 A | CCC | 150°C (302°F) |
|
SDF DF119STCO 250VAC 10A 119C (246F) AXIAL |
909 |
|
Datasheet |
Axial | SDF | Bulk | Active | Fuse | 95°C (203°F) | - | 250.0 | - | 119°C (246°F) | 10 A | CCC, cUL, PSE, UL, VDE | - |
|
SDF DF091STCO 250VAC 10A 91C (196F) AXIAL |
191 |
|
Datasheet |
Axial | SDF | Bulk | Active | Fuse | 67°C (156°F) | - | 250.0 | - | 91°C (196°F) | 10 A | CCC, cUL, PSE, UL, VDE | - |
|

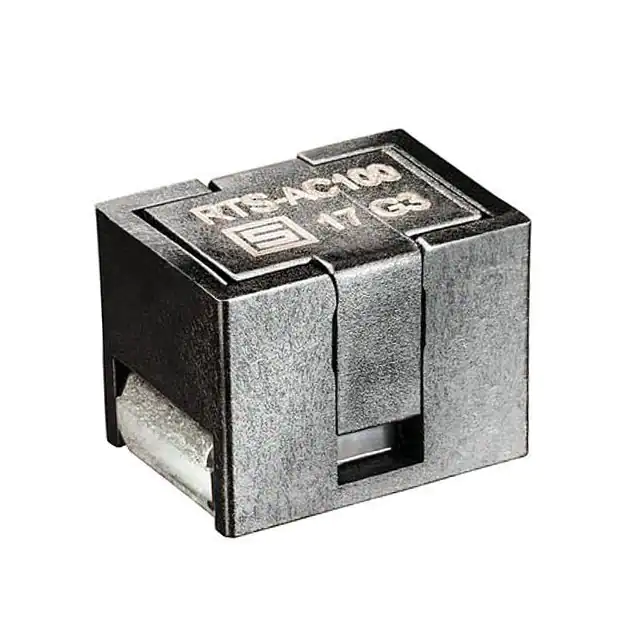

3-104-513TCO 60VDC 2SMD |
3,804 |
|
Datasheet |
2-SMD, No Lead | RTS | Tape & Reel (TR) | Active | Fuse | - | - | - | 60.0 | - | - | UL | - |
|
L5010424DELB0XETCO 250VAC 15A 104C (219F) CYL |
100 |
|
Datasheet |
Cylinder, Wire Leads | L50 | Bag | Active | Fuse | 80°C (176°F) | - | 250.0 | - | 104°C (219°F) | 15 A | - | 150°C (302°F) |
|
|
L5007224DELB0XETCO 250VAC 15A 72C (162F) CYL |
4,468 |
|
Datasheet |
Cylinder, Wire Leads | L50 | Bag | Active | Fuse | 50°C (122°F) | - | 250.0 | - | 72°C (162°F) | 15 A | - | 110°C (230°F) |
