Thermoelectric, Peltier Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Heat Transfer Type | Power - Cooling | Voltage | Fan Location | Power - Input | Current | Operating Temperature | Weight | Dimensions - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DA-160-24-02-00-00THERMOELECT ASSY DIRECT-AIR 160W |
2,919 |
|
Datasheet |
PowerCool | Box | Active | Direct to Air | 160 W | 24 V | Warm Side | 178 W | 7.4 A | -10°C ~ 46°C | 7.7 lbs (3.5 kg) | 300mm L x 152mm W x 100mm H |
|
AA-150-24-44-00-XXTHERMOELECT ASSY AIR-AIR 143W |
2,588 |
|
Datasheet |
Outdoor Cooler | Box | Active | Air to Air | 143 W | 24 V | Cold Side / Warm Side | - | 7.9 A | -40°C ~ 55°C | 12 lbs (5.4 kg) | 300mm L x 180mm W x 167mm H |
|

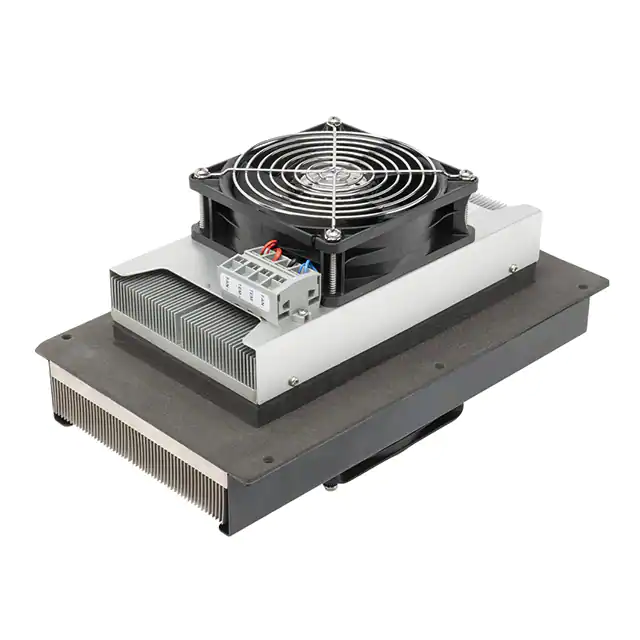

387000612THERMOELECT ASSY AIR-AIR 166W |
4,777 |
|
Datasheet |
SuperCool | Bulk | Active | Air to Air | 166 W | 24 V | Cold Side / Warm Side | 100 W | 6.9 A | -20°C ~ 70°C | - | 300mm L x 180mm W x 160mm H |
|
AA-200-24-44-00-XXTHERMOELECT ASSY AIR-AIR 193W |
3,238 |
|
Datasheet |
Outdoor Cooler | Box | Active | Air to Air | 193 W | 24 V | Cold Side / Warm Side | - | 11.3 A | -40°C ~ 55°C | 15 lbs (6.8 kg) | 400mm L x 180mm W x 178mm H |
|
43700000108000THERMOELECT ASSY AIR-AIR 244W |
2,280 |
|
Datasheet |
Outdoor Cooler | Bulk | Active | Air to Air | 244 W | 24 V | Cold Side / Warm Side | - | 12.1 A | -40°C ~ 55°C | 14 lbs (6.4 kg) | 400mm L x 153mm W x 204mm H |
|

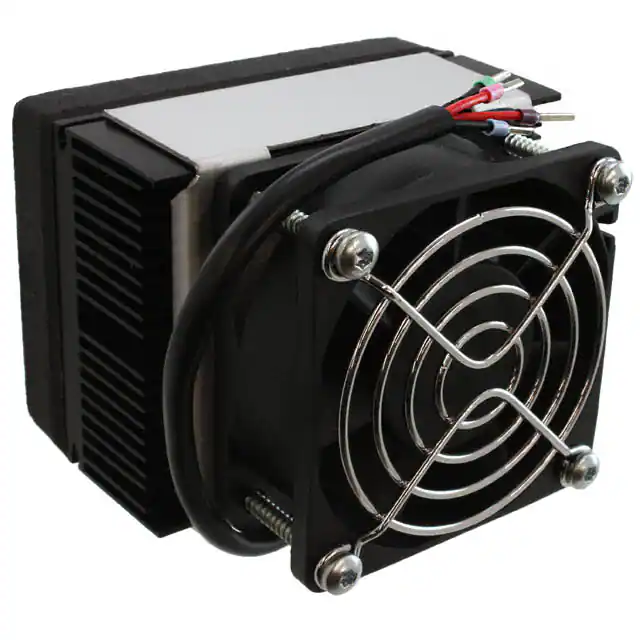

DA-024-24-02-00-00THERMOELECT ASSY DIRECT-AIR 24W |
1,610 |
|
Datasheet |
PowerCool | Bulk | Active | Direct to Air | 24 W | 24 V | Warm Side | 48 W | 2 A | -10°C ~ 48°C | 0.661 lb (299.82 g) | 80mm L x 60mm W x 76.3mm H |
|

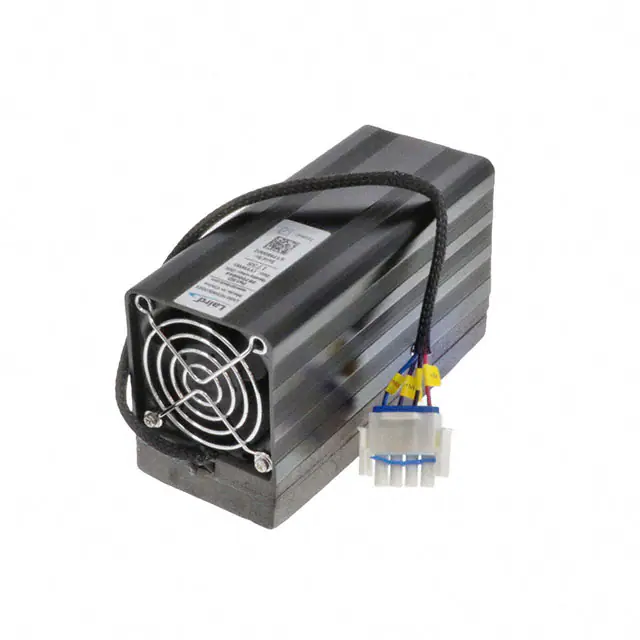

387000848THERMOELECT ASSY DIRECT-AIR 40W |
4,398 |
|
Datasheet |
Tunnel | Box | Active | Direct to Air | 40 W | 12 V | Warm Side | - | 2.9 A | -10°C ~ 50°C | 1.8 lbs (816.5 g) | 155mm L x 65mm W x 86mm H |
|

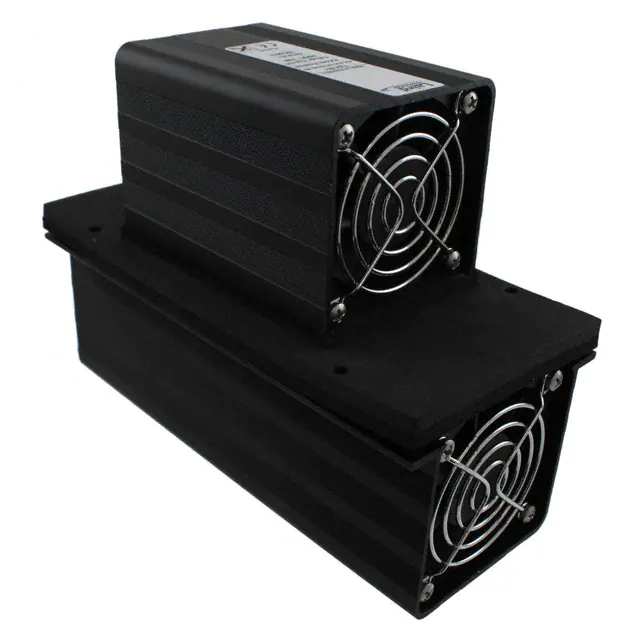

AA-033-24-22-00-00THERMOELECT ASSY AIR-AIR 28W |
2,128 |
|
Datasheet |
Tunnel | Bulk | Active | Air to Air | 28 W | 24 V | Cold Side / Warm Side | - | 2.3 A | -10°C ~ 48°C | 3.1 lbs (1.4 kg) | 180mm L x 84mm W x 138mm H |
|
DA-045-24-02-00-00THERMOELECT ASSY DIRECT-AIR 45W |
3,417 |
|
Datasheet |
PowerCool | Box | Active | Direct to Air | 45 W | 24 V | Warm Side | 60 W | 2.5 A | -10°C ~ 50°C | 2.6 lbs (1.2 kg) | 160mm L x 122mm W x 86mm H |
|
LA-024-24-02-00-00THERMOELECT ASSY LIQUID-AIR |
3,308 |
|
Datasheet |
Liquid | Bulk | Active | Liquid to Air | - | 24 V | Warm Side | - | - | - | 0.882 lb (400.07 g) | - |
|
DA-034-24-02-00-00THERMOELECT ASSY DIRECT-AIR 34W |
1,081 |
|
Datasheet |
PowerCool | Bulk | Active | Direct to Air | 34 W | 24 V | Warm Side | 46 W | 1.9 A | -10°C ~ 46°C | 0.992 lb (449.96 g) | 100mm L x 80mm W x 73.14mm H |
|
|
DA-034-12-02-00-00THERMOELECT ASSY DIRECT-AIR 34W |
3,495 |
|
Datasheet |
PowerCool | Box | Active | Direct to Air | 34 W | 12 V | Warm Side | 31 W | 2.6 A | -10°C ~ 46°C | 1.1 lbs (499.0 g) | 100mm L x 80mm W x 72mm H |
|
DL-060-12-00-00-00THERMOELECT ASSY DIRECT-LIQ 59W |
4,827 |
|
Datasheet |
Liquid | Box | Active | Direct to Liquid | 59 W | 12 V | - | 50 W | 4.7 A | -10°C ~ 63°C | 0.882 lb (400.07 g) | 100mm L x 60mm W x 39mm H |
|
387000177THERMOELECT ASSY DIRECT-AIR 64W |
2,372 |
|
Datasheet |
Tunnel | Box | Active | Direct to Air | 64 W | 24 V | Warm Side | - | 2.6 A | -10°C ~ 50°C | 2.6 lbs (1.2 kg) | 180mm L x 65mm W x 86mm H |
|
|
387000873THERMOELECT ASSY DIRECT-AIR 65W |
4,077 |
|
Datasheet |
Tunnel | Box | Active | Direct to Air | 65 W | 12 V | Warm Side | - | 5.1 A | -10°C ~ 50°C | 2.6 lbs (1.2 kg) | 180mm L x 65mm W x 86mm H |
|
387000176THERMOELECT ASSY AIR-AIR 55W |
1,236 |
|
Datasheet |
Tunnel | Box | Active | Air to Air | 55 W | 24 V | Cold Side / Warm Side | - | 2.6 A | -10°C ~ 50°C | 3.7 lbs (1.7 kg) | 180mm L x 84mm W x 142mm H |
|
DL-120-24-00-00-00THERMOELECT ASSY DIRECT-LIQ 122W |
4,134 |
|
Datasheet |
Liquid | Box | Active | Direct to Liquid | 122 W | 24 V | - | 101 W | 4.2 A | -10°C ~ 62°C | 1.5 lbs (680.4 g) | 140mm L x 60mm W x 39mm H |
|

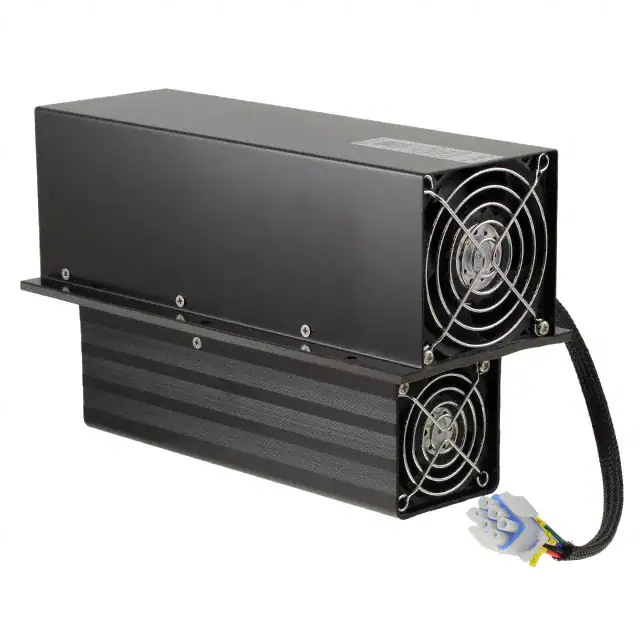

387000899THERMOELECT ASSY AIR-AIR 85W |
3,265 |
|
Datasheet |
Tunnel | Box | Active | Air to Air | 85 W | 24 V | Cold Side / Warm Side | - | 4.2 A | -10°C ~ 50°C | 5.5 lbs (2.5 kg) | 248mm L x 82.5mm W x 153.5mm H |
|
AA-070-24-22-00-00THERMOELECT ASSY AIR-AIR 71W |
1,158 |
|
Datasheet |
PowerCool | Box | Active | Air to Air | 71 W | 24 V | Cold Side / Warm Side | 91 W | 3.8 A | -10°C ~ 48°C | 5.5 lbs (2.5 kg) | 230mm L x 122mm W x 151.7mm H |
|
DA-024-12-02-00-00THERMOELECT ASSY DIRECT-AIR 24W |
4,368 |
|
Datasheet |
PowerCool | Box | Active | Direct to Air | 24 W | 12 V | Warm Side | 29 W | 2.4 A | -10°C ~ 48°C | 0.661 lb (299.82 g) | 80mm L x 60mm W x 69mm H |
