Thumbwheel Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Output Code | Read Out | Display Characters - Height | Actuator Type | Contact Rating @ Voltage | Number of Sections | Contact Material | Contact Finish | Mounting Style | Termination Style | End Caps | Operating Temperature | Section Width | Features | Panel Cutout Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

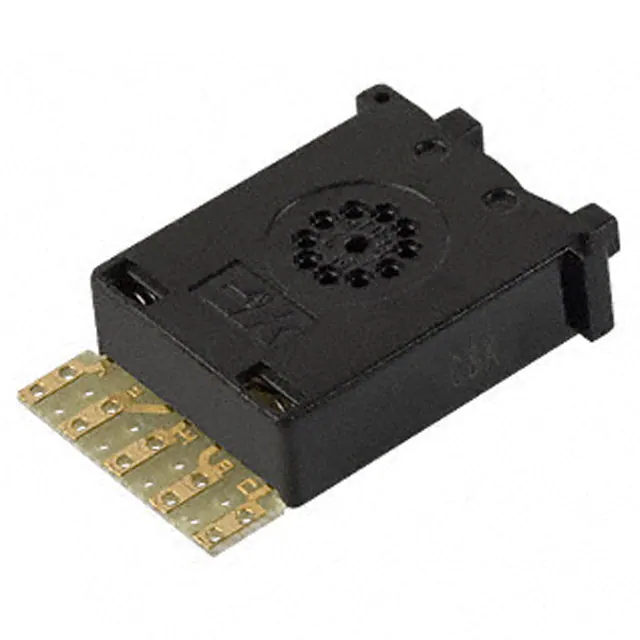

3P0210002SWITCH THUMB BCD 0.1A 30V |
1,582 |
|
Datasheet |
3P | Tray | Obsolete | BCD | 0 ~ 9 | - | Pushwheel | 0.1A @ 30VDC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -10°C ~ 65°C | 0.300" (7.62mm) | Dust Lens | - |
|

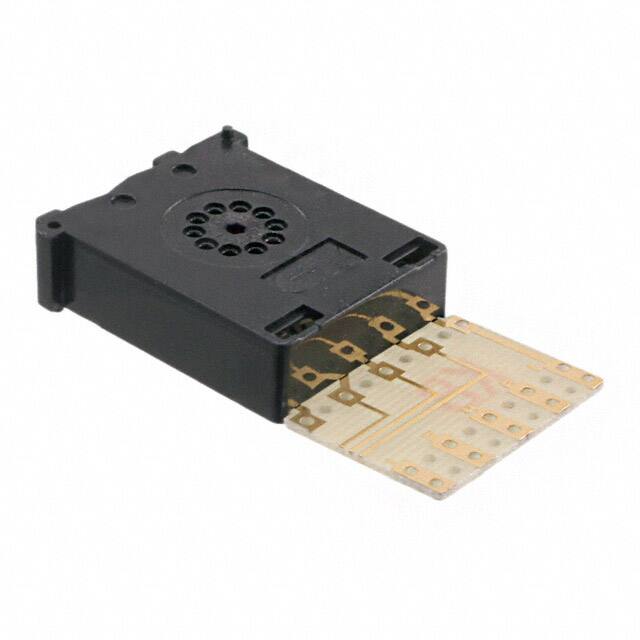

3P0210102SWITCH THUMB BCD 0.1A 30V |
3,879 |
|
Datasheet |
3P | Tray | Obsolete | BCD | 0 ~ 9 | - | Pushwheel | 0.1A @ 30VDC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | -10°C ~ 65°C | 0.300" (7.62mm) | Dust Lens | - |
|

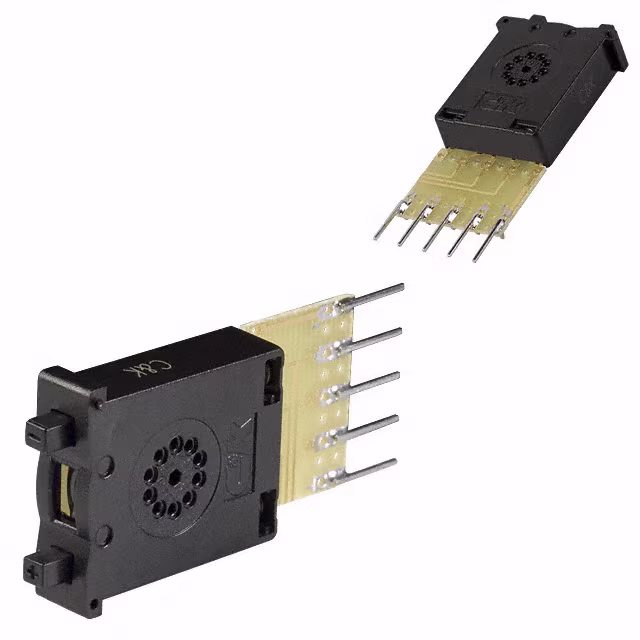

3P0210A02SWITCH THUMB BCD 0.1A 30V |
1,650 |
|
Datasheet |
3P | Tray | Obsolete | BCD | 0 ~ 9 | - | Pushwheel | 0.1A @ 30VDC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | PC Pin with Component Mounting | Sold Separately | -10°C ~ 65°C | 0.300" (7.62mm) | Dust Lens | - |
|
3U1210000SWITCH THUMB BCD 0.1A 28V |
3,613 |
|
Datasheet |
3U | Tray | Obsolete | BCD | 0 ~ 9 | - | Pushwheel | 0.1A @ 28VDC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | -10°C ~ 65°C | 0.300" (7.62mm) | - | Rectangular - 14.50mm x 11.33mm |
|
302109303SWITCH THUMB BCD 0.1A 120V |
4,118 |
|
Datasheet |
3 | Tray | Obsolete | BCD | 0 ~ 9 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | 1 | Copper Alloy | - | Panel Mount, Snap-In | PC Pin | Sold Separately | -40°C ~ 65°C | 0.315" (8.00mm) | Dust Lens, Sealed Contacts | - |
|
|
PICOD131ALDSWITCH THUMB BCD 0.4VA 20V |
4,749 |
|
Datasheet |
PICOD | Bulk | Active | BCD | 0 ~ 9 | 0.122" (3.10mm) | Pushwheel | 0.4VA @ 20VAC/DC | 1 | Copper Tin Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | -10°C ~ 60°C | 0.300" (7.62mm) | - | - |
|
|
PICOD301AKSWITCH THUMB HEX 0.4VA 20V |
2,391 |
|
Datasheet |
PICOD | Bulk | Obsolete | Hexadecimal | 0 ~ 9, A ~ F | 0.094" (2.39mm) | Pushwheel | 0.4VA @ 20VAC/DC | 1 | Copper Tin Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -10°C ~ 60°C | 0.300" (7.62mm) | - | - |
|
|
SMCD111AKSWITCH THUMB DECIMAL 0.4VA 20V |
4,709 |
|
Datasheet |
SMCD | Bulk | Obsolete | Decimal | 0 ~ 9 | 0.193" (4.90mm) | Pushwheel | 0.4VA @ 20VAC/DC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -20°C ~ 80°C | 0.300" (7.62mm) | - | - |
|
|
DPS8111AKSWITCH THUMB DECIMAL 0.4VA 20V |
3,374 |
|
Datasheet |
DPS8 | Bulk | Obsolete | Decimal | 0 ~ 9 | 0.193" (4.90mm) | Pushwheel | 0.4VA @ 20VAC/DC | 1 | Copper Alloy | Gold | Panel Mount, Screw | Card Edge/Solder Pad | Sold Separately | -20°C ~ 80°C | 0.315" (8.00mm) | - | - |
|
|
DPS8131AKLSSWITCH THUMB BCD 0.4VA 20V |
1,743 |
|
Datasheet |
DPS8 | Bulk | Active | BCD | 0 ~ 9 | 0.193" (4.90mm) | Pushwheel | 0.4VA @ 20VAC/DC | 1 | Copper Alloy | Gold | Panel Mount, Screw | PC Pin | Sold Separately | -20°C ~ 80°C | 0.315" (8.00mm) | - | - |
|
|
1437603-4SWITCH THUMB BCD 0.4VA 20V |
1,594 |
|
Datasheet |
DPS10 | Bulk | Active | BCD | 0 ~ 9 | 0.275" (7.00mm) | Pushwheel | 0.4VA @ 20VAC/DC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | -20°C ~ 80°C | 0.394" (10.00mm) | - | - |
|
|
PICOD301ALULSSWITCH THUMB HEX 0.4VA 20V |
1,739 |
|
Datasheet |
PICOD | Bulk | Active | Hexadecimal | 0 ~ 9, A ~ F | 0.094" (2.39mm) | Pushwheel | 0.4VA @ 20VAC/DC | 1 | Copper Tin Alloy | Gold | Panel Mount, Snap-In, Right Angle | PC Pin | Sold Separately | -10°C ~ 60°C | 0.300" (7.62mm) | - | - |
|
|
DPS9111AKSWITCH THUMB DECIMAL 0.4VA 20V |
2,916 |
|
Datasheet |
DPS9 | Bulk | Obsolete | Decimal | 0 ~ 9 | 0.268" (6.80mm) | Pushwheel | 0.4VA @ 20VAC/DC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -20°C ~ 80°C | 0.315" (8.00mm) | - | - |
|
|
DPS9137AKSWITCH THUMB BCD COMP 0.4VA 20V |
4,362 |
|
Datasheet |
DPS9 | Bulk | Active | BCD Complement | 0 ~ 9 | 0.268" (6.80mm) | Pushwheel | 0.4VA @ 20VAC/DC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -20°C ~ 80°C | 0.315" (8.00mm) | - | - |
|
|
PICO131AK2SWITCH THUMB BCD 0.1A 40V |
4,064 |
|
Datasheet |
PICO | Tray | Obsolete | BCD | 0 ~ 9 | 0.122" (3.10mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -20°C ~ 60°C | 0.300" (7.62mm) | - | - |
|
|
DPS8131AKLS2SWITCH THUMB BCD 0.1A 40V |
2,236 |
|
Datasheet |
DPS8 | Tray | Active | BCD | 0 ~ 9 | 0.193" (4.90mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Tin Alloy | Gold | Panel Mount, Screw | PC Pin | Sold Separately | -20°C ~ 80°C | 0.315" (8.00mm) | - | - |
|
|
DPS9307AK2SWITCH THUMB HEX COMP 0.1A 40V |
1,986 |
|
Datasheet |
DPS9 | Tray | Obsolete | Hexadecimal Complement | 0 ~ 9, A ~ F | 0.169" (4.30mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Tin Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -20°C ~ 80°C | 0.315" (8.00mm) | - | - |
|
|
DPS10111ALLS2SWITCH THUMB DECIMAL 0.1A 40V |
2,225 |
|
Datasheet |
DPS10 | Tray | Active | Decimal | 0 ~ 9 | 0.275" (7.00mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Tin Alloy | Gold | Panel Mount, Snap-In | PC Pin with Component Mounting | Sold Separately | -20°C ~ 80°C | 0.394" (10.00mm) | - | - |
|
|
SH6GSG1254SWITCH THUMB |
4,165 |
|
Datasheet |
SH6 | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
322100000SWITCH THUMB BCD 0.1A 120V |
1,151 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | 2 | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | -40°C ~ 65°C | 0.315" (8.00mm) | - | Rectangular - 31.00mm x 24.28mm |
