Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS127SZQ2SWITCH TOGGLE SPDT 6A 125V |
4,369 |
|
Datasheet |
TS | Bulk | Active | Panel Mount | SPDT | 6A (AC) | 125 V | - | Mom-Off-Mom | Knurled Cap | 10.87mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 11/16-28 | Circular - 17.53mm Dia | Black Actuator | -30°C ~ 85°C |
|
5-6437630-0SWITCH TOGGLE DPDT 20A 125V |
1,485 |
|
Datasheet |
AW | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | Sealed | -20°C ~ 70°C |
|
1TL1-1SWITCH TOGGLE SPDT 15A 125V |
1,420 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
2TL1-3SWITCH TOGGLE DPDT 15A 125V |
2,596 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
2TL1-2SWITCH TOGGLE DPST 15A 125V |
4,678 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
1NT1-2DSWITCH TOGGLE SPST 15A 125V |
1,609 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Locking Lever | 26.67mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
11TW1-2SWITCH TOGGLE SPST 5A 125V |
1,176 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | SPST | 5A (AC/DC) | 125 V | 28 V | On-Off | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
12146A2VSWITCH TOGGLE DPDT 4A 125V |
3,078 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | 4A (AC/DC) | 125 V | 30 V | On-On | Locking Lever | 19.40mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
SW-T3-1A-A-A3-S1SWITCH TOGGLE SPST 3A 125V |
172 |
|
Datasheet |
SW | Bag | Active | Panel Mount | SPST | 3A (AC) | 125 V | - | On-Off | Standard Round | 9.40mm | Non-Illuminated | - | - | - | Solder Lug | M5 x 0.5 | Circular - 5.00mm Dia | - | -25°C ~ 85°C |
|
SW-T2-2E-A-A2-M1SWITCH TOGGLE SPDT 6A 125V |
2,249 |
|
Datasheet |
SW | Bag | Active | Panel Mount | SPDT | 6A (AC) | 125 V | - | On-Off-On | Standard Round | 11.00mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.00mm Dia | - | -25°C ~ 85°C |
|
SW-T2-4B-B-A2-MA2SWITCH TOGGLE DPDT 6A 125V |
1,947 |
|
Datasheet |
SW | Bag | Active | Panel Mount | DPDT | 6A (AC) | 125 V | - | On-On | Standard Round | 11.00mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.00mm Dia | - | -25°C ~ 85°C |
|
100SP1T1B3M1QEHSWITCH TOGGLE SPDT 5A 120V |
4,309 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200MSP1T2B1M1QESWITCH TOGGLE SPDT 3A 120V |
1,690 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | SPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1T5B1M1QEHSWITCH TOGGLE SPDT 5A 120V |
2,375 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 21.34mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

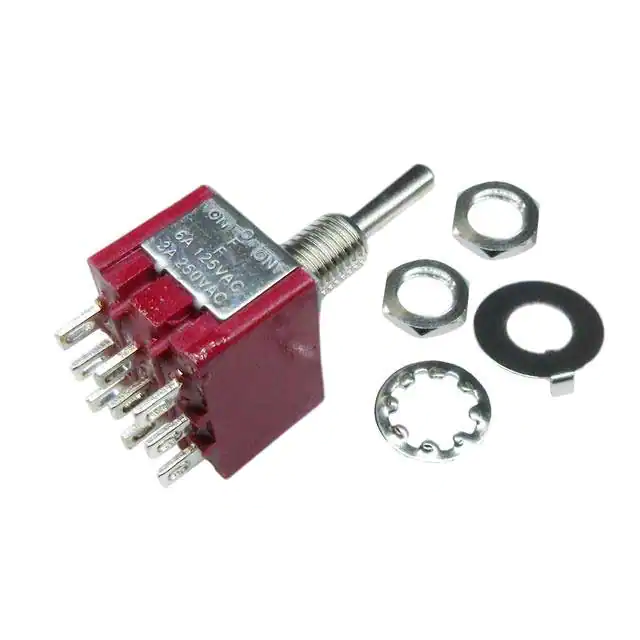

SW-T2-6E-A-A2-M3SWITCH TOGGLE 3PDT 6A 125V |
4,670 |
|
Datasheet |
SW | Bag | Active | Panel Mount | 3PDT | 6A (AC) | 125 V | - | On-Off-On | Standard Round | 11.00mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.00mm Dia | - | -25°C ~ 85°C |
|
AST13SEBQSWITCH TOGGLE SPDT 5A 120V |
3,890 |
|
Datasheet |
AST | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -40°C ~ 85°C |
|
C1700HOAACSWITCH TOGGLE SPST 20A 250V |
4,503 |
|
Datasheet |
1700 | - | Active | Panel Mount | SPST | 20A (AC) | 250 V | - | On-Off | Flatted | 16.40mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | - |
|
100SP4T1B1M2QEHSWITCH TOGGLE SPDT 5A 120V |
1,244 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
SW-T1-1A-B-K1SWITCH TOGGLE SPST 15A 125V |
4,082 |
|
Datasheet |
SW | Bag | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -25°C ~ 85°C |
|
200MSP3T2B1M2QESWITCH TOGGLE SPDT 3A 120V |
1,696 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | SPDT | 3A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
