| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

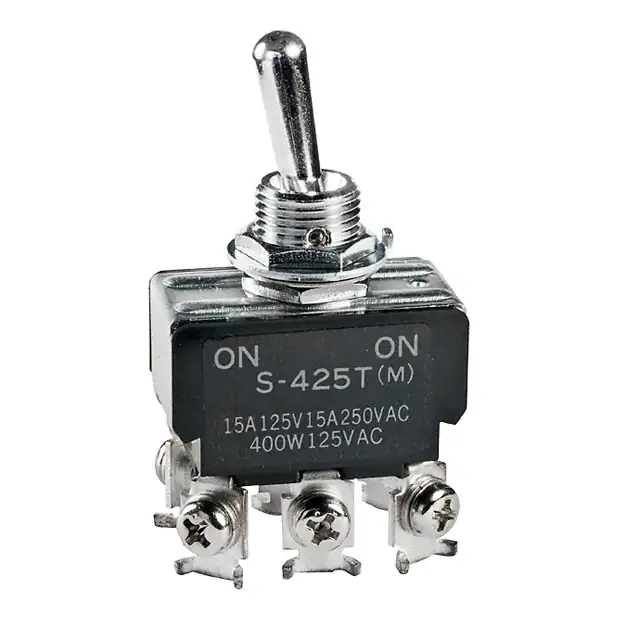

S425TSWITCH TOGGLE DPDT 15A 125V |
1,221 |
|
Datasheet |
S400 | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|

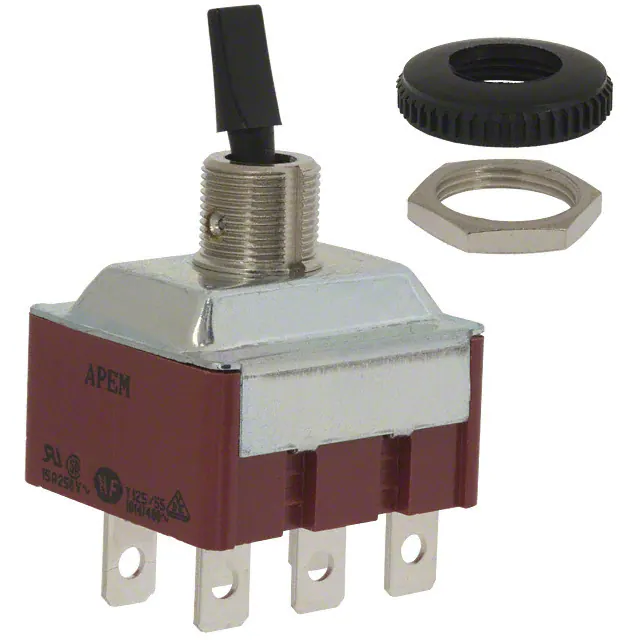

651NH/2SWITCH TOGGLE 3PST 15A 250V |
2,036 |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | 3PST | 15A (AC) | 250 V | - | On-Off | Flatted | 13.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
S3AW-WLSWITCH TOGGLE SPDT 15A 125V |
1,809 |
|
Datasheet |
S | Box | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Wire Leads | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 70°C |
|
11NT1-2SWITCH TOGGLE SPST 15A 125V |
1,431 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Solder Lug | 15/32-32 | Circular - 12.40mm Dia | Sealed | -65°C ~ 71°C |
|
7-6437630-0SWITCH TOGGLE SPDT 20A 125V |
1,938 |
|
Datasheet |
AW | Bulk | Active | Panel Mount | SPDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -20°C ~ 70°C |
|
631H/21VSWITCH TOGGLE SPST 15A 250V |
2,491 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SPST | 15A (AC) | 250 V | - | On-Off | Locking Lever | 19.40mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
5647MABSWITCH TOGGLE DPDT 6A 125V |
3,261 |
|
Datasheet |
5000M | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
9201KZQESWITCH TOGGLE DPDT 6A 120V |
1,611 |
|
Datasheet |
9000 | Tray | Active | Panel Mount | DPDT | 6A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 16.51mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M83731/10-211SWITCH TOGGLE DPDT 5A 115V |
1,494 |
|
Datasheet |
M83731 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 115 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -25°C ~ 71°C |
|
12TW1-7SWITCH TOGGLE DPDT 5A 125V |
4,688 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | 5A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
AML25GBF2CA01RGSWITCH TOGGLE DPDT 3A 125V |
1,956 |
|
Datasheet |
AML25 | Bulk | Active | Panel Mount, Snap-In | DPDT | 3A (AC), 2A (DC) | 125 V | 24 V | On-On | Paddle | - | Illuminated | LED, Green/Red | 24 VDC | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Rectangular - 28.98mm x 19.05mm | - | - |
|

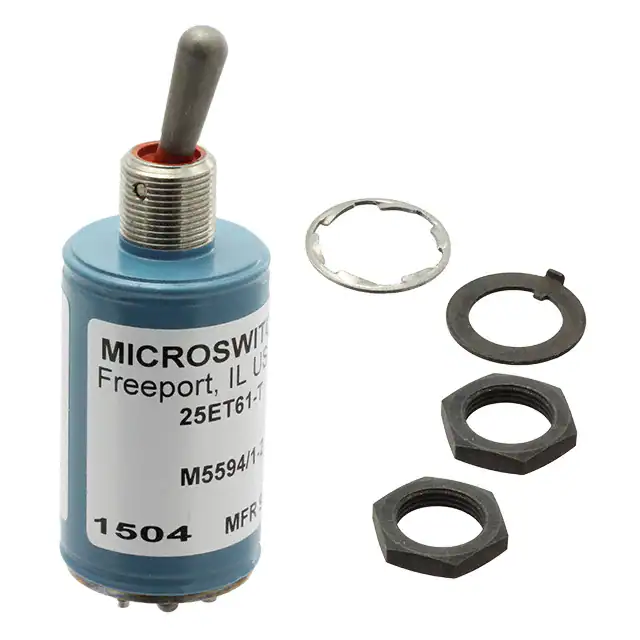

25ET61-TSWITCH TOGGLE SPDT 4A 28V |
2,717 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | SPDT | 4A (DC) | - | 28 V | On-Mom | Standard Round | 17.53mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | Magnetic Hold | -65°C ~ 71°C |
|
100DP3T1B3M2QESWITCH TOGGLE DPDT 5A 120V |
4,979 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP3T1B9M1QESWITCH TOGGLE SPDT 5A 120V |
3,777 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP1T2B3M6RESWITCH TOGGLE SPDT 0.4VA 20V |
2,719 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103MD9CQESWITCH TOGGLE SPDT 5A 120V |
4,816 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWSP1T1B1M7REHSWITCH TOGGLE SPDT 0.4VA 20V |
4,446 |
|
Datasheet |
100A | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

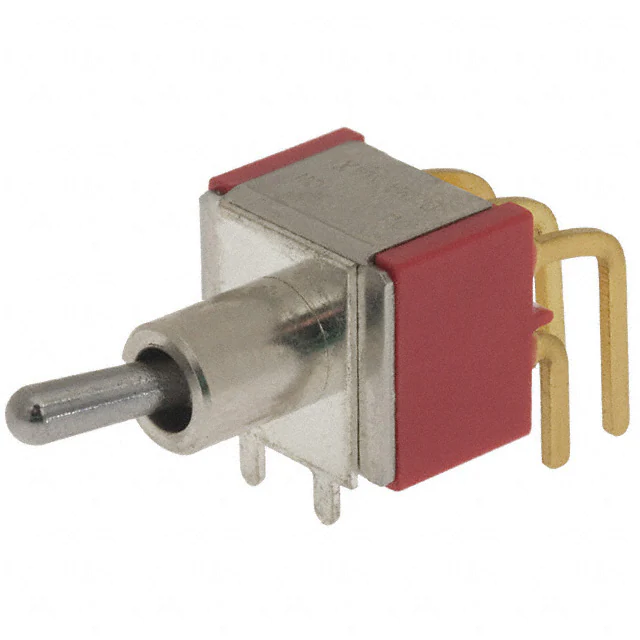

2M1-DP1-T2-B4-M6RESWITCH TOGGLE DPDT 0.4VA 20V |
3,249 |
|
Datasheet |
2M | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
A23EPSWITCH TOGGLE DPDT 0.4VA 28V |
2,974 |
|
Datasheet |
A | Tray | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Flatted | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
7101DSWITCH TOGGLE SPDT 6A 125V |
1,046 |
|
Datasheet |
7100 | Bulk | Active | Panel Mount | SPDT | 6A (AC) | 125 V | - | On-On | Standard Round | 14.27mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | - | - | -10°C ~ 65°C |
