| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C3922BAAAASWITCH TOGGLE SPDT 20A 250V |
2,011 |
|
Datasheet |
3900 | - | Active | Panel Mount | SPDT | 20A (AC) | 250 V | - | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | - |
|
472121020311SWITCH TOGGLE SPDT 1A 30V |
3,758 |
|
Datasheet |
WS-TOTV | Tray | Active | Panel Mount | SPDT | 1A (DC) | - | 30 V | On-On | Standard Round | 7.30mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -40°C ~ 85°C |
|
B22KVSWITCH TOGGLE DPDT 0.4VA 28V |
1,783 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Lever for Cap | 5.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
472121020421SWITCH TOGGLE SPDT 1A 30V |
3,565 |
|
Datasheet |
WS-TOTV | Tray | Active | Through Hole, Right Angle | SPDT | 1A (DC) | - | 30 V | On-On | Standard Round | 6.70mm | Non-Illuminated | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
3-1825142-1SWITCH TOGGLE SPDT 5A 120V |
2,334 |
|
Datasheet |
Gemini AE | Bulk | Active | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
472123020421SWITCH TOGGLE SPDT 1A 30V |
3,137 |
|
Datasheet |
WS-TOTV | Tray | Active | Through Hole, Right Angle | SPDT | 1A (DC) | - | 30 V | On-Off-On | Standard Round | 7.00mm | Non-Illuminated | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
8J2011-ZSWITCH TOGGLE DPDT 6A 125V |
4,639 |
|
Datasheet |
8J | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.80mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
A13JVSWITCH TOGGLE SPDT 0.4VA 28V |
2,273 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
MN12SS1W03SWITCH TOGGLE 6A 125V |
3,192 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | - |
|
|
MN12SS4W01SWITCH TOGGLE |
1,045 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
MN13SS1W03SWITCH TOGGLE SPDT 6A 125V |
2,651 |
|
Datasheet |
M | Bulk | Active | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | - | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
A18KH-ABSWITCH TOGGLE SPDT 0.4VA 28V |
4,543 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | White Actuator | -30°C ~ 85°C |
|
|
MN11SS1W03-BASWITCH TOGGLE |
4,284 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|

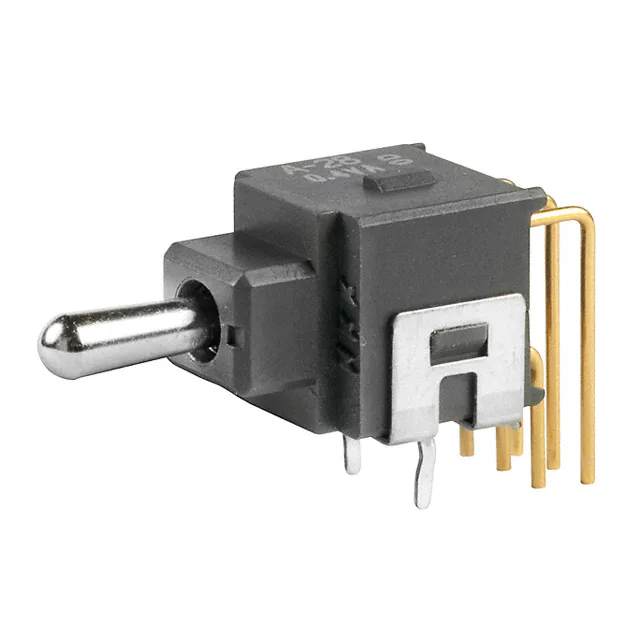

A28JH/328SWITCH TOGGLE DPDT 0.4VA 28V |
1,155 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Low Temperature Lubricant | -30°C ~ 85°C |
|
|
MN11SS1W01-BCSWITCH TOGGLE |
4,871 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
MN11SS1W01-BASWITCH TOGGLE |
3,895 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
MN12SA2W13SWITCH TOGGLE |
2,071 |
|
Datasheet |
M | Bulk | Active | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 12.27mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
MN11BB1W01SWITCH TOGGLE |
4,445 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
MN15SS1W03SWITCH TOGGLE |
1,119 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
MN15SS4W01SWITCH TOGGLE |
3,874 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
