| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100DP2T1B3M2QESWITCH TOGGLE DPDT 5A 120V |
3,979 |
|
Datasheet |
100 | Bulk | Active | Through Hole | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP5T2B5M1QESWITCH TOGGLE SPDT 5A 120V |
4,911 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Standard Round | 5.08mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200AWMSP2T1A1M7QESwitches |
3,619 |
|
Datasheet |
200A | Bulk | Active | Through Hole, Right Angle | SPDT | 3A (AC/DC) | 120 V | 28 V | On-Mom | Standard Round | 10.16mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
200MSP1T2B3M6QEHSWITCH TOGGLE SPDT 3A 120V |
2,363 |
|
Datasheet |
200 | Tray | Active | Panel Mount, Right Angle | SPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1T2B3M3RESWITCH TOGGLE SPDT 0.4VA 20V |
3,957 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | Quick Connect - 0.062" (1.5mm) | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP1T1B3M1QEHSWITCH TOGGLE DPDT 3A 120V |
3,697 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | DPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP4T1B1M2QEHSWITCH TOGGLE DPDT 5A 120V |
1,615 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP3T2B1M1QEHSWITCH TOGGLE SPDT 3A 120V |
3,984 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | SPDT | 3A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T1B5M1QEHSWITCH TOGGLE DPDT 5A 120V |
2,076 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP3T2B1M2QEHSWITCH TOGGLE SPDT 3A 120V |
1,430 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | SPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP3T6B11M3QEHSWITCH TOGGLE SPDT 5A 120V |
3,922 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | - | Quick Connect - 0.062" (1.5mm) | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWSP1T3B4M7QESWITCH TOGGLE SPDT 5A 120V |
2,319 |
|
Datasheet |
100A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 16.12mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1T2B9M2RESWITCH TOGGLE SPDT 0.4VA 20V |
2,829 |
|
Datasheet |
100 | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1T1B5VS2RESwitches |
2,190 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
100SP2T2B1M6REHSWITCH TOGGLE SPDT 0.4VA 20V |
1,465 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

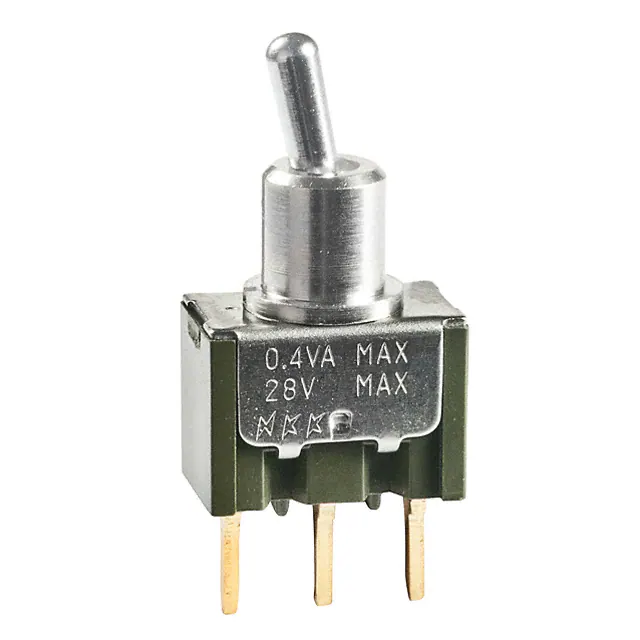

M2012S2A2G03SWITCH TOGGLE SPDT 0.4VA 28V |
3,755 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200AWMSP3T2A1M2RESWITCH TOGGLE SPDT 0.4VA 20V |
1,378 |
|
Datasheet |
200A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 6.10mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWDP3T1B4M6QESWITCH TOGGLE DPDT 5A 120V |
2,628 |
|
Datasheet |
100A | Bulk | Active | Through Hole, Right Angle | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP2T1B1M1QESWITCH TOGGLE SPDT 3A 120V |
4,007 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | SPDT | 3A (AC/DC) | 120 V | 28 V | On-Mom | Standard Round | 9.40mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP2T2B1M1QESWITCH TOGGLE SPDT 3A 120V |
3,152 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | SPDT | 3A (AC/DC) | 120 V | 28 V | On-Mom | Standard Round | 5.33mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
