| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2022S2A2W13SWITCH TOGGLE DPDT 6A 125V |
1,791 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022S3S1W13SWITCH TOGGLE DPDT 6A 125V |
3,690 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ST121D00SWITCH TOGGLE SPST 20A 125V |
4,076 |
|
Datasheet |
ST1 | Bulk | Active | Panel Mount | SPST | 20A (AC) | 125 V | - | On-Off | Standard Round | 19.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|
|
100AWDP5T1B4M1QESWITCH TOGGLE DPDT 5A 120V |
4,312 |
|
Datasheet |
100A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP2T3B4M7QESWITCH TOGGLE SPDT 3A 120V |
4,331 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 3A (AC/DC) | 120 V | 28 V | On-Mom | Standard Round | 7.37mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWSP5T1B4M2RESWITCH TOGGLE SPDT 0.4VA 20V |
3,721 |
|
Datasheet |
100A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWSP5T2B4M2RESWITCH TOGGLE SPDT 0.4VA 20V |
4,614 |
|
Datasheet |
100A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 7.62mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP5T6B11M1REHSWITCH TOGGLE DPDT 0.4VA 20V |
2,905 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Flat Anti-Rotation | 12.29mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP3T2B2M7QESWITCH TOGGLE SPDT 3A 120V |
3,684 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 3A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWSP1T1B4M7QESWITCH TOGGLE SPDT 5A 120V |
4,706 |
|
Datasheet |
100A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWSP1T2B4M7QESWITCH TOGGLE SPDT 5A 120V |
3,478 |
|
Datasheet |
100A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP5T3B4M6RESWITCH TOGGLE SPDT 0.4VA 20V |
2,273 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 13.97mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP4T4B9VS3REHSWITCH TOGGLE SPDT 0.4VA 20V |
3,931 |
|
Datasheet |
100 | Tray | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 16.26mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP4T4B4M6QEHSWITCH TOGGLE SPDT 3A 120V |
3,835 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle | SPDT | 3A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022E2S1W01SWITCH TOGGLE DPDT 6A 125V |
2,383 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 6.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

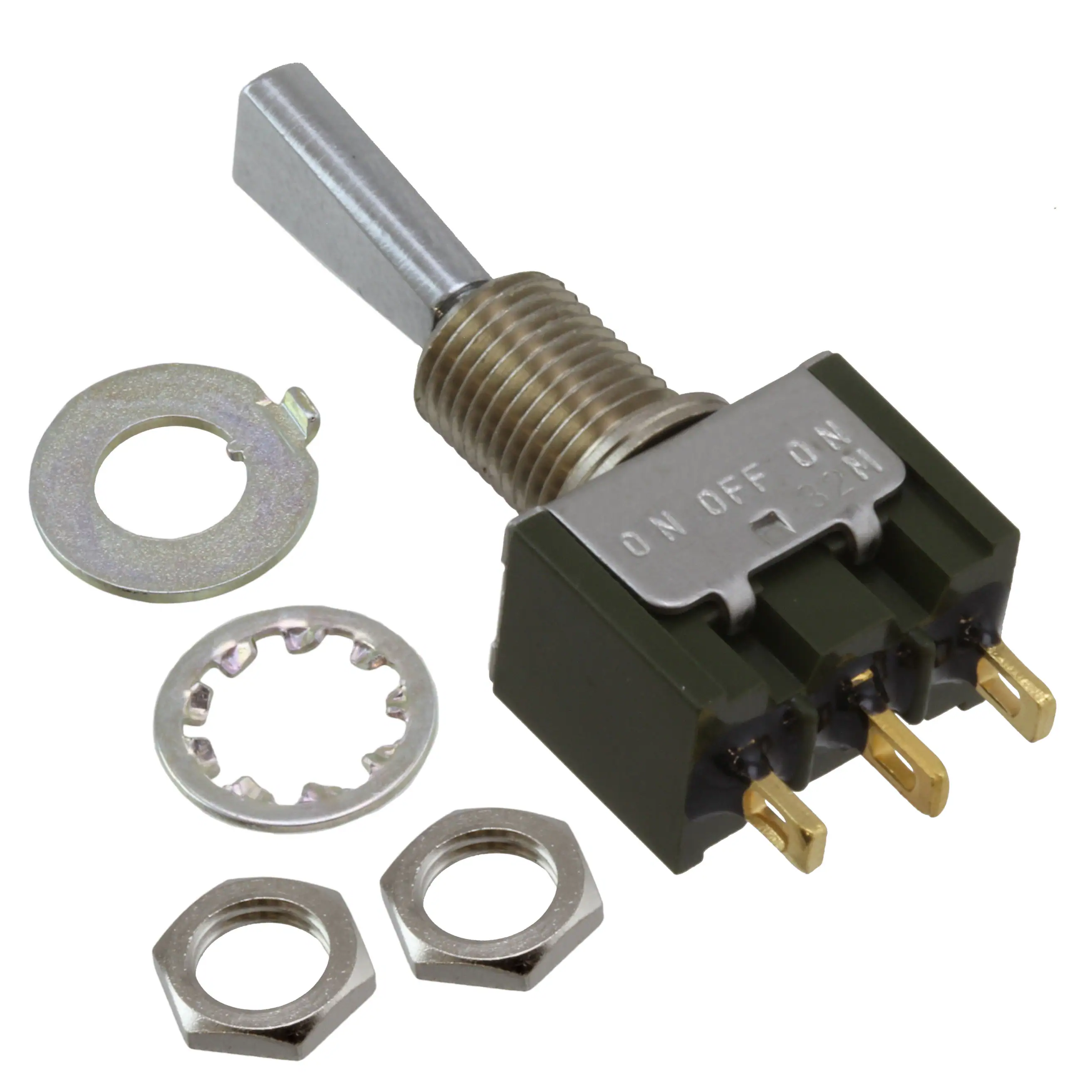

M2019ED1G01SWITCH TOGGLE SPDT 0.4VA 28V |
3,413 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP5T6B11M2QESWITCH TOGGLE SPDT 5A 120V |
4,914 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Flat Anti-Rotation | 12.29mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP4T4B9M2QESWITCH TOGGLE DPDT 5A 120V |
1,332 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 16.26mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP3T1B1M7QEHSWITCH TOGGLE DPDT 3A 120V |
2,918 |
|
Datasheet |
200 | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | 3A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWSP3T1B4M6QESWITCH TOGGLE SPDT 5A 120V |
1,595 |
|
Datasheet |
100A | Bulk | Active | Through Hole, Right Angle | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
