| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ST115D00SWITCH TOGGLE SPDT 20A 125V |
4,120 |
|
Datasheet |
ST1 | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 125 V | - | On-Off-On | Standard Round | 19.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.187" (4.7mm) | M12 x 1 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|
|
100SP1T7B13VS2RESWITCH TOGGLE SPDT 0.4VA 20V |
4,648 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 12.98mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1T8B13VS2RESWITCH TOGGLE SPDT 0.4VA 20V |
1,882 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 17.98mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

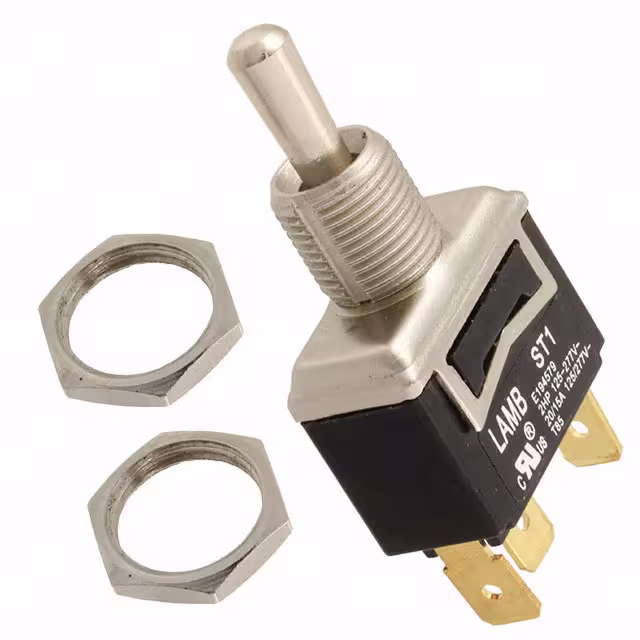

ST145D10SWITCH TOGGLE SPDT 20A 125V |
2,465 |
|
Datasheet |
ST1 | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 125 V | - | On-Off-On | Standard Round | 13.00mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|
S4012SWITCH TOGGLE SPDT 6A 125V |
1,678 |
|
Datasheet |
S | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 12.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
ST24JD02Switches |
3,998 |
|
Datasheet |
ST2, LAMB | Bulk | Active | Panel Mount | DPDT | 20A (AC) | 125 V | - | On-Off-Mom | Standard Round | 21.34mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|
|
100DP8T6B11M6RESWITCH TOGGLE DP3T 0.4VA 20V |
1,956 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle | SP3T | 0.4VA (AC/DC) | 20 V | 20 V | Mom-On-Mom | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
100AWDP1T2B4M6QESWITCH TOGGLE DPDT 5A 120V |
4,787 |
|
Datasheet |
100A | Bulk | Active | Through Hole, Right Angle | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP4T6B12M6RESWITCH TOGGLE SPDT 0.4VA 20V |
1,065 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP3T4B6M2QESWITCH TOGGLE DPDT 3A 120V |
1,965 |
|
Datasheet |
200 | Tray | Active | Through Hole | DPDT | 3A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022S3S1W40SWITCH TOGGLE DPDT 6A 125V |
1,632 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2011LL3G01SWITCH TOGGLE SPST 0.4VA 28V |
1,264 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Locking Lever | 16.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP3T6B11VS5QEHSWITCH TOGGLE DPDT 5A 120V |
4,424 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200AWMSP4T2A1M2RESWITCH TOGGLE SPDT 0.4VA 20V |
1,329 |
|
Datasheet |
200A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 6.10mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP5T6B12M51RESWITCH TOGGLE SPDT 0.4VA 20V |
4,374 |
|
Datasheet |
100 | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP6T6B11M1QESWITCH TOGGLE DP3T 5A 120V |
4,882 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Flat Anti-Rotation | 12.29mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
100SP1K1B25M7QEHSWITCH TOGGLE SPDT 5A 120V |
2,291 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 14.40mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP2T2B1M6RESWITCH TOGGLE DPDT 0.4VA 20V |
3,806 |
|
Datasheet |
200 | Bulk | Active | Panel Mount, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP6T4B8M61QEHSWITCH TOGGLE SP3T 5A 120V |
3,161 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 16.26mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
200MSP6T3B5M1RESWITCH TOGGLE SPST 0.4VA 20V |
3,386 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | SPST | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard Round | 5.08mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
