| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A1SHWSWITCH TOGGLE SPDT 0.4VA 28V |
1,181 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Flatted | 6.30mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
34CMDP31B2M6RTSWITCH TOGGLE DPDT 0.4VA 20V |
2,852 |
|
Datasheet |
34C | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2M1-DP4-T1-B1-M2QESWITCH TOGGLE DPDT 5A 125V |
1,718 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 10.40mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP5-T1-B1-M2QESWITCH TOGGLE DPDT 5A 125V |
3,034 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-Mom | Standard Round | 10.39mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2MS-WDP1-T1-B1-M1RESWITCH TOGGLE DPDT 0.4VA 20V |
1,015 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.69mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012S2D1W01SWITCH TOGGLE SPDT 6A 125V |
1,676 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012S2D1W01/CULSWITCH TOGGLE SPDT 6A 125V |
4,932 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2013S3S1W01SWITCH TOGGLE SPDT 6A 125V |
1,557 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 6.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101SD8V6QETOGGLE SWITCHES |
2,974 |
|
Datasheet |
7000 | Tray | Active | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 12.45mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
34ADP31B1M7QTSWITCH TOGGLE DPDT 5A 125V |
2,825 |
|
Datasheet |
34A | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
1004P6T7B13M1QEHSWITCH TOGGLE DP3T 5A 120V |
4,203 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 13.00mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
1004P6T8B13M1QEHSWITCH TOGGLE DP3T 5A 120V |
3,542 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 18.00mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
34ADP11B3V3QTSWITCH TOGGLE DPDT 5A 125V |
4,102 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 12.19mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
34ADP11B4M7RTSWITCH TOGGLE DPDT 0.4VA 20V |
4,884 |
|
Datasheet |
34A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|

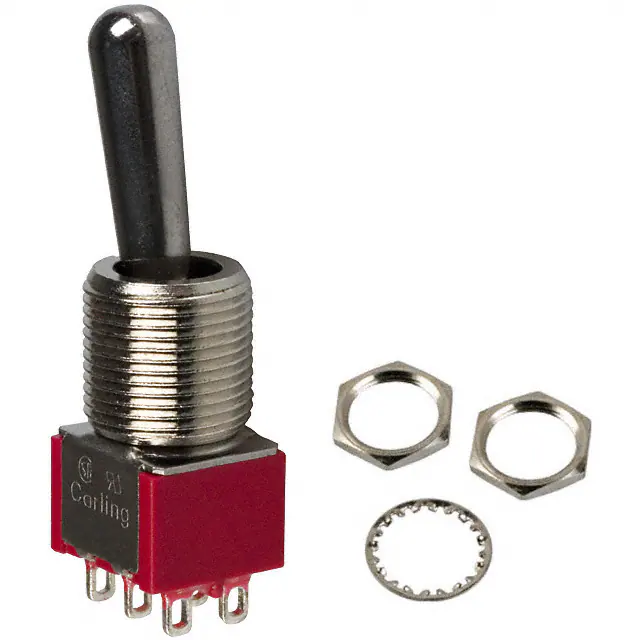

2M1-DP1-T8-B0-M1QESWITCH TOGGLE DPDT 5A 125V |
3,115 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP1-T7-B0-M2QESWITCH TOGGLE DPDT 5A 125V |
3,923 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Anti-Rotation | 11.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2SM-MSP3-P1-S6KESWITCH TOGGLE SPDT 0.4VA 20V |
1,272 |
|
Datasheet |
2S | Bulk | Active | Surface Mount, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 10.80mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | SMD (SMT) Tab | Unthreaded | - | - | -30°C ~ 85°C |
|
B29KWSWITCH TOGGLE DPDT 0.4VA 28V |
1,589 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Lever for Cap | 5.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A107KAV2QSWITCH TOGGLE SPDT 5A 120V |
3,129 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Locking Lever | 16.51mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
|
B18JHSWITCH TOGGLE SPDT 0.4VA 28V |
1,879 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
