| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A12AH-GCSWITCH TOGGLE SPDT 0.4VA 28V |
3,277 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Red Cap | -30°C ~ 85°C |
|
|
2S1-MDP3-T3-B1-M6GESWITCH TOGGLE DPDT 3A 125V |
1,904 |
|
Datasheet |
2S | Bulk | Active | Panel Mount | DPDT | 3A (AC) | 125 V | 28 V | On-Off-On | Standard Round | 7.90mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 10-48 | Circular - 4.95mm Dia | - | -30°C ~ 85°C |
|
|
2M1-DP3-T6-B1-M6KESWITCH TOGGLE DPDT 0.4VA 20V |
2,688 |
|
Datasheet |
2M | Bulk | Active | Panel Mount, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Flatted | 12.10mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1004P3T6B15M1QEHSWITCH TOGGLE 4PDT 5A 120V |
2,731 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 4PDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP1LB9M1GTSWITCH TOGGLE SPDT 5A 125V |
4,590 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Locking Lever | 21.34mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
M2019SS1G01SWITCH TOGGLE SPDT 0.4VA 28V |
1,758 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
DA945-BB-BSWITCH TOGGLE SPST |
2,019 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPST | - | - | - | On-Off | Standard Round | - | Non-Illuminated | - | - | - | Wire Leads | - | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
7108L2D9AV2BESWITCH TOGGLE SPDT 0.4VA 20V |
3,822 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 15.75mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7103SD9CQESWITCH TOGGLE SPDT 5A 28V |
4,053 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 12.45mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
TL36Y010000TOGGLE SWITCH SMT TL PCB MOUNT |
3,802 |
|
Datasheet |
TL | Bulk | Active | Through Hole | SPDT | 500mA (AC/DC) | 48 V | 48 V | On-On | Standard Round | 5.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
7107SDV3QESWITCH TOGGLE SPDT 5A 28V |
1,850 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Standard Round | 12.45mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
7101MHZGESWITCH TOGGLE SPDT 5A 120V |
4,843 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ADP36T1M6GTSWITCH TOGGLE DPDT 5A 125V |
1,669 |
|
Datasheet |
34A | Bulk | Active | Panel Mount, Right Angle | DPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Flatted | 11.43mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
A211SYZQSWITCH TOGGLE SP3T 5A 120V |
4,814 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -20°C ~ 85°C |
|
|
5232CDBSWITCH TOGGLE SPDT 0.4VA 20V |
2,062 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5239WABSWITCH TOGGLE SPDT 6A 125V |
2,870 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5637ABULCSASWITCH TOGGLE SPDT 6A 125V |
3,165 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
A11KB1SWITCH TOGGLE SPST 0.4VA 28V |
2,215 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Lever for Cap | 5.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

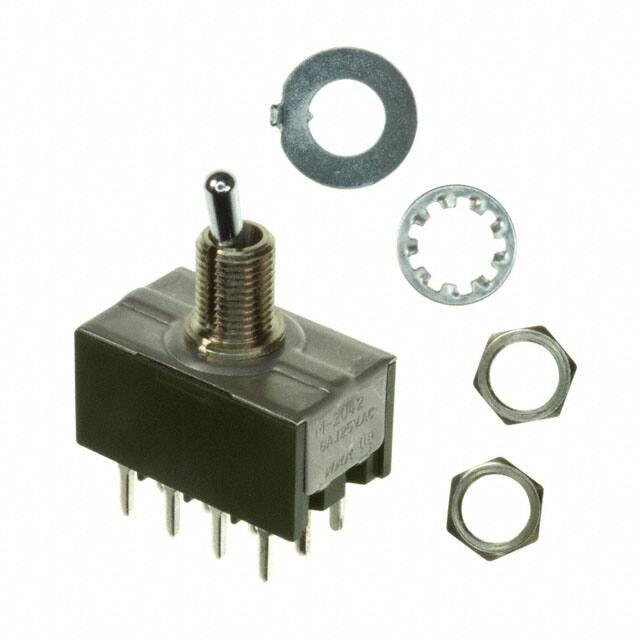

M2042S3S1W03SWITCH TOGGLE 4PDT 6A 125V |
4,579 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1004P1T8B13M2REHSWITCH TOGGLE 4PDT 0.4VA 20V |
3,254 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 4PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 18.00mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
