| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2GA50-73SWITCH TOGGLE SPST 15A 125V |
1,700 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2GA51-D-2B-BSWITCH TOGGLE SPST 15A 125V |
3,226 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | - | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2FA53-73/TABS/2 HEXSWITCH TOGGLE SPST 15A 125V |
2,028 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
2GA51-D-2W-BSWITCH TOGGLE SPST 15A 125V |
3,462 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2M1-SP4-T6-BB-VS2GESWITCH TOGGLE SPDT 5A 125V |
2,227 |
|
Datasheet |
2M | Bulk | Active | Through Hole | SPDT | 5A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Flatted | 12.10mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7105MD9V3BESWITCH TOGGLE SPDT 0.4VA 20V |
3,748 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A1SAVSWITCH TOGGLE SPDT 0.4VA 28V |
3,063 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
A15KBSWITCH TOGGLE SPDT 0.4VA 28V |
3,069 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Lever for Cap | 5.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
7107MDCGESWITCH TOGGLE SPDT 5A 120V |
1,155 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TT11DGPC1SWITCH TOGGLE SPDT 0.4VA 20V |
3,571 |
|
Datasheet |
TT | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.61mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7108P3YW3BESWITCH TOGGLE SPDT 0.4VA 20V |
1,392 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP5-T7-B0-M1GESWITCH TOGGLE DPDT 5A 125V |
3,245 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-Mom | Anti-Rotation | 11.68mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

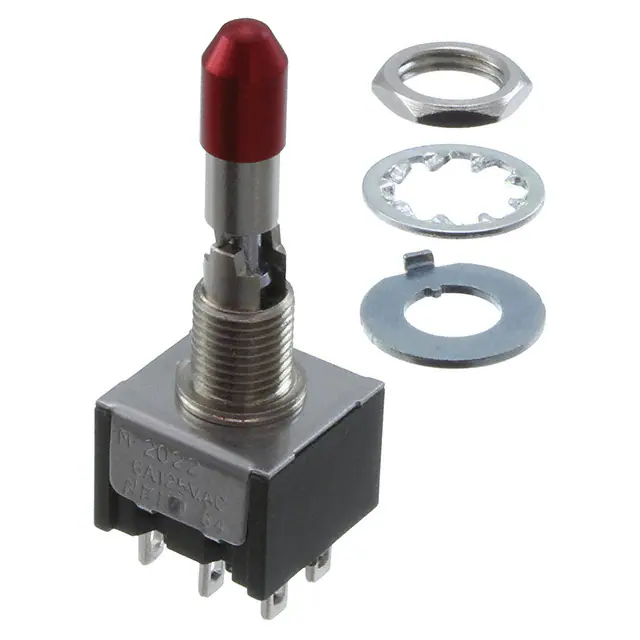

M2022LL1W01-CSWITCH TOGGLE DPDT 6A 125V |
3,049 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Red Cap | -30°C ~ 85°C |
|
A28KWSWITCH TOGGLE DPDT 0.4VA 28V |
4,510 |
|
Datasheet |
A | Tube | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Lever for Cap | 5.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
DA105-BB-BSWITCH TOGGLE SPST 10A 125V |
4,404 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPST | 10A (AC) | 125 V | - | On-Off | Standard Round | - | Non-Illuminated | - | - | - | Wire Leads | - | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
DA105-PB-BSWITCH TOGGLE SPST 10A 125V |
3,489 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPST | 10A (AC) | 125 V | - | On-Off | Paddle | 17.45mm | Non-Illuminated | - | - | - | Wire Leads | - | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|

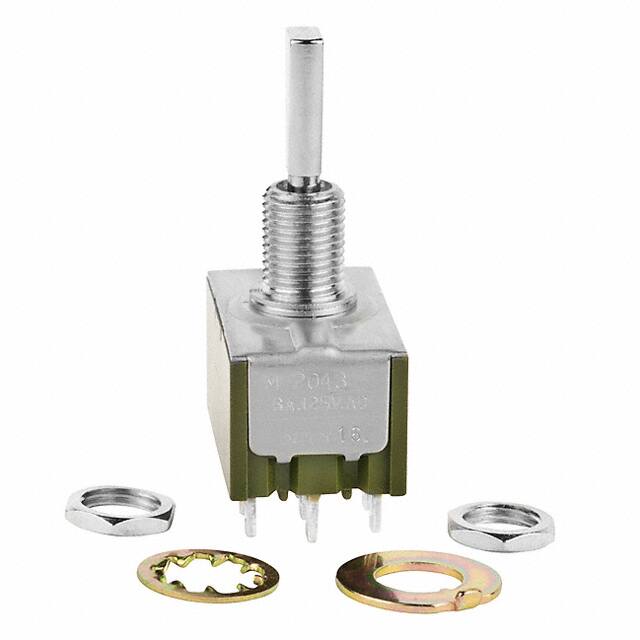

M2043ES1W01SWITCH TOGGLE 4PDT 6A 125V |
3,235 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5237CDSWITCH TOGGLE SPDT 0.4VA 20V |
4,709 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
5236WWASWITCH TOGGLE SPDT 6A 125V |
4,840 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
1-1571926-5SWITCH TOGGLE DPDT 6A 125V |
1,074 |
|
Datasheet |
MTG Green | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.94mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
