| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B22KP-AGSWITCH TOGGLE DPDT 0.4VA 28V |
2,905 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Blue Actuator | -30°C ~ 85°C |
|
M2023LL3W03SWITCH TOGGLE DPDT 6A 125V |
3,336 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
T115F-FSWITCH TOGGLE SPDT 15A 250V |
2,967 |
|
Datasheet |
T-15 | Bulk | Active | Panel Mount | SPDT | 15A (AC/DC) | 250 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP40 | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -25°C ~ 70°C |
|

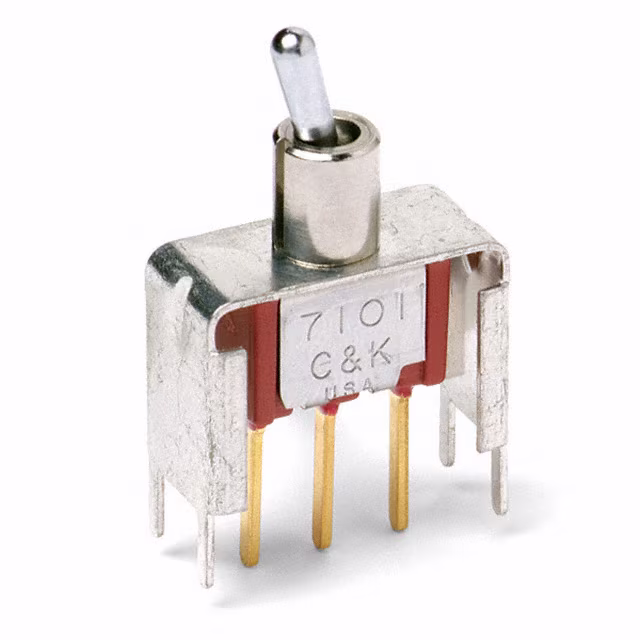

7101MD9V2BESWITCH TOGGLE SPDT 0.4VA 20V |
3,826 |
|
Datasheet |
7000 | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TL49P080400SWITCH TOGGLE DPDT 0.4VA 20V |
1,229 |
|
Datasheet |
TL | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 7.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7108SD9AV2BESWITCH TOGGLE SPDT 0.4VA 20V |
1,669 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 12.45mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T101LH9V3BESWITCH TOGGLE SPDT 0.4VA 20V |
3,658 |
|
Datasheet |
T | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 7.37mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2033SS1G01SWITCH TOGGLE 3PDT 0.4VA 28V |
4,282 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP3-T8-B0-VS2RESWITCH TOGGLE SPDT 0.4VA 20V |
1,440 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Anti-Rotation | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101SDZQISWITCH TOGGLE SPDT 5A 120V |
1,351 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 12.45mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Potted | -30°C ~ 85°C |
|
7105L1YZQESWITCH TOGGLE SPDT 5A 120V |
1,437 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 16.26mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5247ABSWITCH TOGGLE DPDT 6A 125V |
2,132 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5637ADBSWITCH TOGGLE SPDT 6A 125V |
1,351 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
1004P3T8B13M1QESWITCH TOGGLE 4PDT 5A 120V |
3,357 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 4PDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 18.00mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E101MF1V3BESWITCH TOGGLE SPDT 0.4VA 20V |
3,906 |
|
Datasheet |
E | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | ESD Conductive Bushing | -30°C ~ 85°C |
|
|
7103LHZQESWITCH TOGGLE SPDT 5A 120V |
4,590 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 21.34mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022B2B3W01SWITCH TOGGLE DPDT 6A 125V |
3,732 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101SPYV3SESWITCH TOGGLE SPDT 5A 120V |
3,592 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET03MD1CQESWITCH TOGGLE SPDT 2A 120V |
1,764 |
|
Datasheet |
ET | Tray | Active | Through Hole | SPDT | 2A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 6.10mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5636AB25TOGGLE SWITCH 5000 MINIATURE |
1,044 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
