| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN28SS4W01SWITCH TOGGLE 6A 125V |
4,227 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | - | - |
|
|
MN21B2B1W01BUSHING MOUNT MINIATURE TOGGLE |
4,625 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
7107T2PZQESWITCH TOGGLE SPDT 5A 120V |
1,445 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Flat Anti-Rotation | 15.49mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5232WWTHCDB4NSWITCH TOGGLE SPDT 0.4VA 20V |
4,352 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Snap On Paddle | 9.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
E105MD1V3QESWITCH TOGGLE SPDT 7.5A 125V |
4,424 |
|
Datasheet |
E | Bulk | Active | Through Hole | SPDT | 7.5A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 7.62mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7103TCWCSESWITCH TOGGLE SPDT 5A 120V |
4,065 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5549ATOGGLE SWITCH 5000 MINIATURE |
2,055 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.20mm Dia | - | -40°C ~ 85°C |
|
|
7211SYZGESWITCH TOGGLE SP3T 5A 120V |
1,081 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
TL39WW00050SWITCH TOGGLE SPDT 0.4VA 20V |
2,240 |
|
Datasheet |
TL | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 5.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5649CDBSWITCH TOGGLE DPDT 0.4VA 20V |
2,958 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
G3T25ABSWITCH TOGGLE DPDT 0.4VA 28V |
3,068 |
|
Datasheet |
G3T | Bulk | Active | Surface Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 3.81mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
U15P3YZQESWITCH TOGGLE SPDT 5A 120V |
1,469 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2123TFW01SWITCH TOGGLE DPDT 6A 125V |
1,142 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 14.70mm | Illuminated | LED, Green | 2.2 VDC | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
7103P4YCBESWITCH TOGGLE SPDT 0.4VA 20V |
4,301 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101T1CQESWITCH TOGGLE SPDT 5A 120V |
1,080 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 12.37mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

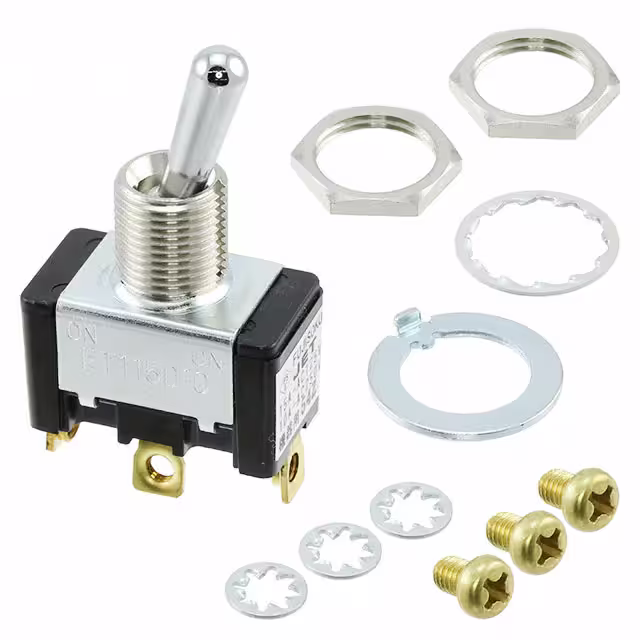

ET115D10-ZSWITCH TOGGLE SPDT 15A 125V |
2,153 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | SPDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
55052-01SWITCH TOGGLE SPST-NC 15A 24V |
3,500 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST-NC | 15A (DC) | - | 24 V | On-Mom | Standard Round | 38.10mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
|
C803HBSWITCH TOGGLE SPST |
1,257 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN13B2B1G01-VDMSWITCH TOGGLE |
2,788 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2GC720-D-2B-BSWITCH TOGGLE SPDT 20A 125V |
1,171 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 125 V | - | On-Off-On | Standard Round | - | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
