| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7105T1CWZQESWITCH TOGGLE SPDT 5A 120V |
3,829 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 12.37mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7107P1YCBESWITCH TOGGLE SPDT 0.4VA 20V |
3,355 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Flat Anti-Rotation | 21.33mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
5437WWABX386SWITCH TOGGLE SPDT 6A 125V |
4,287 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
7103K12V6QESWITCH TOGGLE SPDT 5A 120V |
2,373 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Locking Lever | 18.59mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T201STZBESWITCH TOGGLE DPDT 0.4VA 20V |
2,005 |
|
Datasheet |
T | Tray | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 7.11mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7215SDZQESWITCH TOGGLE SP3T 5A 120V |
1,905 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | Mom-On-Mom | Standard Round | 12.45mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
MTF206PASWITCH TOGGLE SP3T 6A 125V |
2,511 |
|
Datasheet |
MTF Green | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 4A (DC) | 125 V | 28 V | On-On-On | Flatted | 12.32mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Jumper needed to achieve triple throw | -20°C ~ 80°C |
|
|
2M1-SP1-TK-BJ-M2QESWITCH TOGGLE SPDT 5A 125V |
1,842 |
|
Datasheet |
2M | Bulk | Active | Through Hole | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | - | - | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | - | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

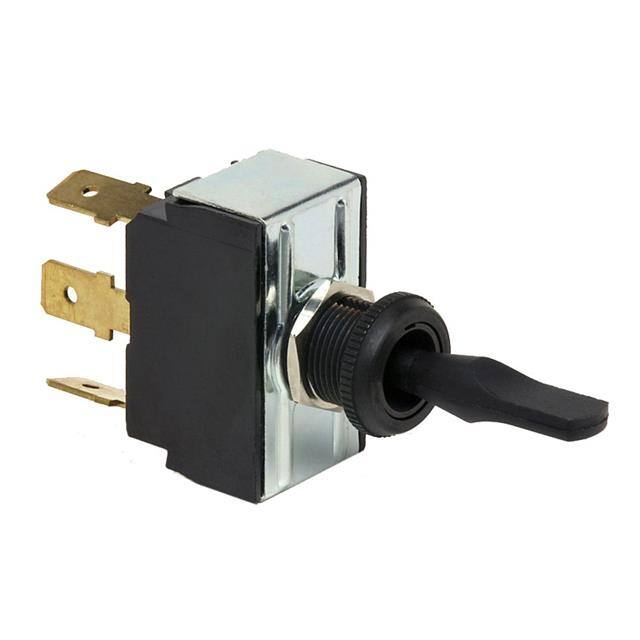

59024-106SWITCH TOGGLE SPDT 25A 12V |
4,676 |
|
Datasheet |
59024 | Bulk | Active | Panel Mount | SPDT | 25A (DC) | - | 12 V | On-Off-On | Paddle | 25.40mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
|
MN23SS2W13-BCSWITCH TOGGLE |
4,856 |
|
Datasheet |
M | Bulk | Active | Through Hole | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round with Cap | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
MN23SS2W13-CCSWITCH TOGGLE |
1,251 |
|
Datasheet |
M | Bulk | Active | Through Hole | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round with Cap | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
MN11LL1W01-ASWITCH TOGGLE |
2,688 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
MN25SS4W03SWITCH TOGGLE |
4,687 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
7103MPYZGESWITCH TOGGLE SPDT 5A 120V |
2,371 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Anti-Rotation | 5.08mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
T103MHCRESWITCH TOGGLE SPDT 2A 120V |
4,795 |
|
Datasheet |
T | Tray | Active | Panel Mount | SPDT | 2A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 5.44mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5936ADBTOGGLE SWITCH 5000 MINIATURE |
3,861 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
7105T1CQESWITCH TOGGLE SPDT 5A 120V |
3,921 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 12.37mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2GB53-NBL8SWITCH TOGGLE SPDT 15A 125V |
3,024 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | On-On | Paddle | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.187" (4.7mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
7207MD9AQESWITCH TOGGLE DPDT 5A 120V |
2,358 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7108P3DCQESWITCH TOGGLE SPDT 5A 28V |
1,719 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
