| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7201P3CWZQESWITCH TOGGLE DPDT 5A 120V |
2,846 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
SY238CD7TOGGLE SWITCH S PCB MOUNT |
2,237 |
|
Datasheet |
S | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 7.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -20°C ~ 85°C |
|
|
S238CD13TOGGLE SWITCH S PCB MOUNT |
1,647 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SY237CD13TOGGLE SWITCH S PCB MOUNT |
4,523 |
|
Datasheet |
S | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 13.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -20°C ~ 85°C |
|
|
5236WADB16X404TOGGLE SWITCH 5000 MINIATURE |
4,674 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
7109P3YZGESWITCH TOGGLE SPDT 5A 120V |
4,804 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103K12ZQESWITCH TOGGLE SPDT 5A 120V |
4,998 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Locking Lever | 18.59mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101MD9V3GESWITCH TOGGLE SPDT 5A 120V |
3,951 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5649A4NTOGGLE SWITCH 5000 MINIATURE |
1,577 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
7101TCWZBESWITCH TOGGLE SPDT 0.4VA 20V |
3,893 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7207SPYCQESWITCH TOGGLE DPDT 5A 120V |
1,736 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
110-62/TABS/2 HEXSWITCH TOGGLE SPST 6A 125V |
3,999 |
|
Datasheet |
110 | Bulk | Active | Panel Mount | SPST | 6A (AC/DC) | 125 V | 125 V | On-Off | Standard Round | 12.70mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
5232YCDBTOGGLE SWITCH 5000 MINIATURE |
1,787 |
|
Datasheet |
5000 | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
7101P3DCBE22SWITCH TOGGLE SPDT 0.4VA 20V |
3,940 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Black Actuator | -30°C ~ 85°C |
|

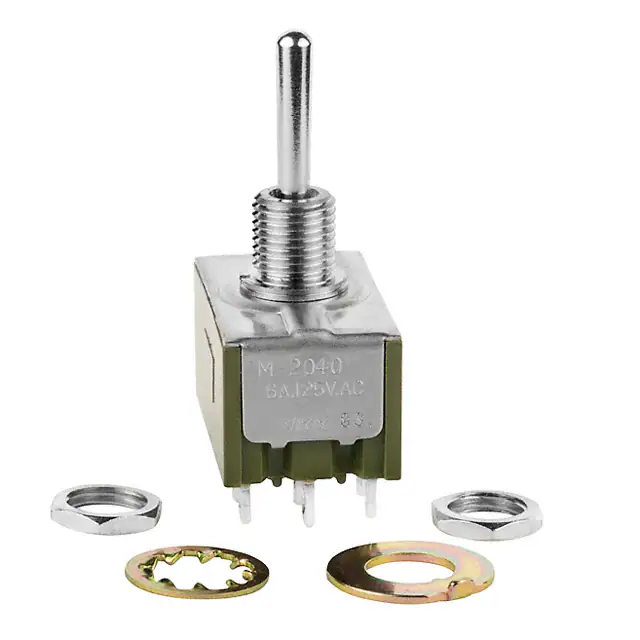

M2044SA1W01SWITCH TOGGLE DP3T 6A 125V |
1,339 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-On | Standard Round | 12.28mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
5646AB2SWITCH TOGGLE DPDT 6A 125V |
1,877 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 16.00mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
7201P3H3Z3BESWITCH TOGGLE DPDT 0.4VA 20V |
4,367 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flat Anti-Rotation | 10.92mm | Non-Illuminated | - | - | - | Quick Connect - 0.062" (1.5mm) | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022B2B1G01SWITCH TOGGLE DPDT 0.4VA 28V |
3,207 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5249ZABULCSASWITCH TOGGLE DPDT 6A 125V |
1,931 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.062" (1.5mm) | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
TT13D2TSWITCH TOGGLE SPDT 3A 125V |
3,036 |
|
Datasheet |
TT | Bulk | Obsolete | Panel Mount | SPDT | 3A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 7.52mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.83mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
