| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7211P3D9V31QESWITCH TOGGLE SP3T 5A 120V |
3,596 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
2M1-4P1-T1-B1-M2WESWITCH TOGGLE 4PDT |
4,365 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | 4PDT | - | - | - | On-On | Standard Round | 10.39mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5236WWAB9X445TOGGLE SWITCH 5000 MINIATURE |
2,038 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|

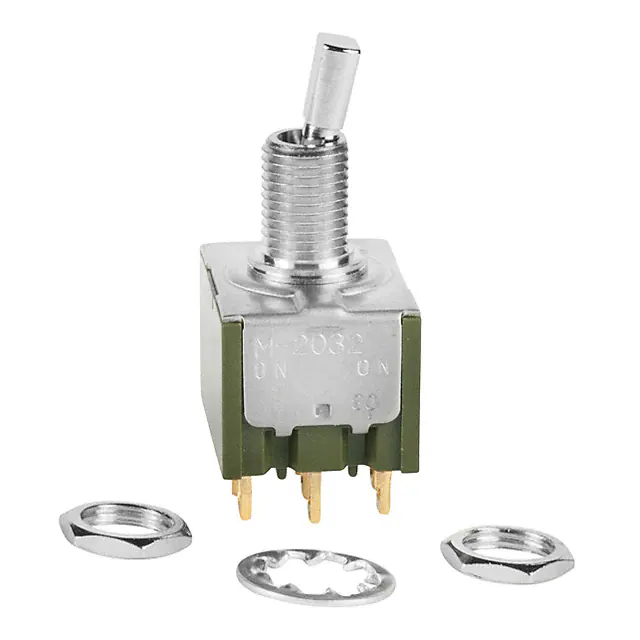

M2032E2D1G01SWITCH TOGGLE 3PDT 0.4VA 28V |
4,093 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 6.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MTG226PASWITCH TOGGLE SP3T 6A 125V |
1,353 |
|
Datasheet |
MTG Green | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 4A (DC) | 125 V | 28 V | On-On-On | Standard Round | 17.40mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.94mm Dia | Jumper needed to achieve triple throw | -20°C ~ 80°C |
|
T201P3T9ABESWITCH TOGGLE DPDT 0.4VA 20V |
1,485 |
|
Datasheet |
T | Tray | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flat Anti-Rotation | 12.45mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
S303/CULSWITCH TOGGLE SPDT 15A 125V |
2,368 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
7103K12CWAV2BE3SWITCH TOGGLE SPDT 0.4VA 20V |
2,383 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Locking Lever | 18.59mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Red Anodized | -30°C ~ 85°C |
|
|
7101K2CRESWITCH TOGGLE SPDT 5A 120V |
3,814 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7201TCWAV2BESWITCH TOGGLE DPDT 0.4VA 20V |
2,921 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
6GA5M-73SWITCH TOGGLE SPST-NC 15A 125V |
2,163 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPST-NC | 15A (AC) | 125 V | - | On-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
6GA5B-D-2B-B/HDW ASSMSWITCH TOGGLE SPST-NO 15A 125V |
1,055 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPST-NO | 15A (AC) | 125 V | - | Off-Mom | - | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
6GA5A-73SWITCH TOGGLE SPST-NO 15A 125V |
1,783 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPST-NO | 15A (AC) | 125 V | - | Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2GK61-52SWITCH TOGGLE DPST 6A 125V |
4,752 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPST | 6A (AC) | 125 V | - | On-Off | Standard Round | 10.31mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5642CDKBTOGGLE SWITCH 5000 MINIATURE |
1,413 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
5644TH2RCDBTOGGLE SWITCH 5000 MINIATURE |
3,809 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DP3T | 0.4VA (AC/DC) | 20 V | 20 V | Mom-On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
M2024S3A2A30SWITCH TOGGLE SP3T 6A 125V |
1,808 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-On | Standard Round | 8.28mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
4446A22TOGGLE SWITCH 4400 6A 125V |
4,613 |
|
Datasheet |
4400 | Bulk | Active | Panel Mount | DPDT | 6A (AC) | 125 V | - | On-On | Flatted | 13.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
|
M2022B2B1W03-VCSWITCH TOGGLE DPDT 6A 125V |
4,641 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | Red Cap | -30°C ~ 85°C |
|
E213MD9V91GESWITCH TOGGLE SP3T 7.5A 125V |
4,364 |
|
Datasheet |
E | Bulk | Active | Through Hole | SP3T | 7.5A (AC/DC) | 125 V | 28 V | On-On-Mom | Standard Round | 6.86mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
