Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
200MDP3T1B1M1QESWITCH TOGGLE DPDT 3A 120V |
195 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | DPDT | 3A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
CF-TA-1EB4-A12SWITCH TOGGLE SPDT 50MA 48V |
195 |
|
Datasheet |
CF-TA | Bulk | Active | Surface Mount, Right Angle | SPDT | 50mA (AC/DC) | 48 V | 48 V | On-Off-On | Standard Round | 6.00mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | - | -40°C ~ 85°C |
|
200MSP3T3B2M6RESWITCH TOGGLE SPDT 0.4VA 20V |
540 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 7.37mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1825136-8SWITCH TOGGLE SPDT 0.4VA 20V |
434 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
FT 1 D-VMSWITCH TOGGLE 1-POLE ON - ON |
600 |
|
Datasheet |
FT | Box | Active | Through Hole, Right Angle, Vertical | SPDT | 150mA (DC) | - | 25 V | On-On | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
FT 2 DSWITCH TOGGLE 2-POLE ON - ON |
600 |
|
Datasheet |
FT | Box | Active | Through Hole | DPDT | 150mA (DC) | - | 28 V | On-On | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|

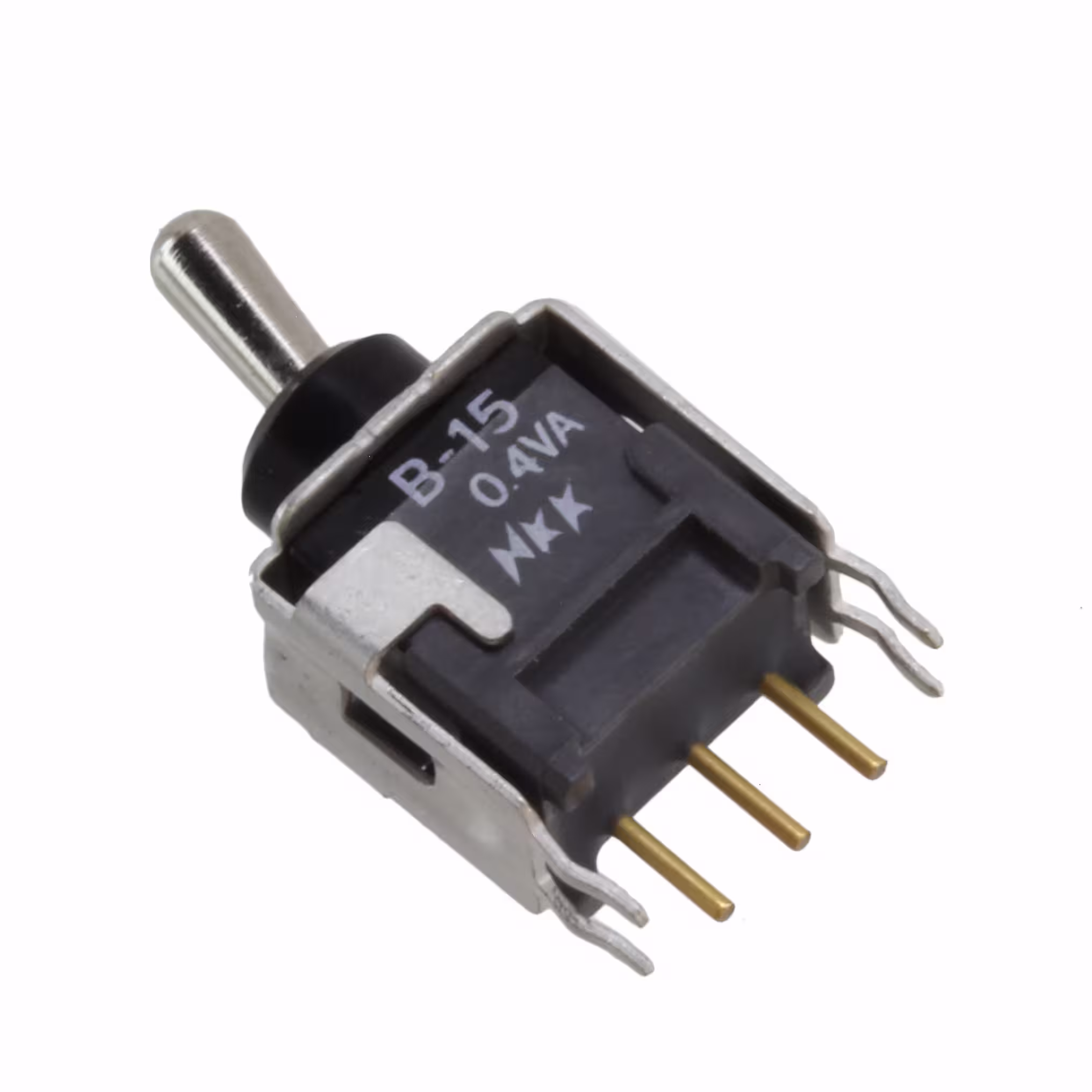

B15JBSWITCH TOGGLE SPDT 0.4VA 28V |
109 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

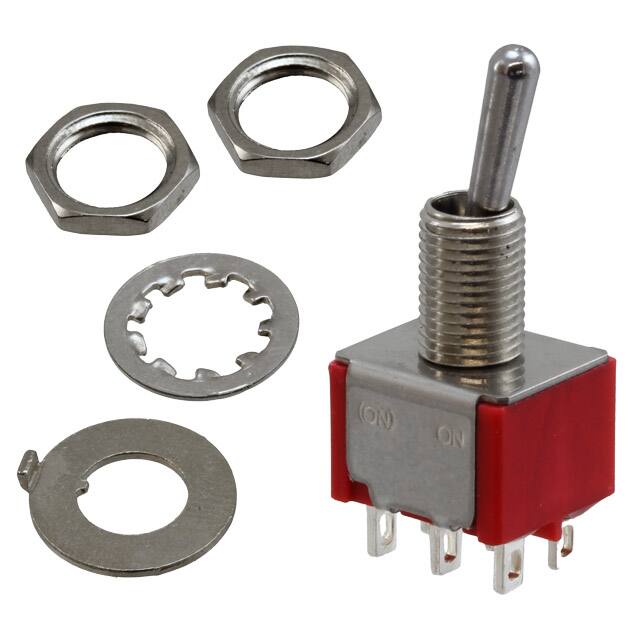

3-1825138-8SWITCH TOGGLE DPDT 5A 120V |
450 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

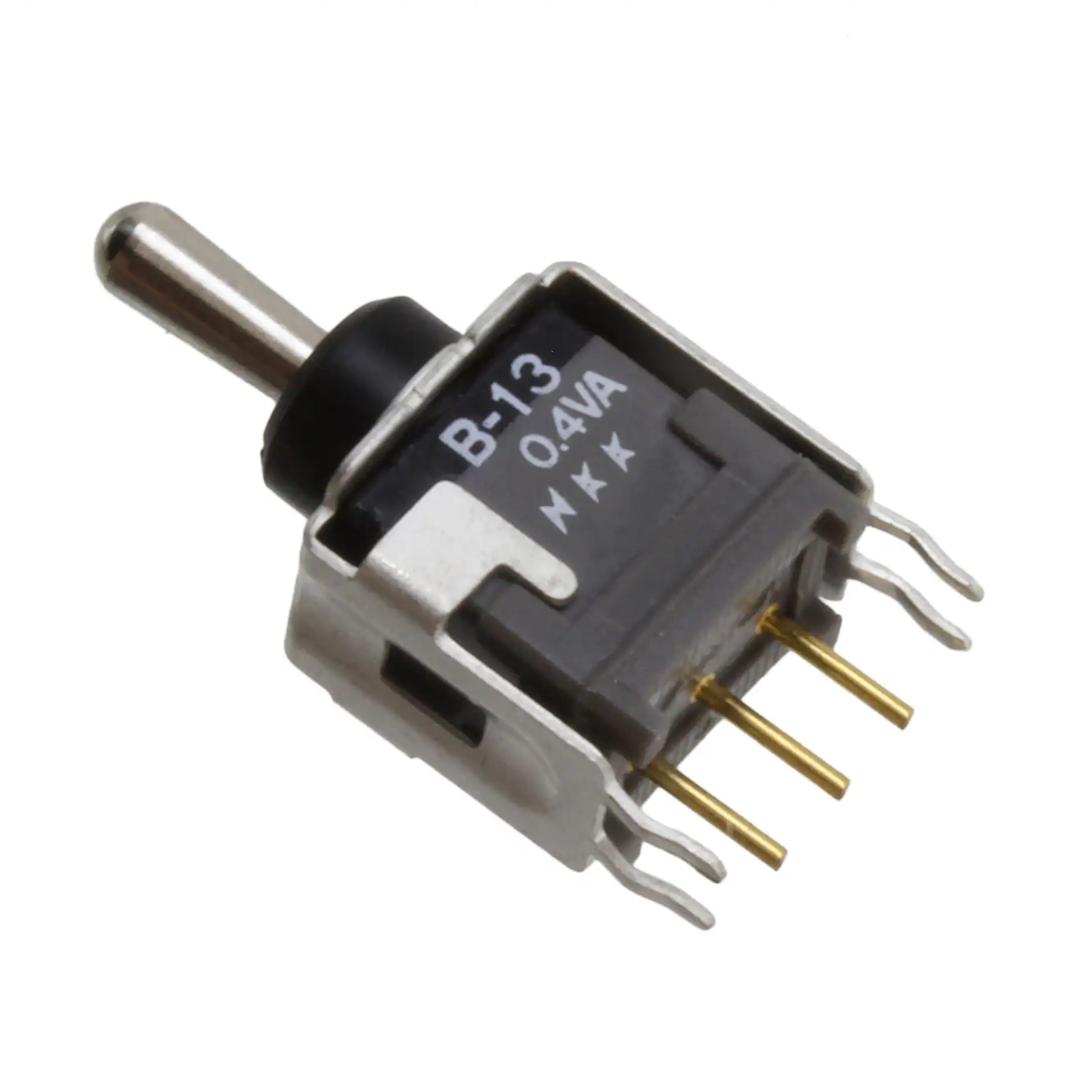

B13JBSWITCH TOGGLE SPDT 0.4VA 28V |
178 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
6-1825136-3SWITCH TOGGLE SPDT 5A 120V |
445 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
4-1825136-3SWITCH TOGGLE SPDT 5A 120V |
498 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount, Right Angle | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
033TEHSATABSWITCH TOGGLE SPDT 0.4VA 28V |
200 |
|
Datasheet |
033TE | Bag | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 7.30mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
SST 1 DB-RSWITCH TOGGLE ON - ON |
490 |
|
Datasheet |
SST | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 6.10mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Gull Wing | Unthreaded | - | - | -30°C ~ 85°C |
|
|
FT 2 D-VMSWITCH TOGGLE 2-POLE ON - ON |
600 |
|
Datasheet |
FT | Box | Active | Through Hole, Right Angle, Vertical | DPDT | 150mA (DC) | - | 25 V | On-On | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
FT 1 HSWITCH TOGGLE 1-POLE MOM OFF ON |
600 |
|
Datasheet |
FT | Box | Active | Through Hole | SPDT | 150mA (DC) | - | 28 V | Mom-Off-On | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
FT 1 ESWITCH TOGGLE 1-POLE ON OFF ON |
600 |
|
Datasheet |
FT | Box | Active | Through Hole | SPDT | 150mA (DC) | - | 28 V | On-Off-On | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
FT 1 DSWITCH TOGGLE 1-POLE ON - ON |
600 |
|
Datasheet |
FT | Box | Active | Through Hole | SPDT | 150mA (DC) | - | 28 V | On-On | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
033TBSSATCSSWITCH TOGGLE SPDT 3A 120V |
197 |
|
Datasheet |
033TB | Bag | Active | Through Hole | SPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 6.10mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
8F2012-ZSWITCH TOGGLE DPDT 6A 125V |
112 |
|
Datasheet |
8F | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | Splash Proof | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
ATE1E-6M3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
116 |
|
Datasheet |
ATE | Tray | Active | Through Hole, Right Angle | SPDT | 50mA (AC/DC) | 48 V | 48 V | On-Off-On | Standard Round | 6.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -20°C ~ 85°C |
