| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S331T/USWITCH TOGGLE DPST 15A 125V |
3,740 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPST | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
TL22SDAG015DSWITCH TOGGLE DPDT 0.4VA 28V |
1,812 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 11.00mm | Illuminated | LED, Amber | 2.1 VDC | IP65 - Dust Tight, Water Resistant | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
2GL56-78SWITCH TOGGLE DPDT 15A 125V |
4,839 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2GL56-78/2HEXSWITCH TOGGLE DPDT 15A 125V |
1,761 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2GM73-73SWITCH TOGGLE DPDT 17A 125V |
1,288 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 17A (AC) | 125 V | - | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.187" (4.7mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2GM56-78SWITCH TOGGLE DPDT 15A 125V |
4,157 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5639AKTOGGLE SWITCH 5000 MINIATURE |
3,924 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
7201P3YZQISWITCH TOGGLE DPDT 5A 120V |
2,146 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Potted | -30°C ~ 85°C |
|
7201K12CWZQESWITCH TOGGLE DPDT 5A 120V |
1,960 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 18.59mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7203P4YZQE22SWITCH TOGGLE DPDT 5A 120V |
2,364 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Black Actuator | -30°C ~ 85°C |
|
|
MN18B2B1W01-AT401HSWITCH TOGGLE |
4,940 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
MN18B2B1W01-AT401ASWITCH TOGGLE |
4,608 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
5237AKBTOGGLE SWITCH 5000 MINIATURE |
3,222 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
3547001N002SWITCH TOGGLE DPDT 15A 28V |
1,287 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | DPDT | 15A (AC/DC) | - | 28 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
|
6GC5S-78SWITCH TOGGLE SPDT 15A 125V |
3,768 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
6GC5E-78SWITCH TOGGLE SPDT 15A 125V |
1,978 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | On-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2GM51-73-XMSSWITCH TOGGLE DPDT 15A |
1,588 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
112-A-78SWITCH TOGGLE SPDT 3A 125V |
1,006 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7201K2ZGE2SWITCH TOGGLE DPDT 5A 120V |
3,266 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Black Anodized | -30°C ~ 85°C |
|

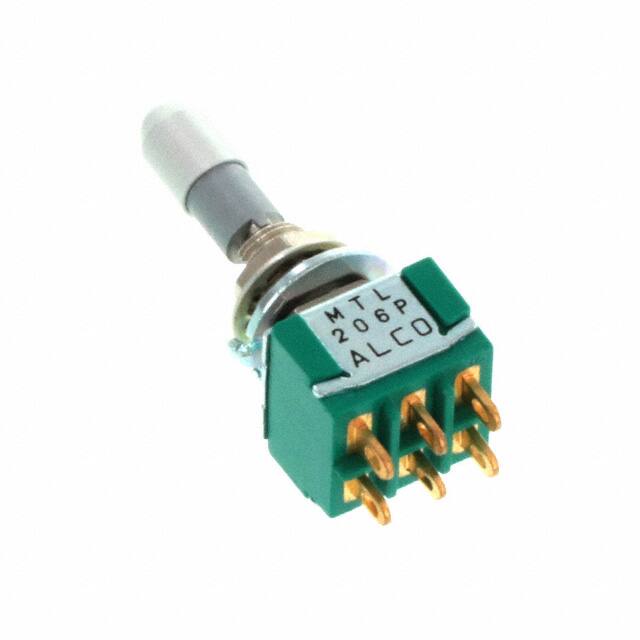

MTL206PASWITCH TOGGLE SP3T 6A 125V |
4,314 |
|
Datasheet |
MTL Green | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 4A (DC) | 125 V | 28 V | On-On-On | Locking Lever | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Jumper needed to achieve triple throw | -20°C ~ 80°C |
