| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

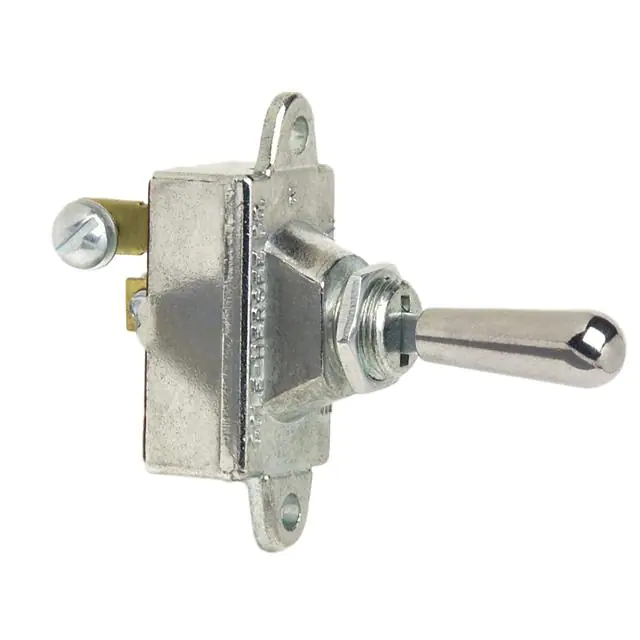

551841SWITCH TOGGLE SPST-NO 15A 24V |
2,549 |
|
Datasheet |
551 | Bulk | Obsolete | Panel Mount | SPST-NO | 15A (DC) | - | 24 V | Off-Mom | Standard Round | 26.92mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
5046ATOGGLE SWITCH 5000 MINIATURE |
2,526 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
2GM71-B3SWITCH TOGGLE DPDT 17A 125V |
3,983 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 17A (AC) | 125 V | - | On-Off-On | Standard Round | 31.75mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5236WAKBF37X1198SWITCH TOGGLE SPDT 6A 125V |
3,340 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | - | - | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Front Panel Sealing | -40°C ~ 85°C |
|
|
A127P31YAV2BSWITCH TOGGLE SPDT 0.5VA 28V |
3,748 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | 0.5VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Flatted | 11.38mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | - | - | - |
|
|
7207TPZQESWITCH TOGGLE DPDT 5A 120V |
3,723 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Anti-Rotation | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
6FA63-E3SWITCH TOGGLE SPST-NO 6A 125V |
2,370 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPST-NO | 6A (AC) | 125 V | - | Off-Mom | Standard Round | 50.80mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
7301SH3ZQESWITCH TOGGLE 3PDT 5A 120V |
3,682 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.16mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN24BB1G03-AT402SBUSHING MOUNT MINIATURE TOGGLE |
2,301 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN22E2S2G30ANGLE PC MOUNT MINIATURE TOGGLE |
3,461 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
639H/26TOGGLE SWITCH 600H HIGH POWER |
1,401 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5637ADGBTOGGLE SWITCH 5000 MINIATURE |
3,621 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
S332F/USWITCH TOGGLE DPDT 25A 125V |
4,903 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPDT | 25A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
7201TPV3QESWITCH TOGGLE DPDT 5A 120V |
4,654 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Anti-Rotation | 17.45mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5636ADB2VTOGGLE SWITCH 5000 MINIATURE |
3,562 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
S31/CULSWITCH TOGGLE 3PST 20A 125V |
2,847 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
MN28SS2W40ANGLE PC MOUNT MINIATURE TOGGLE |
2,551 |
|
Datasheet |
M | Bulk | Active | Through Hole | DPDT | 4A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
5636ADB1VTOGGLE SWITCH 5000 MINIATURE |
3,214 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
5268CDBTOGGLE SWITCH 5000 MINIATURE |
3,415 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
5267CDBTOGGLE SWITCH 5000 MINIATURE |
2,437 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4PDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
