| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A123P31DZBSWITCH TOGGLE SPDT 0.5VA 28V |
2,176 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | 0.5VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 11.38mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
D22025LVSWITCH TOGGLE DPDT 0.4VA 48V |
4,556 |
|
Datasheet |
D2 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 48 V | 48 V | On-Mom | Locking Lever | 19.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -10°C ~ 70°C |
|
|
DA285-73SWITCH TOGGLE SPST 16A 125V |
3,254 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPST | 16A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Wire Leads | - | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5636A2VX814TOGGLE SWITCH 5000 MINIATURE |
1,603 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
MTG206SSWITCH TOGGLE DPDT 6A 125V |
1,254 |
|
Datasheet |
MTG Green | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
MTB306DSWITCH TOGGLE 3PDT 6A 125V |
4,460 |
|
Datasheet |
MTB Green | Tray | Obsolete | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 15.20mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
7305SCWCBESWITCH TOGGLE 3PDT 0.4VA 20V |
1,537 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7211P4YZQE22SWITCH TOGGLE SP3T 5A 120V |
1,308 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7301MPDCBESWITCH TOGGLE 3PDT 0.4VA 20V |
4,929 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Anti-Rotation | 6.86mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
636H/2KTOGGLE SWITCH 600H HIGH POWER |
3,721 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN33BB1W01-RCSWITCH TOGGLE |
2,821 |
|
Datasheet |
M | Bulk | Active | Panel Mount | 3PDT | 4A (AC), 2A (DC) | 125 V | 30 V | On-Off-On | Standard Round with Cap | 12.30mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
TT11AGPC9T1/4SWITCH TOGGLE SPST 0.4VA 20V |
1,939 |
|
Datasheet |
TT | Bulk | Obsolete | Panel Mount | SPST | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard Round | 5.61mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2NT1-8-NHSWITCH TOGGLE DPDT 10A 125V |
4,233 |
|
Datasheet |
NT | Bulk | Obsolete | Panel Mount | DPDT | 10A (AC) | 125 V | - | On-Mom | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
|
5637ABX408TOGGLE SWITCH 5000 MINIATURE |
2,351 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
5646AB2VULCSASWITCH TOGGLE DPDT 6A 125V |
2,055 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 14.75mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
1NT1-21SWITCH TOGGLE SPST 15A 125V |
2,224 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
|
2GM51-C8SWITCH TOGGLE DPDT 15A 125V |
3,955 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 38.10mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
21236NLDKTOGGLE SWITCH 21000N PCB MOUNT |
4,102 |
|
Datasheet |
21000N | Bulk | Active | Panel Mount, Right Angle | SPDT | 100mA (DC) | - | 30 V | On-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|

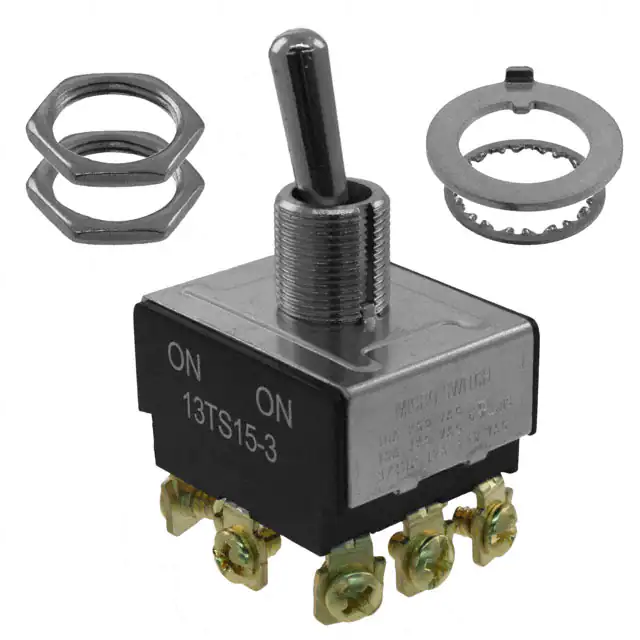

13TS15-3SWITCH TOGGLE 3PDT 18A 125V |
2,368 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | 3PDT | 18A (AC) | 125 V | - | On-On | Standard Round | 16.51mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -54°C ~ 71°C |
|
13TS15-7SWITCH TOGGLE 3PDT 18A 125V |
3,645 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | 3PDT | 18A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 16.51mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -54°C ~ 71°C |
