| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
636HX2043TOGGLE SWITCH 600H HIGH POWER |
1,684 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
637H/25TOGGLE SWITCH 600H HIGH POWER |
1,134 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2GM91-D-4B-BSWITCH TOGGLE DPDT 15A 125V |
3,617 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-Off-On | Paddle | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2GL91-D-4B-BSWITCH TOGGLE DPDT 15A 125V |
1,685 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-On | Paddle | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5237AGB9TOGGLE SWITCH 5000 MINIATURE |
4,575 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
5236WADK17X386TOGGLE SWITCH 5000 MINIATURE |
4,821 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
7201P1Y4ZQESWITCH TOGGLE DPDT 5A 120V |
1,379 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 21.33mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022WBG01SWITCH TOGGLE DPDT 0.4VA 28V |
3,434 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 20.00mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Waterproof Boot | -30°C ~ 85°C |
|
|
T315K-ULFSWITCH TOGGLE 3PST 15A 250V |
4,031 |
|
Datasheet |
T-15 | Bulk | Active | Panel Mount | 3PST | 15A (AC/DC) | 250 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -25°C ~ 70°C |
|
|
6GG5E-73SWITCH TOGGLE DPDT 15A 125V |
4,857 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | Mom-On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5236AB2VX916TOGGLE SWITCH 5000 MINIATURE |
3,190 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
7211TPZ3QESWITCH TOGGLE SP3T 5A 120V |
4,381 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Anti-Rotation | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.062" (1.5mm) | 15/32-32 | Circular - 11.91mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
5249WWABSWITCH TOGGLE DPDT 6A 125V |
3,334 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
646NHTOGGLE SWITCH 600H HIGH POWER |
2,529 |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 250 V | 12 V | On-On | Flatted | 13.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
|
641H/2LTOGGLE SWITCH 600H HIGH POWER |
1,643 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
7401LYZQESWITCH TOGGLE 4PDT 5A 120V |
1,592 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 21.34mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

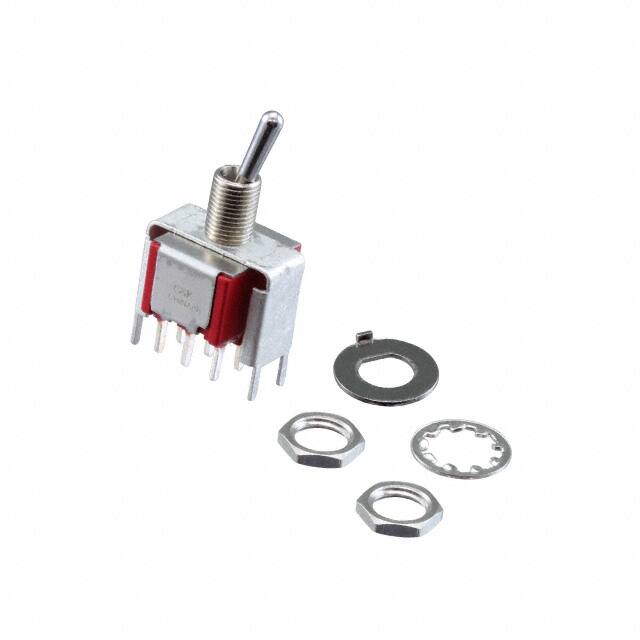

7301SYV2QESWITCH TOGGLE 3PDT 5A 120V |
3,630 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
SY246A13SWITCH TOGGLE DPDT 5A 125V |
4,222 |
|
Datasheet |
S | Bulk | Active | Through Hole | DPDT | 5A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 13.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Sealed | -20°C ~ 85°C |
|
|
5646ADKBSWITCH TOGGLE DPDT 6A 125V |
1,221 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Front Panel Sealing | -40°C ~ 85°C |
|
|
7211TZBE22SWITCH TOGGLE SP3T 0.4VA 20V |
4,438 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
