| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A233S1YZBSWITCH TOGGLE SP3T 0.5VA 28V |
3,344 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SP3T | 0.5VA (AC/DC) | 28 V | 28 V | On-On-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
WT121S1D1AQSWITCH TOGGLE SPDT 6A 125V |
1,189 |
|
Datasheet |
WT | Bulk | Active | Through Hole, Right Angle | SPDT | 6A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 12.90mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
644H/21RSWITCH TOGGLE SP3T 10A 250V |
2,913 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SP3T | 10A (AC) | 250 V | - | On-On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | Jumper needed to achieve triple throw | -20°C ~ 55°C |
|
|
7303T2PV7GESWITCH TOGGLE 3PDT 5A 120V |
2,001 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Flat Anti-Rotation | 15.49mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5236WAB2VX916TOGGLE SWITCH 5000 MINIATURE |
4,265 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
5246WA7TOGGLE SWITCH 5000 MINIATURE |
2,322 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
7303TCWV81GETOGGLE SWITCHES |
1,814 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 15/32-32 | Circular - 11.91mm Dia | - | -30°C ~ 85°C |
|

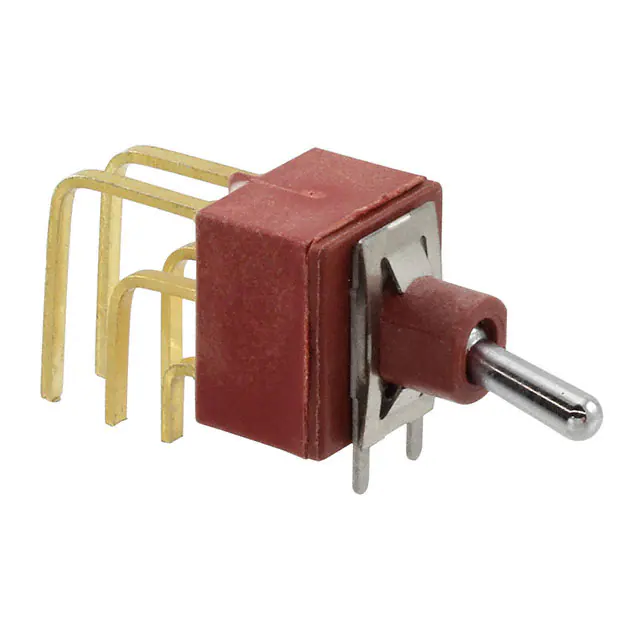

E211MD1AV2GESWITCH TOGGLE SP3T 7.5A 125V |
4,503 |
|
Datasheet |
E | Tray | Active | Through Hole, Right Angle, Vertical | SP3T | 7.5A (AC/DC) | 125 V | 28 V | On-On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
MNL22LCW01LED TIPPED TOGGLE |
1,108 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-On | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -10°C ~ 55°C |
|
|
1NT1-5-CSEALED OI SWITCH |
3,096 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7215P3HZGISWITCH TOGGLE SP3T 5A 120V |
3,157 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | Mom-On-Mom | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
7401L2YZBESWITCH TOGGLE 4PDT 0.4VA 20V |
1,496 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 13.97mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2113TCFW01SWITCH TOGGLE SPDT 6A 125V |
1,009 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
5236CDBX408TOGGLE SWITCH 5000 MINIATURE |
3,558 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
LT-2511-115-012SWITCH TOGGLE DPST 15A 125V |
1,765 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | DPST | 15A (AC/DC) | 125 V | 28 V | On-Off | Paddle | 15.87mm | Illuminated | Incandescent, Red | 12 VAC/DC | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
LT-2511-101-012SWITCH TOGGLE DPST 15A 125V |
1,150 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | DPST | 15A (AC/DC) | 125 V | 28 V | On-Off | Paddle | 15.87mm | Illuminated | Incandescent, Red | 12 VAC/DC | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
LT-2511-140-012SWITCH TOGGLE DPST 15A 125V |
3,455 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | DPST | 15A (AC/DC) | 125 V | 28 V | On-Off | Paddle | 15.87mm | Illuminated | Incandescent, Blue | 12 VAC/DC | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
6GM6G-73SWITCH TOGGLE DPDT 6A 125V |
4,826 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 6A (AC) | 125 V | - | On-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
7401TZGESWITCH TOGGLE 4PDT 5A 120V |
4,764 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
STB1E4-58SWITCH TOGGLE SPST-NO 16A 24V |
4,345 |
|
Datasheet |
ST | Bulk | Active | Panel Mount | SPST-NO | 16A (DC) | - | 24 V | Off-Mom | Standard Round | 14.25mm | Non-Illuminated | - | - | IP68 - Dust Tight, Waterproof | Screw Terminal | - | Circular - 12.70mm Dia | - | -40°C ~ 85°C |
