| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2TL1-50SWITCH TOGGLE DPDT 10A 125V |
1,837 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | 10A (AC) | 125 V | - | On-On-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
5249WCDB8X445TOGGLE SWITCH 5000 MINIATURE |
2,059 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
STJ1E1-58SWITCH TOGGLE SPDT 16A 24V |
3,783 |
|
Datasheet |
ST | Bulk | Active | Panel Mount | SPDT | 16A (DC) | - | 24 V | On-Off-On | Standard Round | 14.25mm | Non-Illuminated | - | - | IP68 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | - | Circular - 12.70mm Dia | - | -40°C ~ 85°C |
|
|
IL256-68SWITCH TOGGLE 4PDT 15A 125V |
3,738 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On | Standard Round | - | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5647ADGB2X408TOGGLE SWITCH 5000 MINIATURE |
2,343 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
5664TH2RABSWITCH TOGGLE DP3T 6A 125V |
3,501 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DP3T | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
|
5664TH1RABSWITCH TOGGLE DP3T 6A 125V |
1,475 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DP3T | 6A (AC), 4A (DC) | 125 V | 30 V | On-On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
IM251-73SWITCH TOGGLE 4PDT 15A 125V |
3,874 |
|
Datasheet |
I | Box | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
IL250-73SWITCH TOGGLE 4PDT 15A 125V |
1,944 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
IM250-73SWITCH TOGGLE 4PDT 15A 125V |
1,099 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
IL251-57SWITCH TOGGLE 4PDT 15A 125V |
2,663 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On | Standard Round | 10.31mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
IL253-63SWITCH TOGGLE 4PDT 15A 125V |
1,019 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On | Standard Round | - | Non-Illuminated | - | - | - | Quick Connect - 0.187" (4.7mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
1NT41-7TOGGLE SWITCH |
4,108 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

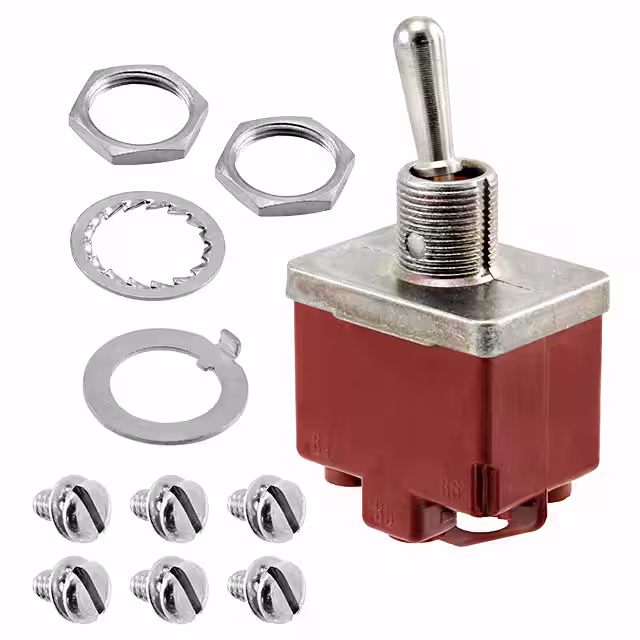

CT46001N020SWITCH TOGGLE DPDT 10A 125V |
4,484 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | DPDT | 10A (AC), 15A (DC) | 125 V | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | Sealed - Fully | -40°C ~ 85°C |
|
|
5664THABSWITCH TOGGLE DP3T 6A 125V |
1,096 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DP3T | 6A (AC), 4A (DC) | 125 V | 30 V | On-On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
|
11136AGSWITCH TOGGLE SPDT 4A 125V |
3,030 |
|
Datasheet |
11000 | Bulk | Active | Panel Mount | SPDT | 4A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 11.30mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
A323P31HCQSWITCH TOGGLE 3PDT 6A 125V |
2,861 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 3PDT | 6A (AC/DC) | 125 V | 28 V | On-On | Flatted | 11.38mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
M83731/16-271SWITCH TOGGLE DPDT 5A 28V |
4,214 |
|
Datasheet |
M83731 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 5A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 6.91mm | Non-Illuminated | - | - | - | PC Pin | - | - | - | -25°C ~ 71°C |
|
|
HK25M-73SWITCH TOGGLE 3PST-NC 15A 125V |
3,491 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PST-NC | 15A (AC) | 125 V | - | On-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
4NT1-61SWITCH TOGGLE 4PST-NO 10A 125V |
3,811 |
|
Datasheet |
NT | Bulk | Obsolete | Panel Mount | 4PST-NO | 10A (AC) | 125 V | - | Off-Mom | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
