| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IL254-63SWITCH TOGGLE 4PDT 15A 125V |
3,833 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On | Standard Round | - | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5239Y6ADKB2X386TOGGLE SWITCH 5000 MINIATURE |
1,074 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A227K12KZG-M8SWITCH TOGGLE DPDT 6A 125V |
4,873 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Locking Lever | 15.47mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A321P32Y5ZQSWITCH TOGGLE 3PDT 6A 125V |
4,143 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 3PDT | 6A (AC/DC) | 125 V | 28 V | On-Off-On | Flatted | 11.38mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 90°C |
|
|
101TL2-31SWITCH TOGGLE SPDT 7.5A 115V |
1,097 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | SPDT | 7.5A (AC/DC) | 115 V | 30 V | On-On | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
5249WA3VX386TOGGLE SWITCH 5000 MINIATURE |
4,057 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
M-597SWITCH TOGGLE SPST-NC 10A 12V |
3,996 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST-NC | 10A (DC) | - | 12 V | On-Mom | Standard Round | 17.46mm | Non-Illuminated | - | - | - | Wire Leads | - | - | - | - |
|
|
7415P3HZGISWITCH TOGGLE DP3T 5A 120V |
2,806 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | 5A (AC/DC) | 120 V | 28 V | Mom-On-Mom | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
IL254-NBL8SWITCH TOGGLE 4PDT 15A 125V |
1,046 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On | Paddle | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
1NT1-6FSWITCH TOGGLE SPST-NO 10A 125V |
3,811 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPST-NO | 10A (AC) | 125 V | - | Off-Mom | Locking Lever | 26.67mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
MTG72A2SWITCH TOGGLE SPDT 4A 30V |
2,916 |
|
Datasheet |
MT | Bulk | Active | Panel Mount | SPDT | 4A (DC) | - | 30 V | Mom-Off-Mom | Rocker | 11.24mm | - | - | - | IP68 - Dust Tight, Waterproof | Solder Lug | 11/16-28 | Circular - 17.65mm Dia | Black Actuator | -40°C ~ 85°C |
|
|
A435S1YZBSWITCH TOGGLE DP3T 6A 125V |
2,149 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DP3T | 6A (AC/DC) | 125 V | 28 V | Mom-On-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
HK25S-73SWITCH TOGGLE 3PST-NC 15A 125V |
4,998 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PST-NC | 15A (AC) | 125 V | - | On-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
HK25E-73SWITCH TOGGLE 3PST-NO 15A 125V |
1,541 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PST-NO | 15A (AC) | 125 V | - | Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
MTL406NSWITCH TOGGLE 4PDT 6A 125V |
3,714 |
|
Datasheet |
MTL Green | Bulk | Active | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Locking Lever | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
1TL11-5SWITCH TOGGLE SPDT 10A 125V |
4,949 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | SPDT | 10A (AC) | 125 V | - | On-Off-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|

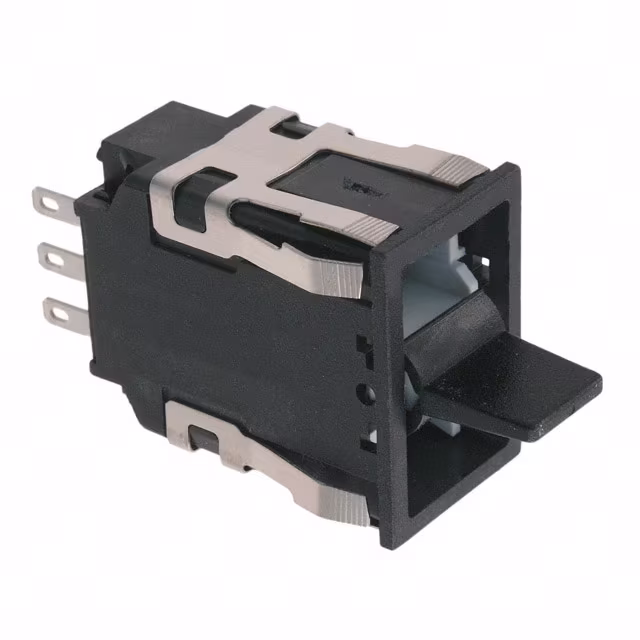

AML23EBA2AA05SWITCH TOGGLE SPDT 3A 125V |
4,601 |
|
Datasheet |
AML23 | Bulk | Active | Panel Mount, Snap-In | SPDT | 3A (AC), 2A (DC) | 125 V | 24 V | Mom-Off-Mom | Paddle | - | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Rectangular - 28.98mm x 19.05mm | - | - |
|
|
AML23EBA2AA01SWITCH TOGGLE SPDT 3A 125V |
3,158 |
|
Datasheet |
AML23 | Bulk | Active | Panel Mount, Snap-In | SPDT | 3A (AC), 2A (DC) | 125 V | 24 V | On-On | Paddle | - | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Rectangular - 28.98mm x 19.05mm | - | - |
|
|
5236MIWRADB2VTOGGLE SWITCH 5000 MINIATURE |
4,988 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
5664THAB9SWITCH TOGGLE DP3T 6A 125V |
2,469 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DP3T | 6A (AC), 4A (DC) | 125 V | 30 V | On-On-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | - | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -40°C ~ 85°C |
