| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
659HKTOGGLE SWITCH 600H HIGH POWER |
1,086 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

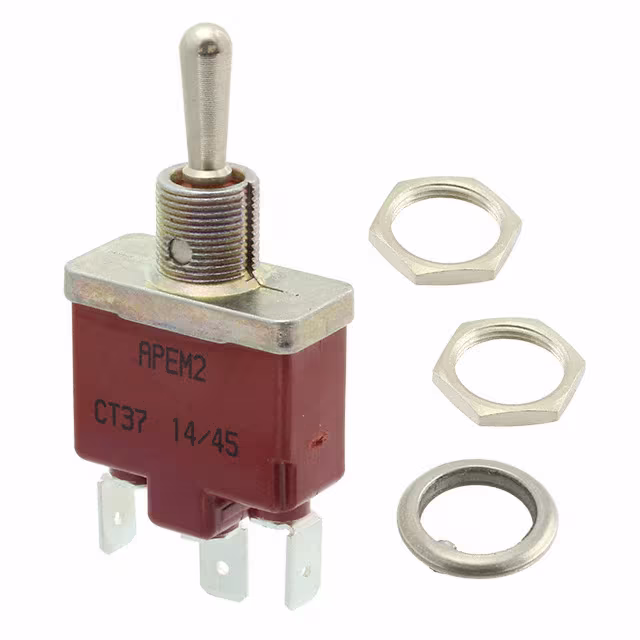

CT45031N002SWITCH TOGGLE DPDT 10A 125V |
1,131 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | DPDT | 10A (AC), 15A (DC) | 125 V | 28 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | Sealed - Fully | -40°C ~ 85°C |
|
|
62NT1-3SWITCH TOGGLE DPDT 15A 125V |
1,400 |
|
Datasheet |
NT | Bulk | Obsolete | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
|
IM254-73SWITCH TOGGLE 4PDT 15A 125V |
2,606 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
IL254-73SWITCH TOGGLE 3PDT 15A 125V |
3,832 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 3PDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
IM254-73/HDW ASSMSWITCH TOGGLE 4PDT 15A 125V |
2,343 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5237MADKB40X449TOGGLE SWITCH 5000 MINIATURE |
3,218 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
11147ATOGGLE SWITCH 11000 HIGH SPEC |
4,061 |
|
Datasheet |
11000 | Bulk | Active | Panel Mount | DPDT | 4A (DC) | - | 30 V | Mom-Off-Mom | Standard Round | 11.30mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
5657MABSWITCH TOGGLE 3PDT 6A 125V |
1,653 |
|
Datasheet |
5000M | Bulk | Active | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5257WADB16ULTOGGLE SWITCH 5000 MINIATURE |
3,083 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
11TL1-8SWITCH TOGGLE SPDT 10A 125V |
1,456 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 125 V | - | On-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
2NT1-1ASWITCH TOGGLE DPDT 15A 125V |
1,032 |
|
Datasheet |
NT | Bulk | Obsolete | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-Off-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
|
2NT1-10ASWITCH TOGGLE SP3T 15A 125V |
3,790 |
|
Datasheet |
NT | Bulk | Obsolete | Panel Mount | SP3T | 15A (AC) | 125 V | - | On-On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Jumper needed to achieve triple throw | -40°C ~ 71°C |
|
|
1NT1-5NSWITCH TOGGLE SPDT 10A 125V |
2,857 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 125 V | - | On-Off-Mom | Locking Lever | 26.67mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
|
S821D/USWITCH TOGGLE DPST 30A 30V |
1,916 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPST | 30A (DC) | - | 30 V | On-Off | Flatted | 27.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
631HGKTOGGLE SWITCH 600H HIGH POWER |
4,007 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5266ADB12TOGGLE SWITCH 5000 MINIATURE |
1,288 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
5666MA16TOGGLE SWITCH 5000 MINIATURE |
1,419 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
A323L21D9CQSWITCH TOGGLE 3PDT 6A 125V |
2,234 |
|
Datasheet |
A | Bulk | Active | Through Hole | 3PDT | 6A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 13.97mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A423T11TCQSWITCH TOGGLE 4PDT 6A 125V |
1,914 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 4PDT | 6A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 11.89mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
