| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IM255-73SWITCH TOGGLE 4PDT 15A 125V |
4,696 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Wire Leads | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5257WADULTOGGLE SWITCH 5000 MINIATURE |
3,450 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
MTG62CD2SWITCH TOGGLE SPDT 0.4VA 20V |
2,162 |
|
Datasheet |
MT | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | - | 20 V | On-On | Rocker | 11.24mm | Non-Illuminated | - | - | IP68 - Dust Tight, Waterproof | Solder Lug | 11/16-28 | Circular - 17.65mm Dia | Black Actuator | -40°C ~ 85°C |
|
|
5666CDB2VTOGGLE SWITCH 5000 MINIATURE |
3,460 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
1-1520228-0SWITCH TOGGLE DPST 20A 125V |
1,817 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPST | 20A (AC/DC) | 125 V | 125 V | On-Off | Standard Round | 19.81mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | - |
|
|
HL25F-73SWITCH TOGGLE 3PDT 15A 125V |
1,706 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PDT | 15A (AC) | 125 V | - | On-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Wire Leads | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
HM25T-73SWITCH TOGGLE 3PDT 15A 125V |
2,077 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PDT | 15A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Wire Leads | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
12TW8-7SWITCH TOGGLE DPDT 5A 125V |
4,270 |
|
Datasheet |
TW | Bulk | Obsolete | Panel Mount | DPDT | 5A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
A432K12KCQSWITCH TOGGLE DP3T 6A 125V |
2,117 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DP3T | 6A (AC/DC) | 125 V | 28 V | On-On-On | Locking Lever | 15.47mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
A433S1YZ3QSWITCH TOGGLE DP3T 6A 125V |
4,775 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DP3T | 6A (AC/DC) | 125 V | 28 V | On-On-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
11136DTOGGLE SWITCH 11000 HIGH SPEC |
4,524 |
|
Datasheet |
11000 | Bulk | Active | Panel Mount | SPDT | 100mA (DC) | - | 30 V | On-On | Standard Round | 11.30mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
5649MAGBX119401ULTOGGLE SWITCH 5000 MINIATURE |
3,296 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2TL1-56FSWITCH TOGGLE DPDT 10A 125V |
1,910 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | 10A (AC) | 125 V | - | On-On-Mom | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
14TL1-3SWITCH TOGGLE 4PDT 15A 125V |
2,661 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
2TL1-56ESWITCH TOGGLE DPDT 10A 125V |
2,574 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | 10A (AC) | 125 V | - | On-On-Mom | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
IL255-78SWITCH TOGGLE 4PDT 15A 125V |
3,889 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Wire Leads | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
2TW1-3SWITCH TOGGLE DPDT 5A 125V |
2,725 |
|
Datasheet |
TW | Bulk | Obsolete | Panel Mount | DPDT | 5A (AC) | 125 V | - | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 1/4-40 | Circular - 6.60mm Dia | - | -65°C ~ 71°C |
|
|
1NT887-3SWITCH TOGGLE SPDT 15A 125V |
4,957 |
|
Datasheet |
NT | Bulk | Obsolete | Panel Mount | SPDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
|
11246AD226X408TOGGLE SWITCH 11000 HIGH SPEC |
3,611 |
|
Datasheet |
11000 | Bulk | Active | Panel Mount | DPDT | 4A (DC) | - | 30 V | On-On | Standard Round | 11.30mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|

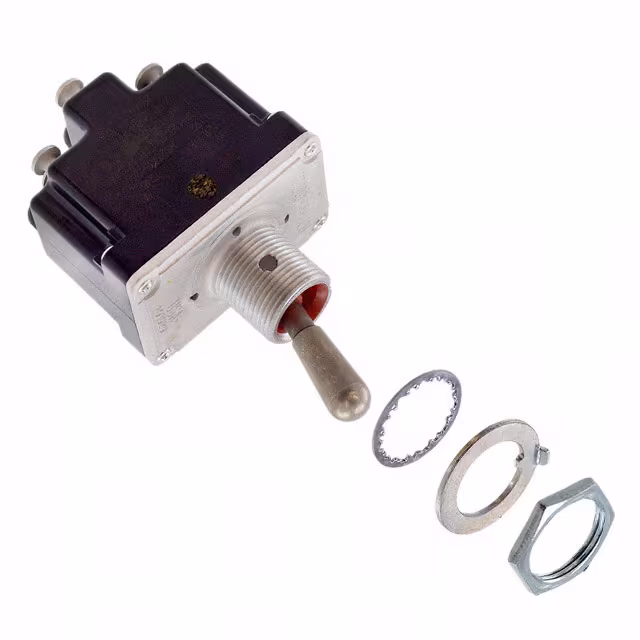

12TL1-8SWITCH TOGGLE DPDT 10A 125V |
2,183 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 125 V | - | On-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
