Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1TL887-5LSWITCH TOGGLE SPDT 10A 125V |
2,227 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 125 V | - | On-Off-Mom | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
1TL887-5ESEALED OI SWITCH |
2,815 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
12TW1-8FSWITCH TOGGLE DPDT 5A 125V |
2,396 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | 5A (AC) | 125 V | - | On-Mom | Locking Lever | 29.46mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
12246038X778TOGGLE SWITCH 12000 HIGH SPEC |
2,534 |
|
Datasheet |
12000X778 | Bulk | Active | Panel Mount | DPDT | 4A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.30mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
102TL2-1ESWITCH TOGGLE DPDT 7.5A 115V |
4,483 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | 7.5A (AC/DC) | 115 V | 30 V | On-Off-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
102TL2-3FSWITCH TOGGLE DPDT 7.5A 115V |
1,813 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | 7.5A (AC/DC) | 115 V | 30 V | On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
M83731/24-19A010TOGGLE SWITCH 12X778 MIL GRADE |
2,618 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12166KX780TOGGLE SWITCH 12000 HIGH SPEC |
2,650 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | 4PDT | 4A (DC) | - | 30 V | On-On | Standard Round | 17.30mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
12156X778TOGGLE SWITCH 12000 HIGH SPEC |
4,396 |
|
Datasheet |
12000X778 | Bulk | Active | Panel Mount | 3PDT | 4A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.30mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
102TL200-1SWITCH TOGGLE DPDT 7.5A 125V |
1,029 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | 7.5A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | Sealed | -65°C ~ 71°C |
|
|
12147X778TOGGLE SWITCH 12000 HIGH SPEC |
2,960 |
|
Datasheet |
12000X778 | Bulk | Active | Panel Mount | DPDT | 4A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 17.30mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
2TL887-1ASWITCH TOGGLE DPDT 15A 125V |
2,712 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-Off-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
M3950/15-16A01VTOGGLE SWITCH 12X778 MIL GRADE |
3,682 |
|
Datasheet |
- | Bulk | Active | Panel Mount | 3PDT | 4A (AC/DC) | 125 V | 28 V | On-On | Locking Lever | 19.40mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 15/32-32 | - | - | -40°C ~ 85°C |
|
12TW1-56MSWITCH TOGGLE DPDT 5A 125V |
1,272 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | 5A (AC) | 125 V | - | On-On-Mom | Locking Lever | 29.46mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
12TW1-12ASWITCH TOGGLE DPDT 5A 125V |
2,316 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | 5A (AC) | 125 V | - | On-On-On | Locking Lever | 29.46mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
12TW1-10NSWITCH TOGGLE SP3T 5A 125V |
2,767 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | SP3T | 5A (AC) | 125 V | - | On-On-On | Locking Lever | 29.46mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | Jumper needed to achieve triple throw | -65°C ~ 71°C |
|
|
12TW1-12LSWITCH TOGGLE DPDT 5A 125V |
1,884 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | 5A (AC) | 125 V | - | On-On-On | Locking Lever | 29.46mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|

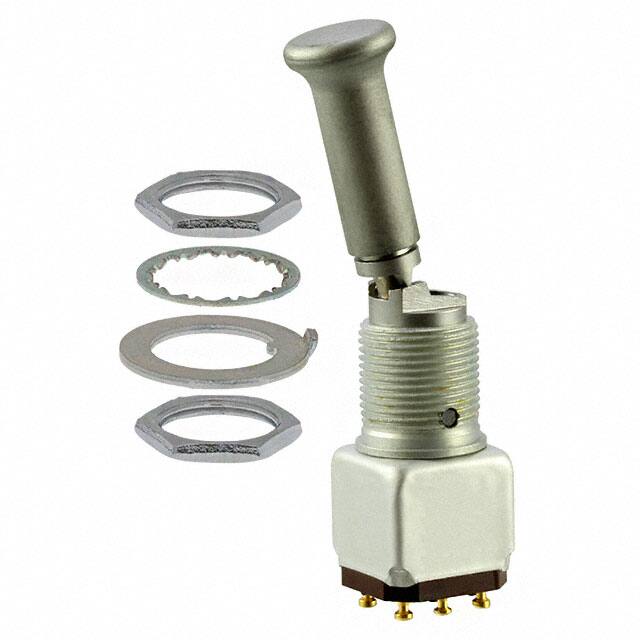

12TW1-50NSWITCH TOGGLE DPDT 5A 125V |
4,119 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | 5A (AC) | 125 V | - | On-On-Mom | Locking Lever | 29.46mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
1TL887-3DSWITCH TOGGLE SPDT 15A 125V |
1,943 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
1520192-3SWITCH TOGGLE SPST 20A 250V |
4,359 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST | 20A (AC) | 250 V | - | On-Off | Standard Round | 24.74mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | - | - | - |
