Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
13AT272-T2SWITCH TOGGLE DPDT 5A 115V |
3,053 |
|
Datasheet |
AT | Bulk | Obsolete | Panel Mount | DPDT | 5A (AC/DC) | 115 V | 28 V | On-Off-On | Standard Round | 17.53mm | Non-Illuminated | - | - | - | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | - |
|
|
12TW1-1MSWITCH TOGGLE DPDT 5A 125V |
4,738 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | 5A (AC) | 125 V | - | On-Off-On | Locking Lever | 29.46mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
121643VX778TOGGLE SWITCH 12000 HIGH SPEC |
1,533 |
|
Datasheet |
12000X778 | Bulk | Active | Panel Mount | 4P3T | 4A (AC/DC) | 125 V | 30 V | On-On-On | Standard Round | 17.30mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
122461V/1X77806FTOGGLE SWITCH 12000 HIGH SPEC |
4,449 |
|
Datasheet |
12000X778 | Bulk | Active | Panel Mount | DPDT | 4A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.30mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
6AT70SWITCH TOGGLE DPDT 5A 250V |
4,648 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 250 V | 30 V | On-On | Standard Round | 17.42mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.40mm Dia | - | - |
|
|
12159DGKTOGGLE SWITCH 12000 HIGH SPEC |
4,894 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | 3PDT | 100mA (DC) | - | 30 V | On-Off-On | Standard Round | 17.30mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
101TL154-2SWITCH TOGGLE SPST 15A 125V |
1,525 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPST | 15A (AC), 20A (DC) | 125 V | 28 V | On-Off | Flatted | 17.02mm | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
12145CT13V/1X778TOGGLE SWITCH 12000 HIGH SPEC |
3,943 |
|
Datasheet |
12000X778 | Bulk | Active | Panel Mount | DPDT | 4A (AC/DC) | 125 V | 30 V | On-Mom | Standard Round | 17.30mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
13AT4-SSWITCH TOGGLE 3PDT 5A 250V |
2,143 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 3PDT | 5A (AC/DC) | 250 V | 30 V | Mom-Off-Mom | Standard Round | 17.53mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | - |
|
|
12158DGKTOGGLE SWITCH 12000 HIGH SPEC |
1,887 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | 3PDT | 100mA (DC) | - | 30 V | On-Off-Mom | Standard Round | 17.30mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
102TL2-51ESWITCH TOGGLE DPDT 7.5A 115V |
2,003 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | 7.5A (AC/DC) | 115 V | 30 V | On-Mom | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
121461VX778TOGGLE SWITCH 12000 HIGH SPEC |
3,358 |
|
Datasheet |
12000X778 | Bulk | Active | Panel Mount | DPDT | 4A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.30mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
4TL887-3DSWITCH TOGGLE 4PDT 15A 125V |
1,780 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
112TW401-2SWITCH TOGGLE DPST 5A 125V |
1,825 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPST | 5A (AC/DC) | 125 V | 28 V | On-Off | Flatted | 17.27mm | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
666703KTOGGLE SWITCH 6000 MIL GRADE |
2,787 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
121660382VX778TOGGLE SWITCH 12000 HIGH SPEC |
3,459 |
|
Datasheet |
12000X778 | Bulk | Active | Panel Mount | 4PDT | 4A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.30mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
102TL2-50SWITCH TOGGLE DPDT 7.5A 115V |
3,934 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | 7.5A (AC/DC) | 115 V | 30 V | On-On-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
12TW804-72ESWITCH TOGGLE DPDT 5A 125V |
4,293 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | 5A (AC) | 125 V | - | Mom-On-Mom | Locking Lever | 29.46mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
12166KX910SWITCH TOGGLE 4PDT 3A 60V |
4,665 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | 4PDT | 3A (DC) | - | 60 V | On-On | Standard Round | 17.30mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | Epoxy Sealed Terminals, Front Panel Sealing | -40°C ~ 85°C |
|

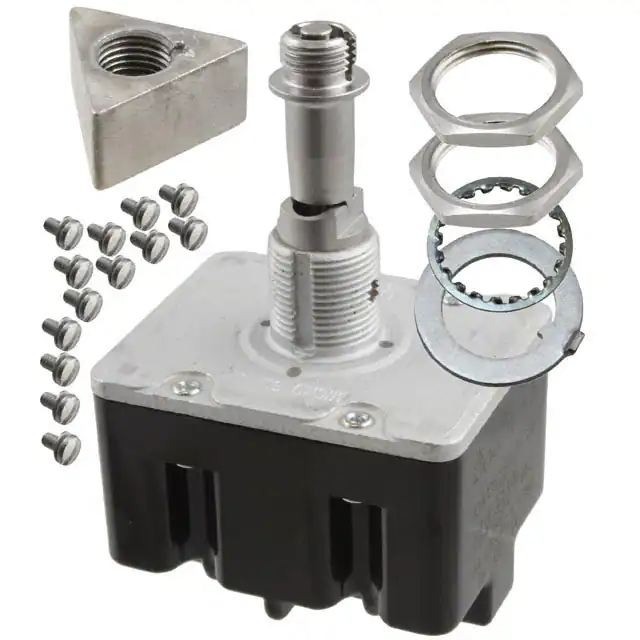

4TL144-7ESWITCH TOGGLE 4PDT 10A 125V |
1,447 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 10A (AC) | 125 V | - | Mom-Off-Mom | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
