Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
112TW26-3SWITCH TOGGLE DPDT 2A 115V |
1,794 |
|
Datasheet |
TW | Bulk | Obsolete | Panel Mount | DPDT | 2A (AC) | 115 V | - | On-On | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
102TL2263-7SWITCH TOGGLE DPDT 6A 230V |
4,721 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | 6A (AC), 7.5A (DC) | 230 V | 28 V | Mom-Off-Mom | - | - | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | Black Anodized | -65°C ~ 71°C |
|
|
102TL2164-70SWITCH TOGGLE DPDT 7.5A 125V |
1,220 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | 7.5A (AC/DC) | 125 V | 28 V | Mom-On-Mom | Flatted | 16.51mm | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
104TL2-8SWITCH TOGGLE 4PDT 7.5A 115V |
2,941 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 7.5A (AC/DC) | 115 V | 30 V | On-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
62AT34-3SWITCH TOGGLE DPDT 1A 30V |
2,043 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | 1A (DC) | - | 30 V | On-On | Standard Round | 17.27mm | Non-Illuminated | - | - | - | Quick Connect - 0.058" (Round) | 15/32-32 | Circular - 12.40mm Dia | - | - |
|
|
13AT239-T2-LSWITCH TOGGLE DPDT 5A 250V |
4,393 |
|
Datasheet |
AT | Bulk | Obsolete | Panel Mount | DPDT | 5A (AC/DC) | 250 V | 30 V | Mom-Off-Mom | Locking Lever | 30.00mm | Non-Illuminated | - | - | - | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | - |
|
|
104TL2-3FSWITCH TOGGLE 4PDT 7.5A 115V |
2,836 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | 4PDT | 7.5A (AC/DC) | 115 V | 30 V | On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
112TW86-1ESWITCH TOGGLE DPDT 2A 115V |
4,002 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | 2A (AC) | 115 V | - | On-Off-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
13AT10-SSWITCH TOGGLE 4PDT 5A 250V |
2,502 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 4PDT | 5A (AC/DC) | 250 V | 30 V | On-Off-Mom | Standard Round | 17.53mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | - |
|
|
13AT475-T2SWITCH TOGGLE 3PDT 5A 115V |
3,503 |
|
Datasheet |
AT | Bulk | Obsolete | Panel Mount | 3PDT | 5A (AC/DC) | 115 V | 28 V | On-Off-On | Flatted | 16.26mm | Non-Illuminated | - | - | - | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | - |
|
|
62AT22-82SWITCH TOGGLE DPDT 7A 115V |
1,013 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | 7A (AC/DC) | 115 V | 28 V | On-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | - | Quick Connect - 0.058" (Round) | 15/32-32 | Circular - 12.40mm Dia | - | -55°C ~ 85°C |
|
|
23AT118-T2SWITCH TOGGLE DPDT 5A 250V |
1,554 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 250 V | 30 V | On-On | Standard Round | 17.53mm | Non-Illuminated | - | - | - | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | - |
|
|
13AT1-ESWITCH TOGGLE DPDT 5A 250V |
3,732 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 250 V | 30 V | Mom-Off-Mom | Locking Lever | 30.00mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.40mm Dia | - | - |
|
|
13AT219-5-C02SWITCH TOGGLE DPDT 1A 115V |
1,000 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | 1A (AC/DC) | 115 V | 28 V | On-Off-Mom | Flatted | 19.81mm | Non-Illuminated | - | - | Environment Sealed | Quick Connect - 0.058" (Round) | 15/32-32 | Circular - 12.40mm Dia | Black Actuator | - |
|
|
62AT22-3DSWITCH TOGGLE DPDT 7A 115V |
4,805 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | 7A (AC/DC) | 115 V | 28 V | On-On | Locking Lever | 30.00mm | Non-Illuminated | - | - | - | Quick Connect - 0.058" (Round) | 15/32-32 | Circular - 12.40mm Dia | - | -55°C ~ 85°C |
|
|
23AT1-DSWITCH TOGGLE DPDT 5A 125V |
4,024 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 30 V | On-On | Locking Lever | 30.00mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.40mm Dia | - | - |
|

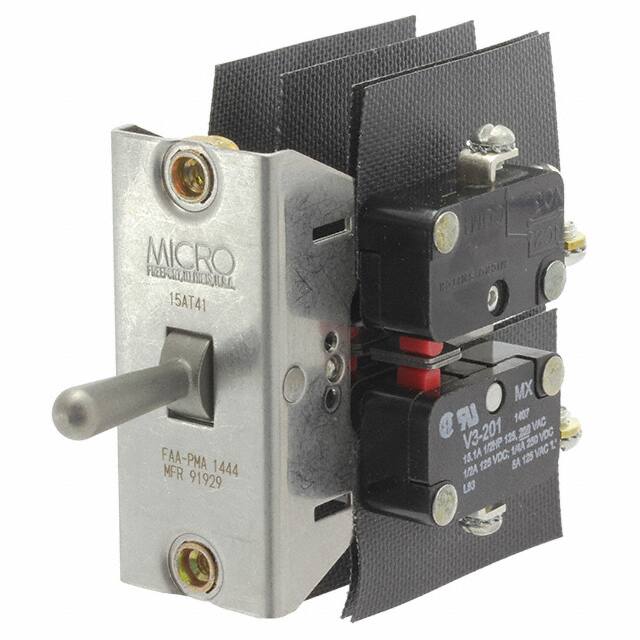

15AT41SWITCH TOGGLE 6PDT 15A 125V |
4,708 |
|
Datasheet |
AT | Bulk | Obsolete | Panel Mount | 6PDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 22.35mm | Non-Illuminated | - | - | - | Screw Terminal | - | - | - | - |
|
|
31AT417-T2SWITCH TOGGLE SP3T 5A 250V |
2,466 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 250 V | 30 V | On-On-On | Flatted | 16.26mm | Non-Illuminated | - | - | - | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | Jumper needed to achieve triple throw | - |
|
|
32AT11-T2SWITCH TOGGLE DPDT 1A 30V |
1,207 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | 1A (DC) | - | 30 V | On-On | Standard Round | 17.53mm | Non-Illuminated | - | - | - | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | - |
|
|
32AT2SWITCH TOGGLE 3PDT 5A 250V |
1,640 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 3PDT | 5A (AC/DC) | 250 V | 30 V | On-On | Standard Round | 17.53mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.40mm Dia | - | - |
