Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2012LL1W01/USWITCH TOGGLE SPDT 6A 125V |
790 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2032SS1W03/CULSWITCH TOGGLE 3PDT 6A 125V |
403 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022B2B1W03-AT4181SWITCH TOGGLE DPDT 6A 125V |
4,089 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2012B2B1W03-AT401ASWITCH TOGGLE SPDT 6A 125V |
2,329 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2012B2B1W01-AT401ASWITCH TOGGLE SPDT 6A 125V |
2,378 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
7201SY9AMESWITCH TOGGLE DPDT 5A 120V |
475 |
|
Datasheet |
7000 | Tray | Obsolete | Through Hole, Right Angle | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
4-6437630-0SWITCH TOGGLE SPDT 0.4VA 20V |
368 |
|
Datasheet |
F | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Locking Lever | 15.00mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.20mm Dia | - | -20°C ~ 70°C |
|
|
M2011B2B1W01-AT401SSWITCH TOGGLE SPST 6A 125V |
3,903 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2011B2B1W01-AT401HSWITCH TOGGLE SPST 6A 125V |
3,382 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2013B2B1W01-AT401ASWITCH TOGGLE SPDT 6A 125V |
4,200 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2012B2B1W03-AT401SSWITCH TOGGLE SPDT 6A 125V |
1,858 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2012B2B1W01-AT401SSWITCH TOGGLE SPDT 6A 125V |
3,688 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
M2032SS1W01-BASWITCH TOGGLE 3PDT 6A 125V |
3,868 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
|
M2022B2B1W01-VA-AT4181SWITCH TOGGLE DPDT 6A 125V |
3,275 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2012B2B1W03-AT401HSWITCH TOGGLE SPDT 6A 125V |
3,770 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2012B2B1W01-AT401HSWITCH TOGGLE SPDT 6A 125V |
4,029 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
M2012LL3G01SWITCH TOGGLE SPDT 0.4VA 28V |
3,832 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

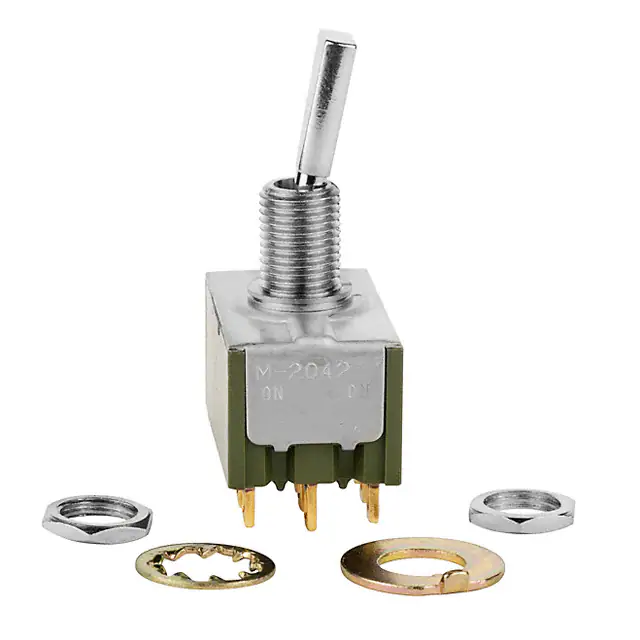

M2042ES1G01SWITCH TOGGLE 4PDT 0.4VA 28V |
2,077 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2032SS1W01-BBSWITCH TOGGLE 3PDT 6A 125V |
1,886 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | - | Circular - 6.50mm Dia | White Cap | -30°C ~ 85°C |
|
ET215R12-ZSWITCH TOGGLE DPDT 15A 125V |
141 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-Mom | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
