Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55046-03SWITCH TOGGLE DPDT |
1,570 |
|
Datasheet |
- | Bulk | Obsolete | Panel Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
59024-100-BXSWITCH TOGGLE SPST 25A 12V |
1,050 |
|
Datasheet |
59024 | Box | Obsolete | Panel Mount | SPST | 25A (DC) | - | 12 V | On-Off | Paddle | 25.40mm | Non-Illuminated | - | - | - | - | 15/32-32 | - | - | - |
|
|
55094SWITCH TOGGLE |
3,538 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
54101-01SWITCH TOGGLE SPST 25A 12V |
1,540 |
|
Datasheet |
54100 | Bulk | Obsolete | Panel Mount | SPST | 25A (DC) | - | 12 V | Off-Mom | Paddle | - | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | - | - | -40°C ~ 105°C |
|
TB1-2A-AC-1VAC DPST OFF-ON, TABS, 15/32 |
4,088 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPST | 10A (AC) | 250 V | - | On-Off | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | - |
|
TB1-2D-AC-6VAC DPDT ON-ON, SCREW, 15/32 |
2,818 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 250 V | - | On-On | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | - |
|
TB1-2G-AC-1VAC DPDT (ON)-OFF-(ON), 15/32 |
4,830 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 250 V | - | Mom-Off-Mom | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | - |
|
TB1-2G-AC-6VAC DPDT (ON)-OFF-(ON), 15/32 |
2,695 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 250 V | - | Mom-Off-Mom | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | - |
|
TA2-1B-AC-5SWITCH TOGGLE SPST 12A 250V |
1,984 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPST | 12A (AC) | 250 V | - | Off-Mom | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.20mm Dia | - | - |
|
TB1-2F-AC-5VAC DPDT ON-OFF-ON, SOLD, 15/32 |
4,835 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 250 V | - | On-Off-On | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.20mm Dia | - | - |
|
TA2-1A-AC-1-OSWITCH TOGGLE SPST 12A 250V |
1,225 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPST | 12A (AC) | 250 V | - | On-Off | Standard Round | 16.50mm | Non-Illuminated | - | - | IP55 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | - |
|
TA2-1A-AC-6VAC SPST OFF-ON, SCREW, 15/32 |
2,622 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPST | 12A (AC) | 250 V | - | On-Off | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 65°C |
|
TB1-2F-AC-1VAC DPDT ON-OFF-ON, TABS, 15/32 |
4,434 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 250 V | - | On-Off-On | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | - |
|
TA2-1G-AC-6VAC SPDT (ON)-OFF-(ON), 15/32 |
1,304 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | 12A (AC) | 250 V | - | Mom-Off-Mom | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | - |
|
TA2-1A-AC-6-OVAC SPST OFF-ON, 15/32 - IP55 |
4,221 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPST | 12A (AC) | 250 V | - | On-Off | Standard Round | 16.50mm | Non-Illuminated | - | - | IP55 - Dust Protected, Water Resistant | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | - |
|

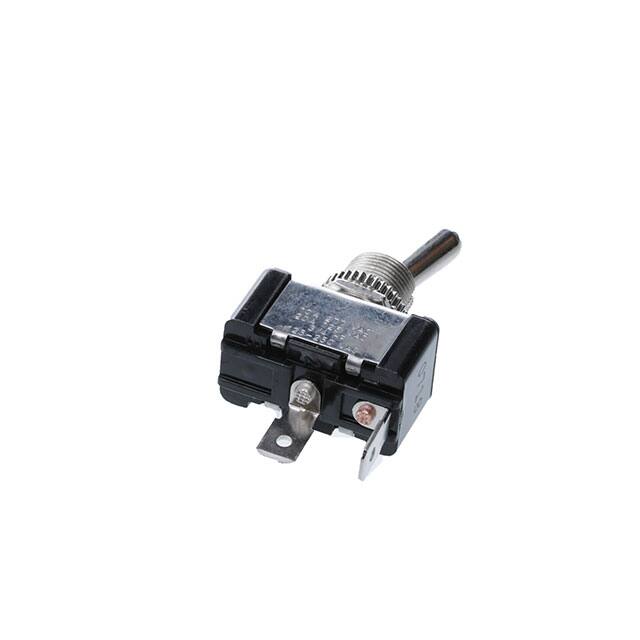

TA2-1A-AC-1VAC SPST OFF-ON, TABS, 15/32 |
4,192 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPST | 12A (AC) | 250 V | - | On-Off | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | 0°C ~ 65°C |
|
TA2-1D-AC-6VAC SPDT ON-ON, SCREW, 15/32 |
3,297 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | 12A (AC) | 250 V | - | On-On | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | - |
|
TA2-1G-AC-1SWITCH TOGGLE SPDT 12A 250V |
2,909 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | 12A (AC) | 250 V | - | Mom-Off-Mom | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | - |
|
TB1-2B-AC-1VAC DPST OFF-(ON), TABS, 15/32 |
3,654 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPST | 10A (AC) | 250 V | - | Off-Mom | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | - |
|
TA2-1F-AC-1VAC SPDT ON-OFF-ON, TABS, 15/32 |
4,546 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | 12A (AC) | 250 V | - | On-Off-On | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | - |
