| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Resistance | Power (Watts) | Temperature Coefficient | Number of Turns | Adjustment Type | Tolerance | Resistive Material | Mounting Style | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

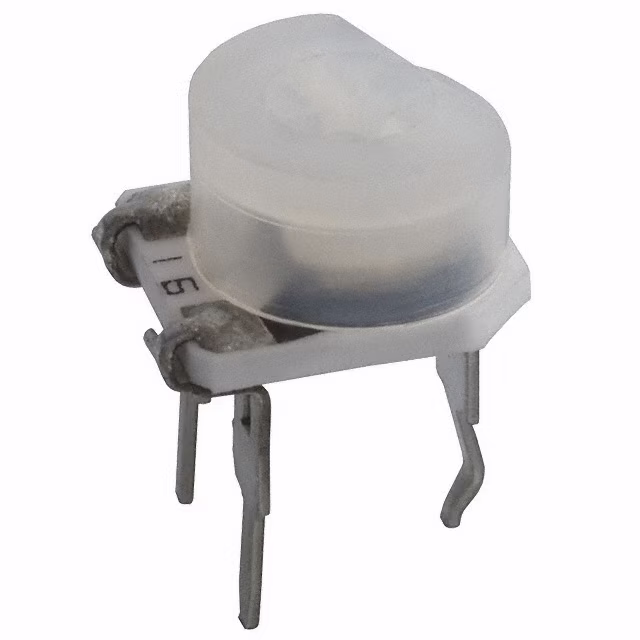

TC86K-1-501TRIMMER 500 OHM 0.3W PC PIN SIDE |
4,750 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 500 Ohms | 0.3W | ±250ppm/°C | 1.0 | Side Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
|
TC86K-1-102TRIMMER 1K OHM 0.3W PC PIN SIDE |
3,802 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 1 kOhms | 0.3W | ±250ppm/°C | 1.0 | Side Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
|
TC86K-1-202TRIMMER 2K OHM 0.3W PC PIN SIDE |
3,757 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 2 kOhms | 0.3W | ±250ppm/°C | 1.0 | Side Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
|
TC86K-1-502TRIMMER 5K OHM 0.3W PC PIN SIDE |
2,381 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 5 kOhms | 0.3W | ±250ppm/°C | 1.0 | Side Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
|
TC86K-1-103TRIMMER 10K OHM 0.3W PC PIN SIDE |
3,634 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 10 kOhms | 0.3W | ±250ppm/°C | 1.0 | Side Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
|
TC86K-1-203TRIMMER 20K OHM 0.3W PC PIN SIDE |
2,028 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 20 kOhms | 0.3W | ±250ppm/°C | 1.0 | Side Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
|
TC86K-1-503TRIMMER 50K OHM 0.3W PC PIN SIDE |
2,238 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 50 kOhms | 0.3W | ±250ppm/°C | 1.0 | Side Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
|
TC86K-1-104TRIMMER 100KOHM 0.3W PC PIN SIDE |
4,109 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 100 kOhms | 0.3W | ±250ppm/°C | 1.0 | Side Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
|
TC86K-1-204TRIMMER 200KOHM 0.3W PC PIN SIDE |
4,828 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 200 kOhms | 0.3W | ±250ppm/°C | 1.0 | Side Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
|
TC86K-1-105TRIMMER 1M OHM 0.3W PC PIN SIDE |
2,817 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 1 MOhms | 0.3W | ±250ppm/°C | 1.0 | Side Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
TC86P-1-101TRIMMER 100 OHM 0.3W PC PIN TOP |
2,600 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 100 Ohms | 0.3W | ±250ppm/°C | 1.0 | Top Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
|
TC86P-1-201TRIMMER 200 OHM 0.3W PC PIN TOP |
3,548 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 200 Ohms | 0.3W | ±250ppm/°C | 1.0 | Top Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
|
TC86P-1-501TRIMMER 500 OHM 0.3W PC PIN TOP |
4,942 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 500 Ohms | 0.3W | ±250ppm/°C | 1.0 | Top Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
|
TC86P-1-102TRIMMER 1K OHM 0.3W PC PIN TOP |
1,067 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 1 kOhms | 0.3W | ±250ppm/°C | 1.0 | Top Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
|
TC86P-1-202TRIMMER 2K OHM 0.3W PC PIN TOP |
1,510 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 2 kOhms | 0.3W | ±250ppm/°C | 1.0 | Top Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
|
TC86P-1-502TRIMMER 5K OHM 0.3W PC PIN TOP |
3,350 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 5 kOhms | 0.3W | ±250ppm/°C | 1.0 | Top Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
|
TC86P-1-103TRIMMER 10K OHM 0.3W PC PIN TOP |
3,219 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 10 kOhms | 0.3W | ±250ppm/°C | 1.0 | Top Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
|
TC86P-1-203TRIMMER 20K OHM 0.3W PC PIN TOP |
1,046 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 20 kOhms | 0.3W | ±250ppm/°C | 1.0 | Top Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
|
TC86P-1-503TRIMMER 50K OHM 0.3W PC PIN TOP |
2,573 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 50 kOhms | 0.3W | ±250ppm/°C | 1.0 | Top Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
|
|
TC86P-1-104TRIMMER 100K OHM 0.3W PC PIN TOP |
4,728 |
|
Datasheet |
Trimpot® TC86 - Open Frame | Bulk | Obsolete | 100 kOhms | 0.3W | ±250ppm/°C | 1.0 | Top Adjustment | ±20% | Cermet | Through Hole | PC Pins | Rectangular - 0.303" x 0.268" Face (7.70mm x 6.80mm) |
