Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Capacitance Range | Adjustment Type | Dielectric Material | Q @ Freq | Size / Dimension | Voltage - Rated | Height - Seated (Max) | Operating Temperature | Mounting Style | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CV31D350CAP TRIMMER 9-35PF 200V TH |
1,616 |
|
Datasheet |
538 | Tray | Active | 9 ~ 35pF | Top | Ceramic | 500 @ 1MHz | 0.370" Dia (9.40mm) | 200 V | 0.310" (7.87mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
CV31E600CAP TRIMMER 15-60PF 200V TH |
4,201 |
|
Datasheet |
538 | Tray | Active | 15 ~ 60pF | Top | Ceramic | 500 @ 1MHz | 0.375" Dia (9.53mm) | 200 V | 0.275" (6.99mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
CV35A090CAP TRIMMER 2.5-9PF 100V TH |
3,156 |
|
Datasheet |
518 | Tray | Obsolete | 2.5 ~ 9pF | Top | Ceramic | 500 @ 1MHz | 0.218" Dia (5.54mm) | 100 V | 0.145" (3.68mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
CV35A200CAP TRIMMER 3.5-20PF 100V TH |
2,177 |
|
Datasheet |
518 | Tray | Obsolete | 3.5 ~ 20pF | Top | Ceramic | 500 @ 1MHz | 0.218" Dia (5.54mm) | 100 V | 0.145" (3.68mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
CV35A250CAP TRIMMER 5-25PF 100V TH |
4,420 |
|
Datasheet |
518 | Tray | Obsolete | 5 ~ 25pF | Top | Ceramic | 500 @ 1MHz | 0.218" Dia (5.54mm) | 100 V | 0.145" (3.68mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|

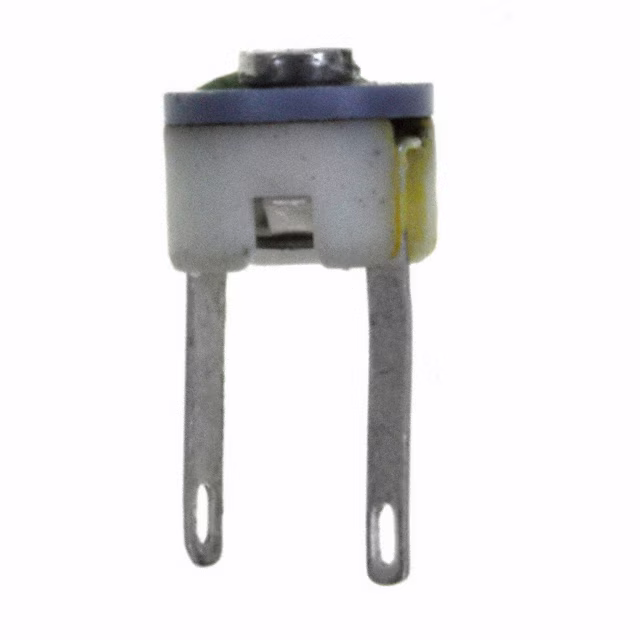

CV35C400CAP TRIMMER 7-40PF 100V TH |
2,570 |
|
Datasheet |
518 | Tray | Obsolete | 7 ~ 40pF | Top | Ceramic | 500 @ 1MHz | 0.218" Dia (5.54mm) | 100 V | 0.145" (3.68mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
TZB4P300AA10B00CAP TRIMMER 6.5-30PF 100V SMD |
2,590 |
|
Datasheet |
TZB4 | Bulk | Obsolete | 6.5 ~ 30pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4P300AB10B00CAP TRIMMER 6.5-30PF 100V SMD |
4,238 |
|
Datasheet |
TZB4 | Bulk | Obsolete | 6.5 ~ 30pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4P300BA10B00CAP TRIMMER 6.5-30PF 100V SMD |
4,424 |
|
Datasheet |
TZB4 | Bulk | Obsolete | 6.5 ~ 30pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZB4P300BB10R00CAP TRIMMER 6.5-30PF 100V SMD |
4,405 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 6.5 ~ 30pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4P300EA10R00CAP TRIMMER 6.5-30PF 100V SMD |
3,755 |
|
Datasheet |
TZB4 | Bulk | Obsolete | 6.5 ~ 30pF | Bottom Adjustment | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4P400AA10B00CAP TRIMMER 8.5-40PF 100V SMD |
4,562 |
|
Datasheet |
TZB4 | Bulk | Obsolete | 8.5 ~ 40pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4P400AB10B00CAP TRIMMER 8.5-40PF 100V SMD |
2,542 |
|
Datasheet |
TZB4 | Bulk | Obsolete | 8.5 ~ 40pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4P400BA10B00CAP TRIMMER 8.5-40PF 100V SMD |
2,026 |
|
Datasheet |
TZB4 | Bulk | Obsolete | 8.5 ~ 40pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4P400BB10B00CAP TRIMMER 8.5-40PF 100V SMD |
1,506 |
|
Datasheet |
TZB4 | Bulk | Obsolete | 8.5 ~ 40pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZB4P400BB10R00CAP TRIMMER 8.5-40PF 100V SMD |
4,449 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 8.5 ~ 40pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4R200AB10B00CAP TRIMMER 4.5-20PF 100V SMD |
4,730 |
|
Datasheet |
TZB4 | Bulk | Obsolete | 4.5 ~ 20pF | Top | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4R200BA10B00CAP TRIMMER 4.5-20PF 100V SMD |
1,303 |
|
Datasheet |
TZB4 | Bulk | Obsolete | 4.5 ~ 20pF | Top | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4R200BB10B00CAP TRIMMER 4.5-20PF 100V SMD |
3,326 |
|
Datasheet |
TZB4 | Bulk | Obsolete | 4.5 ~ 20pF | Top | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4R200EA10R00CAP TRIMMER 4.5-20PF 100V SMD |
3,723 |
|
Datasheet |
TZB4 | Bulk | Obsolete | 4.5 ~ 20pF | Bottom Adjustment | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
