Wire Wrap
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Wire Gauge | Conductor Diameter | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Conductor Material | Length | Conductor Plating | Jacket Color | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R-30-TRIWIRE WW 30AWG PVDF MULTIPLE 50' |
2,486 |
|
Datasheet |
WD-30 | Roll | Obsolete | 30 AWG | 0.010" (0.25mm) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | 50' (15.24m) | Silver | Multiple | UL Style 1423, VW-1 | - |
|
KSW26BLK-0100WIRE 26AWG BLACK 100 FT CSW |
4,661 |
|
Datasheet |
KSW | Roll | Active | 26 AWG | 0.016" (0.40mm) | Polyvinylidene Fluoride (PVDF) | 0.027" (0.69mm) | Copper, Bare | 100' (30.5m) | Silver | Black | UL Style 1422 | - |
|
KSW26R-0100WIRE 26AWG RED 100 FT CSW |
2,847 |
|
Datasheet |
KSW | Roll | Active | 26 AWG | 0.016" (0.40mm) | Polyvinylidene Fluoride (PVDF) | 0.027" (0.69mm) | Copper, Bare | 100' (30.5m) | Silver | Red | UL Style 1422 | - |
|

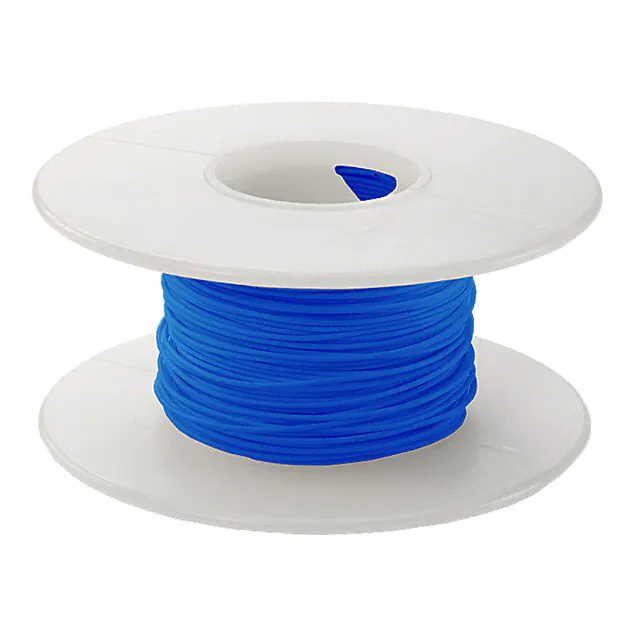

KSW26B-0100WIRE WW 26AWG PVDF BLUE 100' |
3,251 |
|
Datasheet |
KSW | Roll | Active | 26 AWG | 0.016" (0.40mm) | Polyvinylidene Fluoride (PVDF) | 0.027" (0.69mm) | Copper, Bare | 100' (30.5m) | Silver | Blue | UL Style 1422 | - |
|
KSW28B-0100WIRE 28AWG BLUE 100 FT CSW |
2,715 |
|
Datasheet |
KSW | Roll | Active | 28 AWG | 0.013" (0.32mm) | Polyvinylidene Fluoride (PVDF) | 0.024" (0.61mm) | Copper, Bare | 100' (30.5m) | Silver | Blue | UL Style 1423 | - |
|
KSW28BLK-0100WIRE 28AWG BLACK 100 FT CSW |
2,822 |
|
Datasheet |
KSW | Roll | Active | 28 AWG | 0.013" (0.32mm) | Polyvinylidene Fluoride (PVDF) | 0.024" (0.61mm) | Copper, Bare | 100' (30.5m) | Silver | Black | UL Style 1423 | - |
|
KSW28R-0100WIRE 28AWG RED 100 FT CSW |
4,968 |
|
Datasheet |
KSW | Roll | Active | 28 AWG | 0.013" (0.32mm) | Polyvinylidene Fluoride (PVDF) | 0.024" (0.61mm) | Copper, Bare | 100' (30.5m) | Silver | Red | UL Style 1423 | - |
|
KSW24BLK-0100WIRE 24 AWG BLACK 100 FT CSW |
3,374 |
|
Datasheet |
KSW | Roll | Active | 24 AWG | 0.019" (0.50mm) | Polyvinylidene Fluoride (PVDF) | 0.030" (0.76mm) | Copper, Bare | 100' (30.5m) | Silver | Black | UL Style 1422 | - |
|
KSW24B-0100WIRE 24 AWG BLUE 100 FT CSW |
3,407 |
|
Datasheet |
KSW | Roll | Active | 24 AWG | 0.019" (0.50mm) | Polyvinylidene Fluoride (PVDF) | 0.030" (0.76mm) | Copper, Bare | 100' (30.5m) | Silver | Blue | UL Style 1422 | - |
|
KSW24R-0100WIRE 24 AWG RED 100 FT CSW |
4,968 |
|
Datasheet |
KSW | Roll | Active | 24 AWG | 0.019" (0.50mm) | Polyvinylidene Fluoride (PVDF) | 0.030" (0.76mm) | Copper, Bare | 100' (30.5m) | Silver | Red | UL Style 1422 | - |
|
W28-6HWIRE WW 28AWG ETFE BLU 50' 2/PK |
1,717 |
|
Datasheet |
Slit-N-Wrap® | Spool | Active | 28 AWG | 0.013" (0.32mm) | Ethylene Tetrafluoroethylene (ETFE) | 0.023" (0.58mm) | Copper, Bare | 50' (15.24m) | Silver | Black | - | - |
|
W28-6FWIRE WW 28AWG ETFE BLK 50' 2/PK |
4,682 |
|
Datasheet |
Slit-N-Wrap® | Spool | Active | 28 AWG | 0.013" (0.32mm) | Ethylene Tetrafluoroethylene (ETFE) | 0.023" (0.58mm) | Copper, Bare | 50' (15.24m) | Silver | Yellow | UL Style 1516/1523 | - |
|
|
W28-6BWIRE WW 28AWG ETFE YEL 50' 2/PK |
1,261 |
|
Datasheet |
Slit-N-Wrap® | Spool | Active | 28 AWG | 0.013" (0.32mm) | Ethylene Tetrafluoroethylene (ETFE) | 0.023" (0.58mm) | Copper, Bare | 50' (15.24m) | Silver | Red | UL Style 1516/1523 | - |
|
KSW30R-1000WIRE WW 30AWG PVDF RED 1000' |
3,258 |
|
Datasheet |
KSW | Roll | Active | 30 AWG | 0.010" (0.25mm) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | 1000' (304.80m) | Silver | Red | UL Style 1423 | - |
|
KSW30Y-1000WIRE WW 30AWG PVDF YELLOW 1000' |
3,510 |
|
Datasheet |
KSW | Roll | Active | 30 AWG | 0.010" (0.25mm) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | 1000' (304.80m) | Silver | Yellow | UL Style 1423 | - |
|
|
W30-5ASWIRE WW 30AWG PVDF GREEN 300' |
2,773 |
|
Datasheet |
Slit-N-Wrap® | Spool | Obsolete | 30 AWG | - | Polyvinylidene Fluoride (PVDF) | - | Copper, Bare | 300' (91.44m) | Silver | Green | - | - |
|
|
W30-5FSWIRE WW 30AWG PVDF YELLOW 300' |
2,336 |
|
Datasheet |
Slit-N-Wrap® | Spool | Obsolete | 30 AWG | - | Polyvinylidene Fluoride (PVDF) | - | Copper, Bare | 300' (91.44m) | Silver | Yellow | - | - |
|
|
W30-5BWIRE WW 30AWG PVDF RED 75' |
2,362 |
|
Datasheet |
Slit-N-Wrap® | Spool | Obsolete | 30 AWG | - | Polyvinylidene Fluoride (PVDF) | - | Copper, Bare | 75' (22.86m) | Silver | Red | - | - |
|
|
W30-5AWIRE WW 30AWG PVDF GREEN 75' |
3,801 |
|
Datasheet |
Slit-N-Wrap® | Spool | Obsolete | 30 AWG | - | Polyvinylidene Fluoride (PVDF) | - | Copper, Bare | 75' (22.86m) | Silver | Green | - | - |
