Wireless Charging Coils

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Function	Type	Tolerance	DC Resistance (DCR)	Q @ Freq	Inductance	Current Rating (Amps)	Current - Saturation (Isat)	Frequency - Self Resonant	Operating Temperature	Size / Dimension
WT252512-8F2-SM TX 1 COIL 1 LYR 2.76UH TDK Corporation	1,645	-	RFQ Sell Excess Inventory	Datasheet	WT	Tray	Active	Transmitter	1 Coil, 1 Layer	±5%	70mOhm	-	2.76µH	-	-	-	-	0.98" Dia x 0.08" H (25.0mm x 2.1mm)
WT242490-30F2-G TX 1 COIL 2 LYR 12.9UH TDK Corporation	275	-	RFQ Sell Excess Inventory	Datasheet	WT	Tray	Active	Transmitter	1 Coil, 2 Layer	±10%	165mOhm	-	12.9µH	-	-	-	-	0.97" Dia x 0.09" H (24.5mm x 2.4mm)
WR282840-37K2-LR3 RX 1 COIL 1 LYR 46UH TDK Corporation	608	-	RFQ Sell Excess Inventory	Datasheet	WR	Tray	Active	Receiver	1 Coil, 1 Layer	-	1.25Ohm	-	46µH	-	-	-	-	-
WR424245-13K2-G RX 1 COIL, 1 LYR 11.9UH TDK Corporation	10,269	-	RFQ Sell Excess Inventory	Datasheet	WR	Tray	Active	Receiver	1 Coil, 1 Layer	-	220mOhm	-	11.9µH	-	-	-	-	1.65" L x 1.65" W x 0.04" H (42.0mm x 42.0mm x 0.9mm)
WRSC-13R0K-26 WIRELESS CHARGE COIL 13.0UH 2.0A Signal Transformer	114	-	RFQ Sell Excess Inventory	Datasheet	WRSC	Bulk	Active	Transmitter	1 Coil, 4 Layer	±10%	500mOhm	17 @ 125kHz	13µH	800mA	2A	-	-25°C ~ 105°C	0.41" Dia x 0.07" H (10.3mm x 1.9mm)
WRSC-7R2K-32 WIRELESS CHARGE COIL 7.2UH 0.80A Signal Transformer	121	-	RFQ Sell Excess Inventory	Datasheet	WRSC	Bulk	Active	Transmitter	1 Coil, 4 Layer	±10%	440mOhm Max	10 @ 125kHz	7.2µH	500mA	1A	-	-25°C ~ 105°C	0.24" Dia x 0.08" H (6.0mm x 2.0mm)
WT505090-10F2-A11-G1 TX 1 COIL, 1 LYR 6.3UH TDK Corporation	133	-	RFQ Sell Excess Inventory	Datasheet	WT	Bulk	Active	Transmitter	1 Coil, 1 Layer	-	60mOhm	-	6.3µH	-	-	-	-	2.02" Dia x 0.13" H (51.4mm x 3.4mm)

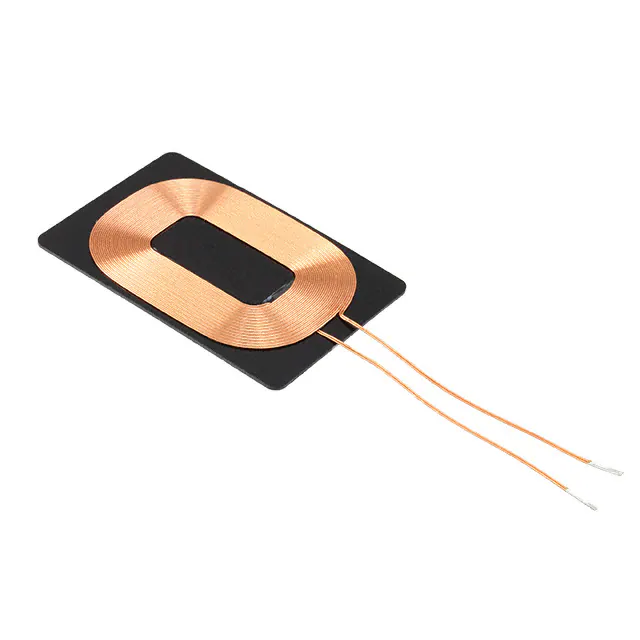

WR483265-15F5-G RX 1 COIL 1 LYR 13.3UH TDK Corporation	664	-	RFQ Sell Excess Inventory	Datasheet	WR	Tray	Active	Receiver	1 Coil, 1 Layer	-	200mOhm	-	13.3µH	1.87A	-	-	-	1.89" L x 1.27" W x 0.04" H (48.2mm x 32.2mm x 1.2mm)
760308103204 RX 1 COIL 1 LAYER 16.7UH 1A Würth Elektronik	201	-	RFQ Sell Excess Inventory	Datasheet	WE-WPCC	Tray	Active	Receiver	1 Coil, 1 Layer	±10%	430mOhm	32 @ 125kHz	16.7µH	1A	4A	11MHz	-20°C ~ 105°C	1.52" L x 1.20" W x 0.03" H (38.5mm x 30.5mm x 0.83mm)
WRSC-26R0K-11 WIRELESS CHARGE COIL 26.0UH 2.0A Signal Transformer	126	-	RFQ Sell Excess Inventory	Datasheet	WRSC	Bulk	Active	Transmitter	1 Coil, 3 Layer	±10%	520mOhm	25 @ 125kHz	26µH	1.1A	2A	-	-25°C ~ 105°C	0.75" Dia x 0.03" H (19.0mm x 0.8mm)
760308101219 RX 1 COIL 1 LAYER 11.8UH 700MA Würth Elektronik	139	-	RFQ Sell Excess Inventory	Datasheet	WE-WPCC	Box	Active	Receiver	1 Coil, 1 Layer	±10%	750mOhm Max	13 @ 125kHz	11.8µH	700mA	1.5A	22MHz	-20°C ~ 105°C	0.59" Dia x 0.02" H (15.0mm x 0.6mm)

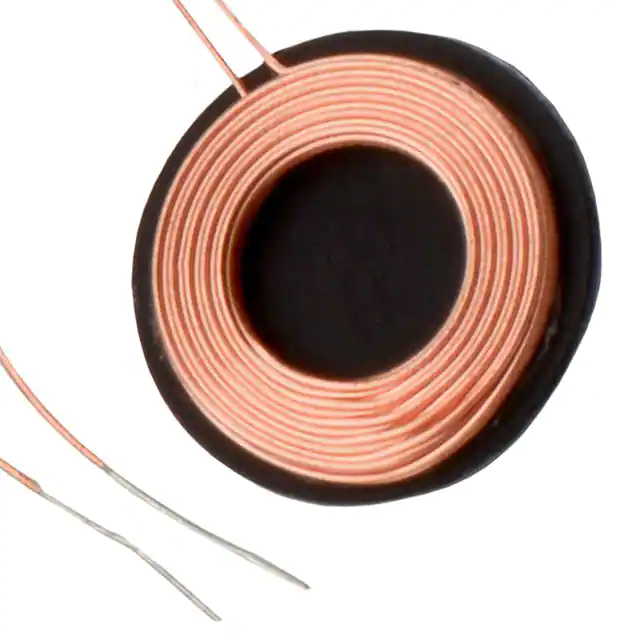

760308101208A RX 1 COIL 3 LAYER 18UH 700MA Würth Elektronik	158	-	RFQ Sell Excess Inventory	Datasheet	WE-WPCC	Tray	Active	Receiver	1 Coil, 3 Layer	±10%	650mOhm Max	18 @ 125kHz	18µH	700mA	2A	24MHz	-20°C ~ 105°C	0.39" Dia x 0.07" H (10.0mm x 1.7mm)
WRSC-47R0K-08 WIRELESS CHARGE COIL 47.0UH 3.0A Signal Transformer	205	-	RFQ Sell Excess Inventory	Datasheet	WRSC	Bulk	Active	Transmitter	1 Coil, 3 Layer	±10%	500mOhm	25 @ 125kHz	47µH	1.5A	3A	-	-25°C ~ 105°C	1.02" Dia x 0.05" H (26.0mm x 1.3mm)

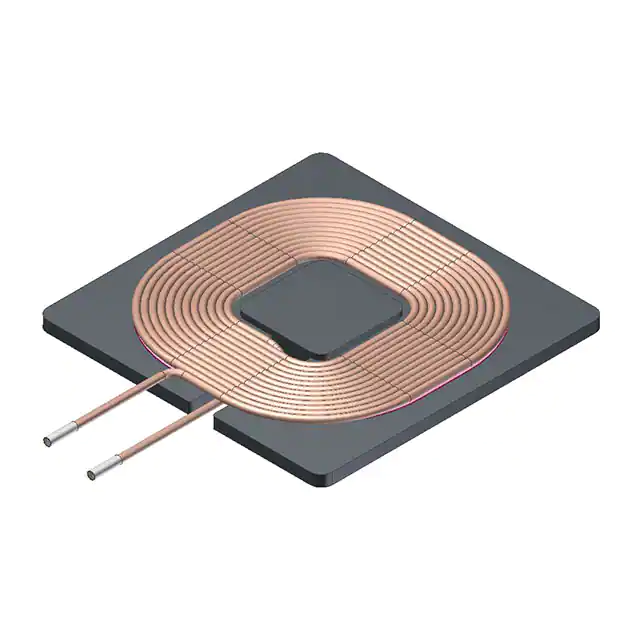

WT525225-12F2-MA2-G TX 1 COIL, 1 LYR 10.5UH TDK Corporation	349	-	RFQ Sell Excess Inventory	Datasheet	WT	Tray	Active	Transmitter	1 Coil, 1 Layer	-	60mOhm	-	10.5µH	-	-	-	-	2.05" L x 2.05" W x 0.15" H (52.0mm x 52.0mm x 3.7mm)
760308101309 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	339	-	RFQ Sell Excess Inventory	Datasheet	WE-WPCC	Bulk	Active	Receiver	1 Coil, 1 Layer	±10%	450mOhm	20 @ 125kHz	10µH	1.5A	5A	19MHz	-20°C ~ 105°C	1.035" Dia x 0.019" H (26.30mm x 0.49mm)
760308102207 RX 1 COIL 1 LYR BIFILAR 8UH 5A Würth Elektronik	342	-	RFQ Sell Excess Inventory	Datasheet	WE-WPCC	Box	Active	Receiver	1 Coil, 1 Layer, Bifilar	±10%	60mOhm	30 @ 125kHz	8µH	5A	10A	16MHz	-20°C ~ 105°C	1.57" L x 1.57" W x 0.13" H (40.0mm x 40.0mm x 3.3mm)
760308101208 RX 1 COIL 3 LAYER 13UH 0.8A Würth Elektronik	154	-	RFQ Sell Excess Inventory	Datasheet	WE-WPCC	Box	Active	Receiver	1 Coil, 3 Layer	±10%	400mOhm	17 @ 125kHz	13µH	0.8A	2A	26MHz	-20°C ~ 105°C	0.39" Dia x 0.07" H (10.0mm x 1.7mm)
760308101103 TX 1 COIL 1 LAYER 6.5UH 3A Würth Elektronik	1,858	-	RFQ Sell Excess Inventory	Datasheet	WE-WPCC	Box	Active	Transmitter	1 Coil, 1 Layer	±10%	180mOhm Max	35 @ 125kHz	6.5µH	3A	8A	20MHz	-20°C ~ 105°C	1.18" L x 1.18" W x 0.07" H (30.0mm x 30.0mm x 1.9mm)
760308101303 RX 1 COIL 3 LYR BIFILAR 47UH Würth Elektronik	1,286	-	RFQ Sell Excess Inventory	Datasheet	WE-WPCC	Box	Active	Receiver	1 Coil, 3 Layer, Bifilar	±10%	460mOhm	25 @ 125kHz	47µH	1.5A	3A	8MHz	-20°C ~ 105°C	1.02" L x 1.02" W x 0.05" H (26.0mm x 26.0mm x 1.3mm)
760308100110 TX 1 COIL 2 LAYER 24UH 6A Würth Elektronik	554	-	RFQ Sell Excess Inventory	Datasheet	WE-WPCC	Box	Active	Transmitter	1 Coil, 2 Layer	±10%	70mOhm	180 @ 125kHz	24µH	6A	10A	5MHz	-20°C ~ 105°C	1.97" Dia x 0.24" H (50.0mm x 6.0mm)
