The DRV135UA/2K5 from Texas Instruments is a high-performance differential audio line driver that converts single-ended input signals into balanced outputs. It is designed for professional and high-fidelity audio systems, ensuring low distortion, wide output swing, and exceptional noise immunity for demanding analog signal transmission applications.

Key Features

• Balanced Output for noise-resistant audio transmission
• Ultra-low distortion: 0.0005% at 1 kHz
• Wide output swing: ±17 Vrms into 600 Ω loads
• High slew rate: 15 V/µs for accurate transient response
• Wide supply voltage range: ±4.5 V to ±18 V
• Low quiescent current: ±5.2 mA
• High capacitive load drive capability for long cable runs
• Available in 8-pin DIP, SO-8, and SOL-16 packages
• Companion devices: INA134 and INA137 differential line receivers
• Improved replacement for SSM2142

General Description

The DRV135 and its dual version DRV134 are precision differential output amplifiers that convert unbalanced signals into balanced output pairs. These integrated audio drivers use high-performance op amps with laser-trimmed on-chip precision resistors for accurate gain and optimized common-mode rejection.

Thanks to their wide voltage swing and high output drive capability, the DRV135 family can easily drive large capacitive loads such as long audio cables. When paired with devices like the INA134 or INA137, they provide a complete, distortion-free solution for transmitting analog audio signals over long distances.

The DRV135UA/2K5 version is supplied in a compact SO-8 surface-mount package, qualified for industrial-grade operation over an extended temperature range of −40°C to +85°C. It ensures stable performance even in challenging environments, making it ideal for professional audio and industrial instrumentation systems.

Simplified Schematic

Applications

• Audio differential line drivers
• Audio mixing consoles
• Distribution and broadcast amplifiers
• Graphic and parametric equalizers
• Dynamic range and digital effects processors
• Telecommunication systems
• High-fidelity audio equipment
• Industrial and instrumentation systems

Package Information

Package Type: SOIC-8 (SO-8) Surface-Mount
Body Size (Nominal): 4.90 mm × 3.91 mm
Operating Temperature: −40°C to +85°C
Manufacturer: Texas Instruments
Part Number: DRV135UA/2K5

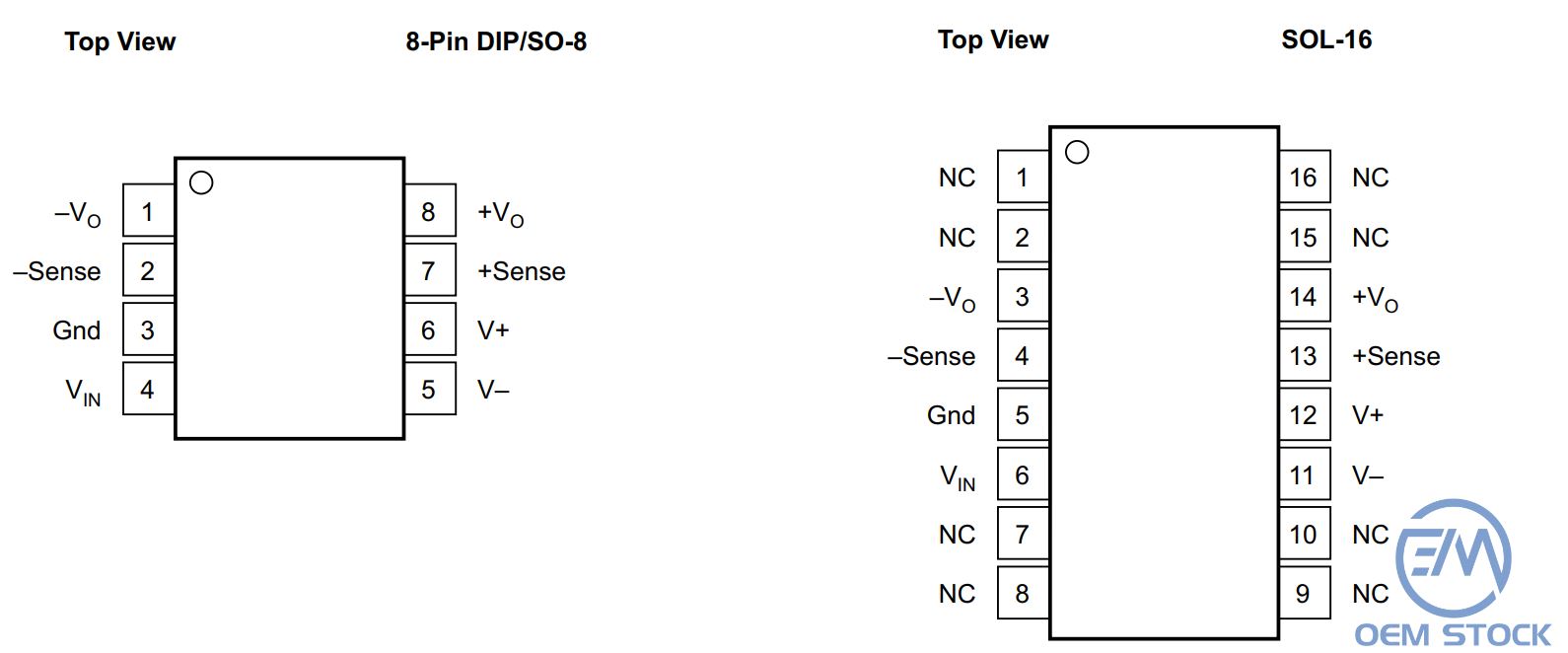

Pin Configuration and Functions

Advantages

• Converts unbalanced to balanced signals with superior CMRR
• Excellent distortion and noise characteristics for professional audio
• Compact SOIC package suitable for modern PCB layouts
• Drop-in improved replacement for older SSM2142 circuits
• Compatible with INA134 and INA137 differential receivers

FAQs

What is the DRV135 used for?

The DRV135 is designed for professional audio applications where balanced signal transmission is required, such as mixers, equalizers, and line drivers.

What are the advantages of using a balanced output driver?

Balanced outputs reduce noise and signal interference during long cable runs, ensuring cleaner audio and improved dynamic range.

What is the difference between DRV134 and DRV135?

The DRV134 provides two output channels in a 16-pin package, while the DRV135 is a single-channel device in an 8-pin SOIC package.
