Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Capacitance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Tolerance | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Size / Dimension | Ripple Current @ High Frequency | Lead Spacing | Impedance | Height - Seated (Max) | Surface Mount Land Size | Mounting Style | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESRE271M0EBCAP ALUM POLY 270UF 20% 2.5V SMD |
2,184 |
|
Datasheet |
ESRE | Bulk | Obsolete | Polymer | 270 µF | 2.5 V | 12mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3.3 A @ 100 kHz | - | - | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRE331M02BCAP ALUM POLY 330UF 20% 2V SMD |
3,817 |
|
Datasheet |
ESRE | Bulk | Obsolete | Polymer | 330 µF | 2 V | 12mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3.3 A @ 100 kHz | - | - | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
A700X227M2R5ATE0102478CAP ALUM POLY 220UF 20% 2.5V SMD |
3,534 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | 2.5 V | 10mOhm | - | ±20% | - | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700X187M004ATE0102478CAP ALUM POLY 180UF 20% 4V SMD |
1,220 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 180 µF | 4 V | 10mOhm | - | ±20% | - | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ECASD41A107M040KH0CAP ALUM POLY 100UF 20% 10V SMD |
2,498 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | 10 V | 40mOhm | 1000 Hrs @ 125°C | ±20% | -40°C ~ 125°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 1.6 A @ 100 kHz | - | - | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
VSG1C271MCB8067CAP ALUM POLY 270UF 20% 16V SMD |
3,831 |
|
Datasheet |
VSG | Active | Polymer | 270 µF | 16 V | - | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.315" Dia (8.00mm) | 3300 mA @ 100 kHz | - | - | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | ||
|
2SXE150MCAP ALUM POLY 150UF 20% 2V SMD |
2,662 |
|
Datasheet |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | 2 V | 9mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3 A @ 100 kHz | - | - | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
6SXE68MCAP ALUM POLY 68UF 20% 6.3V SMD |
4,818 |
|
Datasheet |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3 A @ 100 kHz | - | - | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ECASD40D337M006KA0CAP ALUM POLY 330UF 20% 2V SMD |
3,106 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | 2 V | 6mOhm | 2000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3 A @ 100 kHz | - | - | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
EEF-SE0E331ERCAP ALUM POLY 330UF 20% 2.5V SMD |
4,075 |
|
Datasheet |
SP-Cap SE | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | 2.5 V | 5mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
EEF-SX0E391RCAP ALUM POLY 390UF 20% 2.5V SMD |
2,057 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Not For New Designs | Polymer | 390 µF | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.079" (2.00mm) | - | Surface Mount | |
|
PCX1V180MCS1GSCAP ALUM POLY 18UF 20% 35V SMD |
1,060 |
|
Datasheet |
PCX | Tape & Reel (TR) | Active | Polymer | 18 µF | 35 V | 60mOhm | 3000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | - | 0.315" Dia (8.00mm) | 1.1 A @ 100 kHz | - | - | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
MAL218697107E3CAP ALUM POLY 47UF 20% 50V SMD |
2,132 |
|
Datasheet |
186 CPNT | Box | Active | Polymer | 47 µF | 50 V | 30mOhm | 2000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | Automotive | - | 140 mA @ 120 Hz | 0.394" Dia (10.00mm) | 2.8 A @ 100 kHz | - | - | 0.500" (12.70mm) | - | Surface Mount | |
|
UPC1C681MNN0811F3CAP ALUM POLY 680UF 20% 16V TH |
2,479 |
|
Datasheet |
UPC | Active | Polymer | 680 µF | 16 V | 14mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.315" Dia (8.00mm) | 4.9 A @ 100 kHz | 0.138" (3.50mm) | - | 0.492" (12.50mm) | - | Through Hole | ||
|
|
2.5SXE150MCAP ALUM POLY 150UF 20% 2.5V SMD |
1,000 |
|
Datasheet |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3 A @ 100 kHz | - | - | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|

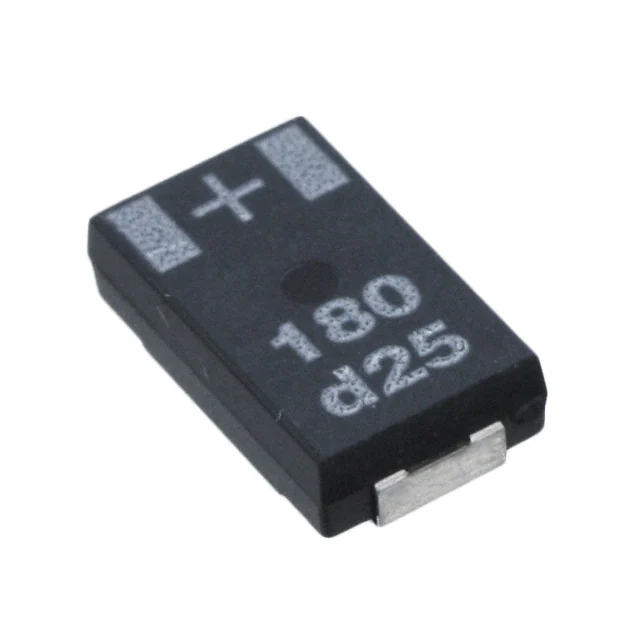

2SXE180MCAP ALUM POLY 180UF 20% 2V SMD |
4,561 |
|
Datasheet |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | 2 V | 9mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3 A @ 100 kHz | - | - | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ECASD31E156M040KH0CAP ALUM POLY 15UF 20% 25V SMD |
2,808 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 15 µF | 25 V | 40mOhm | 1000 Hrs @ 125°C | ±20% | -40°C ~ 125°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 1.6 A @ 100 kHz | - | - | 0.059" (1.50mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
2.5SXB150MCAP ALUM POLY 150UF 20% 2.5V SMD |
3,356 |
|
Datasheet |
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | 2.5 V | 13mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3 A @ 100 kHz | - | - | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
PCH1H181MCL1GSCAP ALUM POLY 180UF 20% 50V SMD |
3,356 |
|
Datasheet |
PCH | Tape & Reel (TR) | Active | Polymer | 180 µF | 50 V | 19mOhm | 4000 Hrs @ 135°C | ±20% | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 125 mA @ 120 Hz | 0.394" Dia (10.00mm) | 2.5 A @ 100 kHz | - | - | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEF-SX0D391RCAP ALUM POLY 390UF 20% 2V SMD |
1,714 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Not For New Designs | Polymer | 390 µF | 2 V | 9mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.079" (2.00mm) | - | Surface Mount |
