Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Capacitance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Tolerance | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Size / Dimension | Ripple Current @ High Frequency | Lead Spacing | Impedance | Height - Seated (Max) | Surface Mount Land Size | Mounting Style | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A700X277M002ATE012CAP ALUM POLY 270UF 20% 2V SMD |
2,128 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 270 µF | 2 V | 12mOhm | 2000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700X227M2R5ATE010CAP ALUM POLY 220UF 20% 2.5V SMD |
3,904 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | 2.5 V | 10mOhm | 2000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700X277M004ATE010CAP ALUM POLY 270UF 20% 4V SMD |
4,136 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 270 µF | 4 V | 10mOhm | 2000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700X157M006ATE012CAP ALUM POLY 150UF 20% 6.3V SMD |
3,970 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 150 µF | 6.3 V | 12mOhm | 2000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700X157M006ATE0152478CAP ALUM POLY 150UF 20% 6.3V SMD |
2,443 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 150 µF | 6.3 V | 15mOhm | - | ±20% | - | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700X157M006ATE0107622CAP ALUM POLY 150UF 20% 6.3V SMD |
3,303 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 150 µF | 6.3 V | 10mOhm | - | ±20% | - | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|

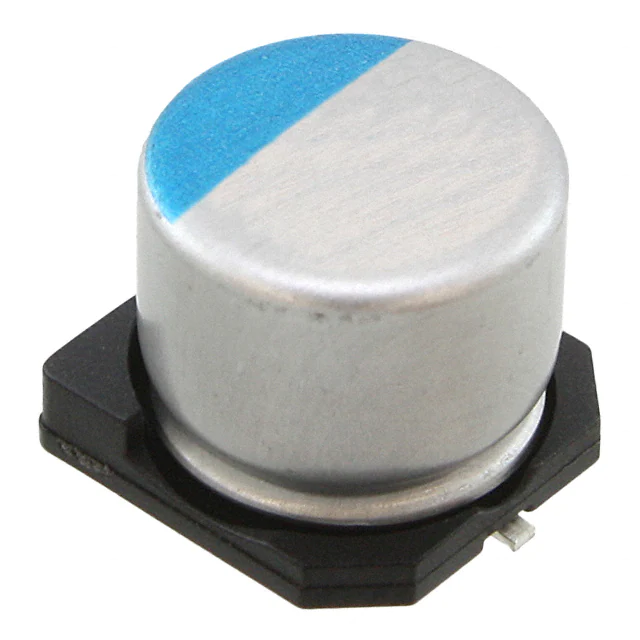

PVM-10V221MG70E-R2CAP ALUM POLY 220UF 20% 10V SMD |
4,186 |
|
Datasheet |
PVM | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | 10 V | 21mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.315" Dia (8.00mm) | 3.22 A @ 100 kHz | - | - | 0.276" (7.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | |
|
|
PVM-10V271MG70E-R2CAP ALUM POLY 270UF 20% 10V SMD |
2,024 |
|
Datasheet |
PVM | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | 10 V | 21mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.315" Dia (8.00mm) | 3.22 A @ 100 kHz | - | - | 0.276" (7.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | |
|
ECASD41E106M040KA0CAP ALUM POLY 10UF 20% 25V SMD |
4,560 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 10 µF | 25 V | 40mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 1.6 A @ 100 kHz | - | - | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700X107M12RATE0157280CAP ALUM POLY 100UF 20% 12.5V |
3,728 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | 12.5 V | 15mOhm | - | ±20% | - | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
EEF-UD0E331RCAP ALUM POLY 330UF 20% 2.5V SMD |
3,963 |
|
Datasheet |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
PLE0G681MDO1CAP ALUM POLY 680UF 20% 4V TH |
3,628 |
|
Datasheet |
PLE | Bulk | Not For New Designs | Polymer | 680 µF | 4 V | 5mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.315" Dia (8.00mm) | 6.5 A @ 100 kHz | 0.138" (3.50mm) | - | 0.472" (12.00mm) | - | Through Hole | |
|
MAL218597005E3CAP ALUM POLY 100UF 20% 35V SMD |
1,255 |
|
Datasheet |
185 CPNZ | Box | Active | Polymer | 100 µF | 35 V | 30mOhm | 5000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 155 mA @ 120 Hz | 0.394" Dia (10.00mm) | 3.1 A @ 100 kHz | - | - | 0.500" (12.70mm) | - | Surface Mount | |
|
MAL218697006E3CAP ALUM POLY 100UF 20% 35V SMD |
2,391 |
|
Datasheet |
186 CPNT | Box | Active | Polymer | 100 µF | 35 V | 30mOhm | 2000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | Automotive | - | 155 mA @ 120 Hz | 0.394" Dia (10.00mm) | 3.1 A @ 100 kHz | - | - | 0.500" (12.70mm) | - | Surface Mount | |
|
A700V686M004ATE020CAP ALUM POLY 68UF 20% 4V SMD |
3,191 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 68 µF | 4 V | 20mOhm | 2000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3.7 A @ 100 kHz | - | - | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
PLE0G122MDO1TDCAP ALUM POLY 1200UF 20% 4V TH |
3,780 |
|
Datasheet |
PLE | Cut Tape (CT) | Obsolete | Polymer | 1200 µF | 4 V | 5mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.394" Dia (10.00mm) | 7.2 A @ 100 kHz | 0.197" (5.00mm) | - | 0.512" (13.00mm) | - | Through Hole | |
|
|
ECASD41E156M040KA0CAP ALUM POLY 15UF 20% 25V SMD |
4,330 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 15 µF | 25 V | 40mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 1.6 A @ 100 kHz | - | - | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700V477M002ATE005CAP ALUM POLY 470UF 20% 2V SMD |
1,311 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Discontinued | Polymer | 470 µF | 2 V | 5mOhm | - | ±20% | - | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.083" (2.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
MAL218497805E3CAP ALUM POLY 33UF 20% 63V SMD |
4,566 |
|
Datasheet |
184 CPNS | Box | Active | Polymer | 33 µF | 63 V | 30mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 0.394" Dia (10.00mm) | 2.5 A @ 100 kHz | - | - | 0.500" (12.70mm) | - | Surface Mount | |
|
|
A700X277M002ATE010CAP ALUM POLY 270UF 20% 2V SMD |
1,895 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 270 µF | 2 V | 10mOhm | 2000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
