Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Capacitance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Tolerance | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Size / Dimension | Ripple Current @ High Frequency | Lead Spacing | Impedance | Height - Seated (Max) | Surface Mount Land Size | Mounting Style | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCH1C561MCL1GSCAP ALUM POLY 560UF 20% 16V SMD |
2,136 |
|
Datasheet |
PCH | Tape & Reel (TR) | Active | Polymer | 560 µF | 16 V | 16mOhm | 4000 Hrs @ 135°C | ±20% | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 135 mA @ 120 Hz | 0.315" Dia (8.00mm) | 2.7 A @ 100 kHz | - | - | 0.492" (12.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
PCX1D560MCL1GSCAP ALUM POLY 56UF 20% 20V SMD |
1,111 |
|
Datasheet |
PCX | Tape & Reel (TR) | Active | Polymer | 56 µF | 20 V | 50mOhm | 3000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 0.315" Dia (8.00mm) | 1.3 A @ 100 kHz | - | - | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
PCR2A120MCL1GSCAP ALUM POLY 12UF 20% 100V SMD |
2,150 |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 12 µF | 100 V | 45mOhm | 4000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | - | 0.315" Dia (8.00mm) | 1.2 A @ 100 kHz | - | - | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
PLF1E560MDO2TDCAP ALUM POLY 56UF 20% 25V TH |
2,417 |
|
Datasheet |
PLF | Cut Tape (CT) | Active | Polymer | 56 µF | 25 V | 28mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.394" Dia (10.00mm) | 3.8 A @ 100 kHz | 0.197" (5.00mm) | - | 0.512" (13.00mm) | - | Through Hole | |
|
ECASD60J227M010K00CAP ALUM POLY 220UF 20% 6.3V SMD |
4,635 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | 6.3 V | 10mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3 A @ 100 kHz | - | - | 0.122" (3.10mm) | - | Surface Mount | |
|
|
ECASD40G227M009K00CAP ALUM POLY 220UF 20% 4V SMD |
2,923 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | 4 V | 9mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3 A @ 100 kHz | - | - | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
ECASD41C476M040KH0CAP ALUM POLY 47UF 20% 16V SMD |
3,713 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | 16 V | 40mOhm | 1000 Hrs @ 125°C | ±20% | -40°C ~ 125°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 1.6 A @ 100 kHz | - | - | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700X227M006ATE0107333CAP ALUM POLY 220UF 20% 6.3V SMD |
4,795 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | 6.3 V | 10mOhm | - | ±20% | - | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|

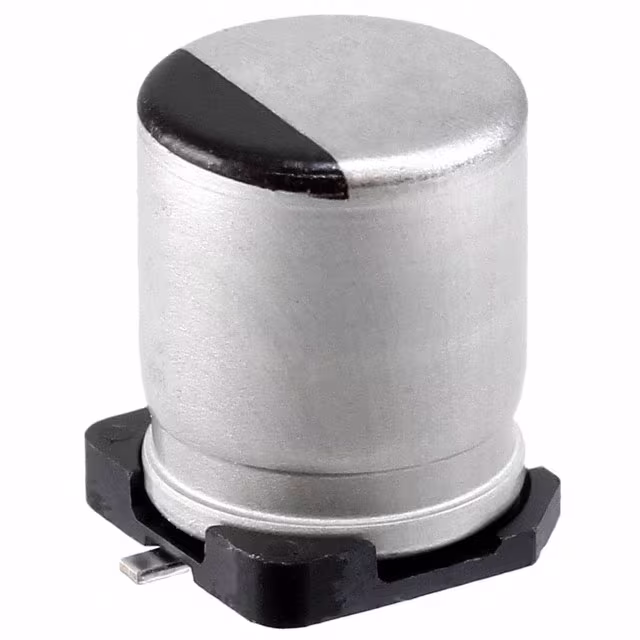

HZA226M080F24T-FCAP ALUM HYBRID 22UF 20% 80V SMD |
3,836 |
|
Datasheet |
HZA | Tape & Reel (TR) | Active | Hybrid | 22 µF | 80 V | 45mOhm | 10000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 155 mA @ 220 Hz | 0.315" Dia (8.00mm) | 1.55 A @ 100 kHz | - | - | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEF-SX0E151ERCAP ALUM POLY 150UF 20% 2.5V SMD |
3,794 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 150 µF | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 6.3 A @ 100 kHz | - | - | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
PLE0E821MCO6TDCAP ALUM POLY 820UF 20% 2.5V TH |
2,464 |
|
Datasheet |
PLE | Cut Tape (CT) | Obsolete | Polymer | 820 µF | 2.5 V | 5mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.315" Dia (8.00mm) | 6.3 A @ 100 kHz | 0.138" (3.50mm) | - | 0.354" (9.00mm) | - | Through Hole | |
|
870135375008CAP ALUM POLY 560UF 20% 16V TH |
3,940 |
|
Datasheet |
WCAP-PTHT | Cut Tape (CT) | Active | Polymer | 560 µF | 16 V | 10mOhm | 2000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | 96.45 mA @ 120 Hz | 0.394" Dia (10.00mm) | 1.929 A @ 100 kHz | 0.197" (5.00mm) | - | 0.551" (14.00mm) | - | Through Hole | |
|
|
ECASD31E226M040KH0CAP ALUM POLY 22UF 20% 25V SMD |
3,309 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | 25 V | 40mOhm | 1000 Hrs @ 125°C | ±20% | -40°C ~ 125°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 1.6 A @ 100 kHz | - | - | 0.059" (1.50mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
VSU0J331MCB6357CAP ALUM POLY 330UF 20% 6.3V SMD |
3,725 |
|
Datasheet |
VSU | Active | Polymer | 330 µF | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.248" Dia (6.30mm) | 3.9 A @ 100 kHz | - | - | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | ||
|
A700X277M002ATE015CAP ALUM POLY 270UF 20% 2V SMD |
3,697 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 270 µF | 2 V | 15mOhm | 2000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3.9 A @ 100 kHz | - | - | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700X397M002ATE015CAP ALUM POLY 390UF 20% 2V SMD |
2,311 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 390 µF | 2 V | 15mOhm | 2000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3.9 A @ 100 kHz | - | - | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700X187M004ATE018CAP ALUM POLY 180UF 20% 4V SMD |
3,463 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 180 µF | 4 V | 18mOhm | 2000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3.5 A @ 100 kHz | - | - | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700X227M2R5ATE009CAP ALUM POLY 220UF 20% 2.5V SMD |
1,383 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | 2.5 V | 9mOhm | 2000 Hrs @ 125°C | ±20% | -55°C ~ 125°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700X157M006ATE0157622CAP ALUM POLY 150UF 20% 6.3V SMD |
3,527 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 150 µF | 6.3 V | 15mOhm | - | ±20% | - | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
MAL218597006E3CAP ALUM POLY 150UF 20% 35V SMD |
4,487 |
|
Datasheet |
185 CPNZ | Box | Active | Polymer | 150 µF | 35 V | 32mOhm | 5000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 0.394" Dia (10.00mm) | 2.5 A @ 100 kHz | - | - | 0.425" (10.80mm) | - | Surface Mount |
