Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Capacitance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Tolerance | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Size / Dimension | Ripple Current @ High Frequency | Lead Spacing | Impedance | Height - Seated (Max) | Surface Mount Land Size | Mounting Style | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEF-UE0G221XECAP ALUM POLY 220UF 20% 4V SMD |
4,721 |
|
Datasheet |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | 4 V | 10mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3.5 A @ 100 kHz | - | - | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
EEF-UE0J151XECAP ALUM POLY 150UF 20% 6.3V SMD |
1,310 |
|
Datasheet |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | 6.3 V | 10mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3.5 A @ 100 kHz | - | - | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
EEF-UE0J181XECAP ALUM POLY 180UF 20% 6.3V SMD |
3,387 |
|
Datasheet |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | 6.3 V | 10mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3.5 A @ 100 kHz | - | - | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
EEF-CD0D221ERCAP ALUM POLY 220UF 20% 2V SMD |
4,005 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | 2 V | 18mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 2.5 A @ 100 kHz | - | - | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
EEF-CD0G101ERCAP ALUM POLY 100UF 20% 4V SMD |
4,866 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | 4 V | 18mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 2.5 A @ 100 kHz | - | - | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
EEF-CD0J680ERCAP ALUM POLY 68UF 20% 6.3V SMD |
3,315 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | 6.3 V | 18mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 2.5 A @ 100 kHz | - | - | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
EEF-CD0K470ERCAP ALUM POLY 47UF 20% 8V SMD |
4,976 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | 8 V | 25mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 1.8 A @ 100 kHz | - | - | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
EEF-SE0D391ERCAP ALUM POLY 390UF 20% 2V SMD |
1,937 |
|
Datasheet |
SP-Cap SE | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | 2 V | 5mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | - | - | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
EEF-SL0D121ERCAP ALUM POLY 120UF 20% 2V SMD |
1,758 |
|
Datasheet |
SP-Cap SL | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | 2 V | 9mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3 A @ 100 kHz | - | - | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
EEF-UD0D391ERCAP ALUM POLY 390UF 20% 2V SMD |
1,978 |
|
Datasheet |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | 2 V | 15mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3 A @ 100 kHz | - | - | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
EEF-UD0D391LECAP ALUM POLY 390UF 20% 2V SMD |
3,619 |
|
Datasheet |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | 2 V | 9mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3.4 A @ 100 kHz | - | - | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
EEF-UD0E271LECAP ALUM POLY 270UF 20% 2.5V SMD |
3,161 |
|
Datasheet |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | 2.5 V | 9mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3.4 A @ 100 kHz | - | - | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
EEF-UD0K101ERCAP ALUM POLY 100UF 20% 8V SMD |
3,946 |
|
Datasheet |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | 8 V | 18mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 2.5 A @ 100 kHz | - | - | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
EEF-UE0K151ERCAP ALUM POLY 150UF 20% 8V SMD |
1,248 |
|
Datasheet |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | 8 V | 15mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3 A @ 100 kHz | - | - | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
EEF-UD0J151ERCAP ALUM POLY 150UF 20% 6.3V SMD |
1,402 |
|
Datasheet |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | 6.3 V | 18mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 2.5 A @ 100 kHz | - | - | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
EEF-CD0E121ERCAP ALUM POLY 120UF 20% 2.5V SMD |
2,269 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | 2.5 V | 18mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 2.5 A @ 100 kHz | - | - | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
EEF-CD0K330ERCAP ALUM POLY 33UF 20% 8V SMD |
2,138 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 33 µF | 8 V | 18mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 2.5 A @ 100 kHz | - | - | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
EEF-CD0J220ERCAP ALUM POLY 22UF 20% 6.3V SMD |
2,884 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | 6.3 V | 40mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 1.6 A @ 100 kHz | - | - | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|

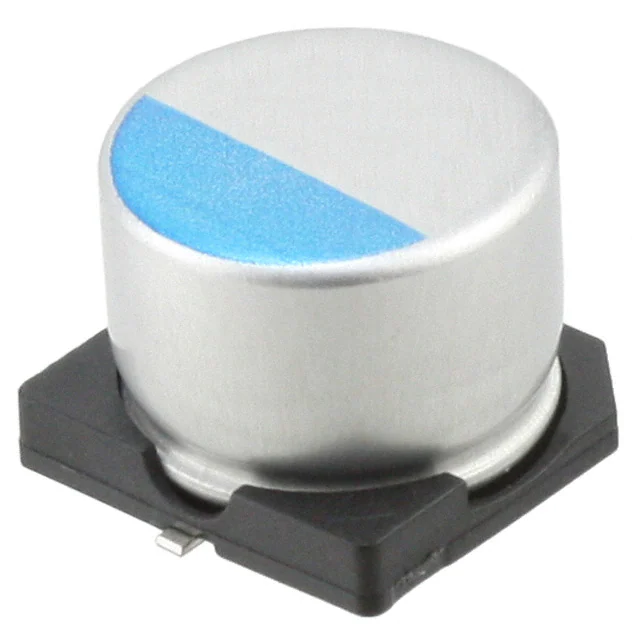

APXE4R0ARA182MJC0GCAP ALUM POLY 1800UF 20% 4V SMD |
3,008 |
|
Datasheet |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 1800 µF | 4 V | 9mOhm | 2000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | General Purpose | - | - | 0.394" Dia (10.00mm) | 5.6 A @ 100 kHz | - | - | 0.480" (12.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEF-UE0G221ERCAP ALUM POLY 220UF 20% 4V SMD |
1,388 |
|
Datasheet |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | 4 V | 12mOhm | 1000 Hrs @ 105°C | ±20% | -40°C ~ 105°C | - | General Purpose | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3.3 A @ 100 kHz | - | - | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
