Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Capacitance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Tolerance | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Size / Dimension | Ripple Current @ High Frequency | Lead Spacing | Impedance | Height - Seated (Max) | Surface Mount Land Size | Mounting Style | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

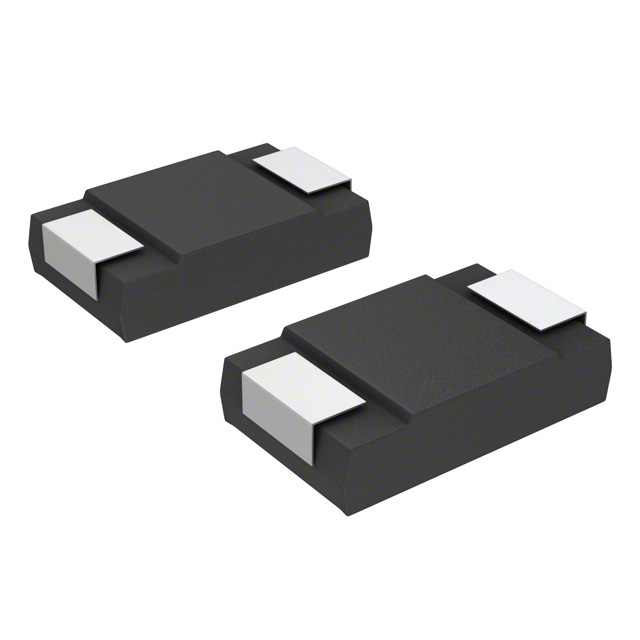

ESRD100M06RCAP ALUM POLY 10UF 20% 6.3V SMD |
4,917 |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 10 µF | 6.3 V | 55mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 1.4 A @ 100 kHz | - | - | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD100M12BCAP ALUM POLY 10UF 20% 12.5V SMD |
3,421 |
|
Datasheet |
ESRD | Bulk | Obsolete | Polymer | 10 µF | 12.5 V | 60mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 1 A @ 100 kHz | - | - | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD101M02RCAP ALUM POLY 100UF 20% 2V SMD |
1,354 |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | 2 V | 18mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 2.5 A @ 100 kHz | - | - | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD101M0EXBCAP ALUM POLY 100UF 20% 2.5V SMD |
3,508 |
|
Datasheet |
ESRD | Bulk | Obsolete | Polymer | 100 µF | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 2.7 A @ 100 kHz | - | - | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD101M0EXRCAP ALUM POLY 100UF 20% 2.5V SMD |
4,480 |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 2.7 A @ 100 kHz | - | - | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD121M02XBCAP ALUM POLY 120UF 20% 2V SMD |
2,876 |
|
Datasheet |
ESRD | Bulk | Obsolete | Polymer | 120 µF | 2 V | 15mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 2.7 A @ 100 kHz | - | - | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD121M02XRCAP ALUM POLY 120UF 20% 2V SMD |
3,942 |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | 2 V | 15mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 2.7 A @ 100 kHz | - | - | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|

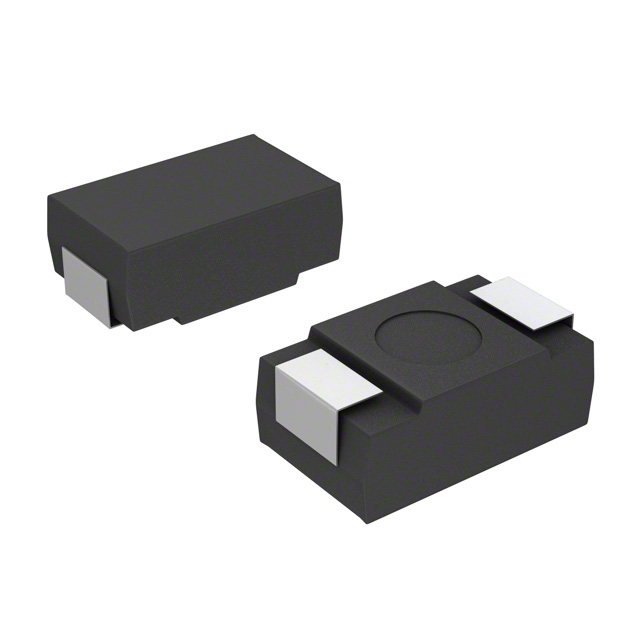

ESRD121M04RCAP ALUM POLY 120UF 20% 4V SMD |
2,081 |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | 4 V | 15mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3 A @ 100 kHz | - | - | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD121M06XRCAP ALUM POLY 120UF 20% 6.3V SMD |
1,578 |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | 6.3 V | 12mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3.3 A @ 100 kHz | - | - | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD151M04XRCAP ALUM POLY 150UF 20% 4V SMD |
4,648 |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | 4 V | 12mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3.3 A @ 100 kHz | - | - | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD151M0ERCAP ALUM POLY 150UF 20% 2.5V SMD |
1,506 |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3 A @ 100 kHz | - | - | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD181M0ERCAP ALUM POLY 180UF 20% 2.5V SMD |
4,586 |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3 A @ 100 kHz | - | - | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD220M06RCAP ALUM POLY 22UF 20% 6.3V SMD |
1,412 |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | 6.3 V | 40mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 1.6 A @ 100 kHz | - | - | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD220M08RCAP ALUM POLY 22UF 20% 8V SMD |
4,301 |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | 8 V | 28mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 2 A @ 100 kHz | - | - | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD220M12BCAP ALUM POLY 22UF 20% 12.5V SMD |
4,273 |
|
Datasheet |
ESRD | Bulk | Obsolete | Polymer | 22 µF | 12.5 V | 30mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 1.6 A @ 100 kHz | - | - | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD221M02BCAP ALUM POLY 220UF 20% 2V SMD |
3,463 |
|
Datasheet |
ESRD | Bulk | Obsolete | Polymer | 220 µF | 2 V | 15mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3 A @ 100 kHz | - | - | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD221M02RCAP ALUM POLY 220UF 20% 2V SMD |
3,493 |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | 2 V | 15mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3 A @ 100 kHz | - | - | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD221M0EXBCAP ALUM POLY 220UF 20% 2.5V SMD |
2,080 |
|
Datasheet |
ESRD | Bulk | Obsolete | Polymer | 220 µF | 2.5 V | 12mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3.3 A @ 100 kHz | - | - | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD221M0EXRCAP ALUM POLY 220UF 20% 2.5V SMD |
2,921 |
|
Datasheet |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | 2.5 V | 12mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3.3 A @ 100 kHz | - | - | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD271M02XBCAP ALUM POLY 270UF 20% 2V SMD |
3,365 |
|
Datasheet |
ESRD | Bulk | Obsolete | Polymer | 270 µF | 2 V | 12mOhm | 1000 Hrs @ 105°C | ±20% | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 3.3 A @ 100 kHz | - | - | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
