Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Style | Operating Temperature | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A31ASQ12VDC2DRELAY AUTOMOTIVE SPST 80A 12V |
758 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 150 mA | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | -40°C ~ 125°C | Quick Connect - Multiple Sizes |
|

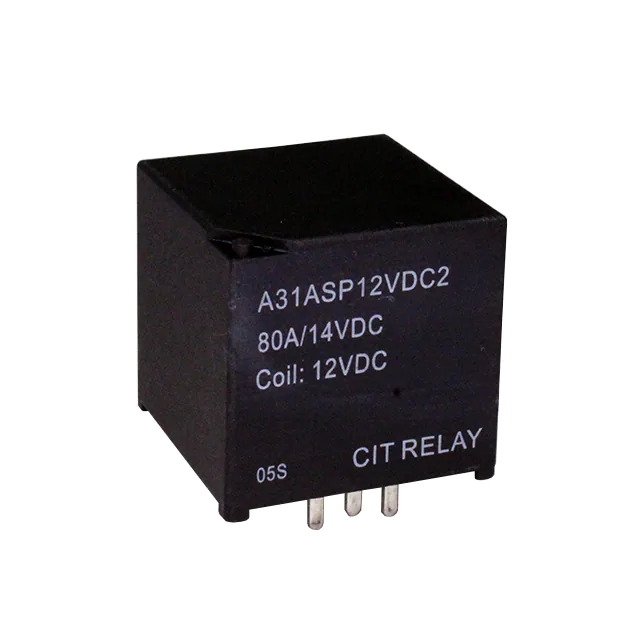

A31ASP12VDC2RRELAY AUTOMOTIVE SPST 80A 12V |
450 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 150 mA | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | -40°C ~ 125°C | PC Pin |
|
CB1AF-M-12VRELAY AUTOMOTIVE SPST 40A 12V |
886 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 117 mA | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 12VDC | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Chassis Mount | -40°C ~ 85°C | Quick Connect - 0.250" (6.3mm) |
|
CB1-WM-24VRELAY AUTOMOTIVE SPDT 20A 24V |
130 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 75 mA | SPDT (1 Form C) | 20 A | 28VDC - Nom | 24VDC | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Fully | Chassis Mount | -40°C ~ 85°C | Quick Connect - 0.250" (6.3mm) |
|
A2S1CSQ48VDC1.9RELAY AUTOMOTIVE SPDT 40A 48V |
145 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 39.6 mA | SPDT (1 Form C) | 40 A | 75VDC - Max | 48VDC | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Quick Connect - 0.250" (6.3mm) |
|

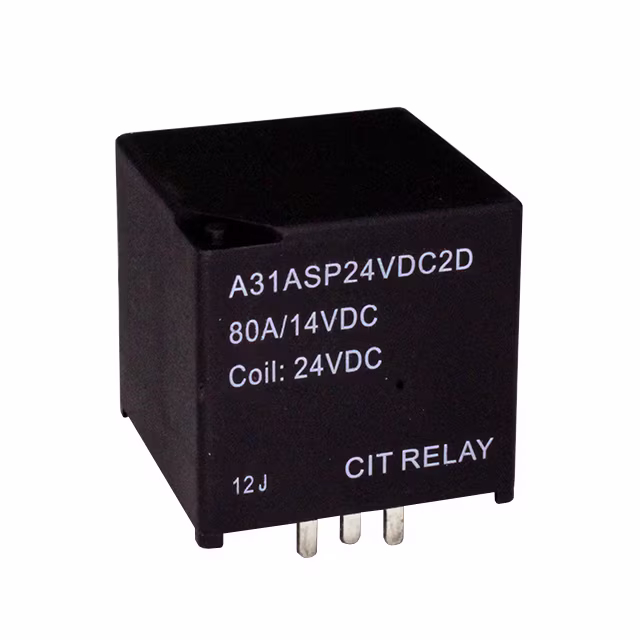

A31ASP24VDC2DRELAY AUTOMOTIVE SPST 80A 24V |
400 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 75 mA | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 24VDC | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | -40°C ~ 125°C | PC Pin |
|
A3F1ASQ24VDC2RRELAY AUTOMOTIVE SPST 80A 24V |
281 |
|
Datasheet |
A3F | Tray | Active | Non Latching | 75 mA | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 24VDC | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Quick Connect - Multiple Sizes |
|
A31ASQ24VDC2DRELAY AUTOMOTIVE SPST 80A 24V |
138 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 75 mA | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 24VDC | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | -40°C ~ 125°C | Quick Connect - Multiple Sizes |
|
AZ983-1C-12DERELAY AUTOMOTIVE SPDT 60A 12V |
1,124 |
|
Datasheet |
AZ983 | Tray | Active | Non Latching | 150 mA | SPDT (1 Form C) | 60 A | 75VDC - Max | 12VDC | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Epoxy | Through Hole | -40°C ~ 85°C | PC Pin |
|
ACNM5112SAXRELAY AUTO SPDT 30A 12V |
303 |
|
Datasheet |
ACNM | Tape & Reel (TR) | Active | Non Latching | 53.3 mA | SPDT (1 Form C) | 30 A | 14VDC - Nom | 12VDC | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Surface Mount | -40°C ~ 110°C | Gull Wing |
|
AZ980-1A-12DERELAY AUTOMOTIVE SPST 80A 12V |
832 |
|
Datasheet |
AZ980 | Tray | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 12VDC | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Epoxy, SUPER-ISO | Socketable | -40°C ~ 85°C | Plug In, Quick Connect - Multiple Sizes |
|
ACJ2112PRELAY AUTOMOTIVE SPDTX2 20A 12V |
669 |
|
Datasheet |
ACJ | Tube | Active | Non Latching | 66.7 mA | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 12VDC | 6.5 VDC | 0.8 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Through Hole | -40°C ~ 85°C | PC Pin |
|
A2K1CSQ24VDC1.6RELAY AUTOMOTIVE SPDT 120A 24V |
272 |
|
Datasheet |
A2K | Tray | Active | Non Latching | 66.7 mA | SPDT (1 Form C) | 60 A | 110VDC - Max | 24VDC | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Socketable | -40°C ~ 125°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
CB1AHF-12VRELAY AUTOMOTIVE SPST 70A 12V |
948 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 150 mA | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 12VDC | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Socketable | -40°C ~ 85°C | Plug In, Quick Connect - Multiple Sizes |
|
|
AZ980-1C-12DERELAY AUTOMOTIVE SPDT 60A 12V |
986 |
|
Datasheet |
AZ980 | Tray | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 60 A | 30VDC - Max | 12VDC | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Epoxy, SUPER-ISO | Socketable | -40°C ~ 85°C | Plug In, Quick Connect - Multiple Sizes |
|
1-1393277-7RELAY AUTOMOTIVE SPST 40A 12V |
156 |
|
Datasheet |
V23076 | Bulk | Active | Non Latching | 133 mA | SPST-NO (1 Form A) | 40 A | 12VDC - Nom | 12VDC | 6.9 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|
CB1A-R-24VRELAY AUTOMOTIVE SPST 20A 24V |
946 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 84 mA | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 24VDC | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Socketable | -40°C ~ 85°C | Plug In, Quick Connect - 0.250" (6.3mm) |
|
A31CSP12VDC2DRELAY AUTOMOTIVE SPDT 80A 12V |
503 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 150 mA | SPDT (1 Form C) | 80 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | -40°C ~ 125°C | PC Pin |
|

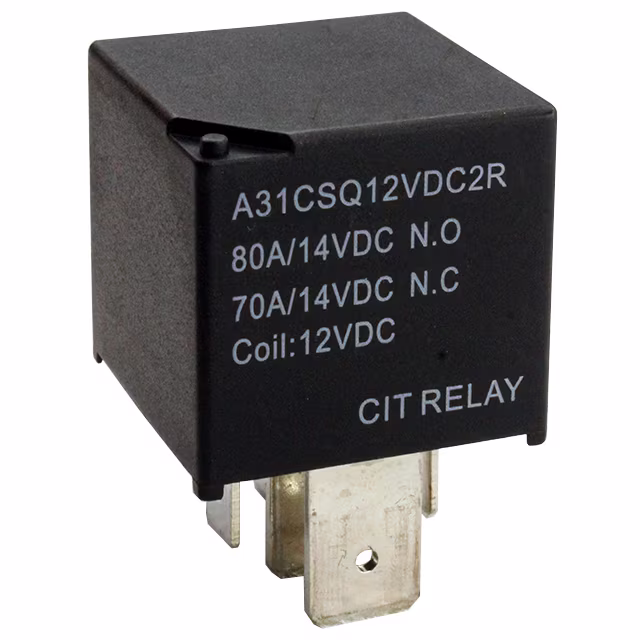

A31CSQ12VDC2RRELAY AUTOMOTIVE SPDT 80A 12V |
348 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 150 mA | SPDT (1 Form C) | 80 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Socketable | -40°C ~ 125°C | Quick Connect - Multiple Sizes |
|
A3M1CSQ12VDC2RELAY AUTOMOTIVE SPDT 80A 12V |
372 |
|
Datasheet |
A3M | Tray | Active | Non Latching | 150 mA | SPDT (1 Form C) | 80 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | -40°C ~ 125°C | Quick Connect - Multiple Sizes |
